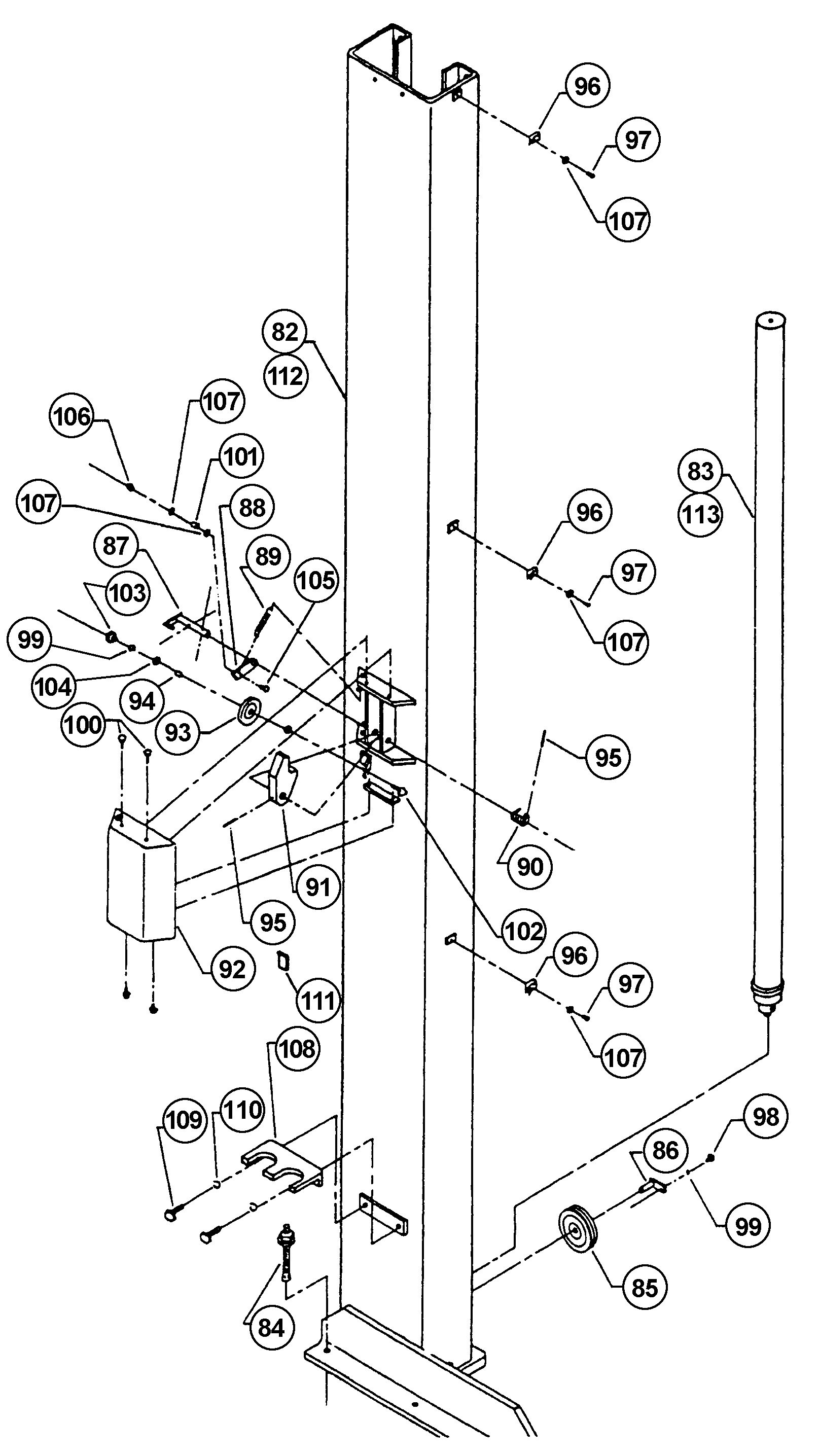

Parts for Benwil GPOA-8 Left Hand Column

Above Ground / Surface Mount 2-Post Lifts – Benwil – GPOA-8

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

82
Request Details
300776
Ref.
LH Column

83
301061
1
Hyd. Cylinder

--
501-50-1770
Seal Kit for Holmac Cyl

84
BH-7224-131
500388
Ref.
Anchor Bolt Assy.

85
300731
Ref.
Pulley

86
300835
1
Axle Lower Pulley

87
300840
1
Rel. Assy. Latch

88
300842
1
Lever Latch Actuator

89
300873
1
Spring Lock Release

90
300269
1
Spring Safety Lock

91
300807
1
Latch

92
300913
1
Cover LH Column

93
300874
Ref.
Pulley Lock Release

94
300875
1
Steel Insert Pulley

95
2
5/32" x 1-1/2" Roll Pin

96
300947
3
Clamp Cable

97
3
10-24 x 5/16" Phil. Panhd. Screw

98
1
1/4"-20 x 3/8" Hex Head Bolt

99
2
1/4" Split Lock Washer

100
4
10-24 x 1/2" Phil. Panhd. Screw

101
300844
1
Spacer-Cable Conn.

102
1
1/4"-20 x 1-1/4" Hex Head Bolt (Gr. 5)

103
1
1/4"-20 Hex Head Nut

104
2
1/4" Flat Washer (USS)

105
1
10-24 x 1" Hex Head Bolt

106
1
10-24 Hex Head Lock Nut

107
F-FW-0187
5
3/16" Flat Washer (USS or SAE)

108*
300878-3
1
Bracket-Truck Adapter

109*
2
1/4"-20 x 3/8" Hex Head Bolt

110*
2
1/4" Split Lock Washer

111
BH-7224-217
301013
1
Poly. Strip

112
Request Details
300776-1
--
LH Column

113
301061
--
Hyd. Cylinder

* Optional
