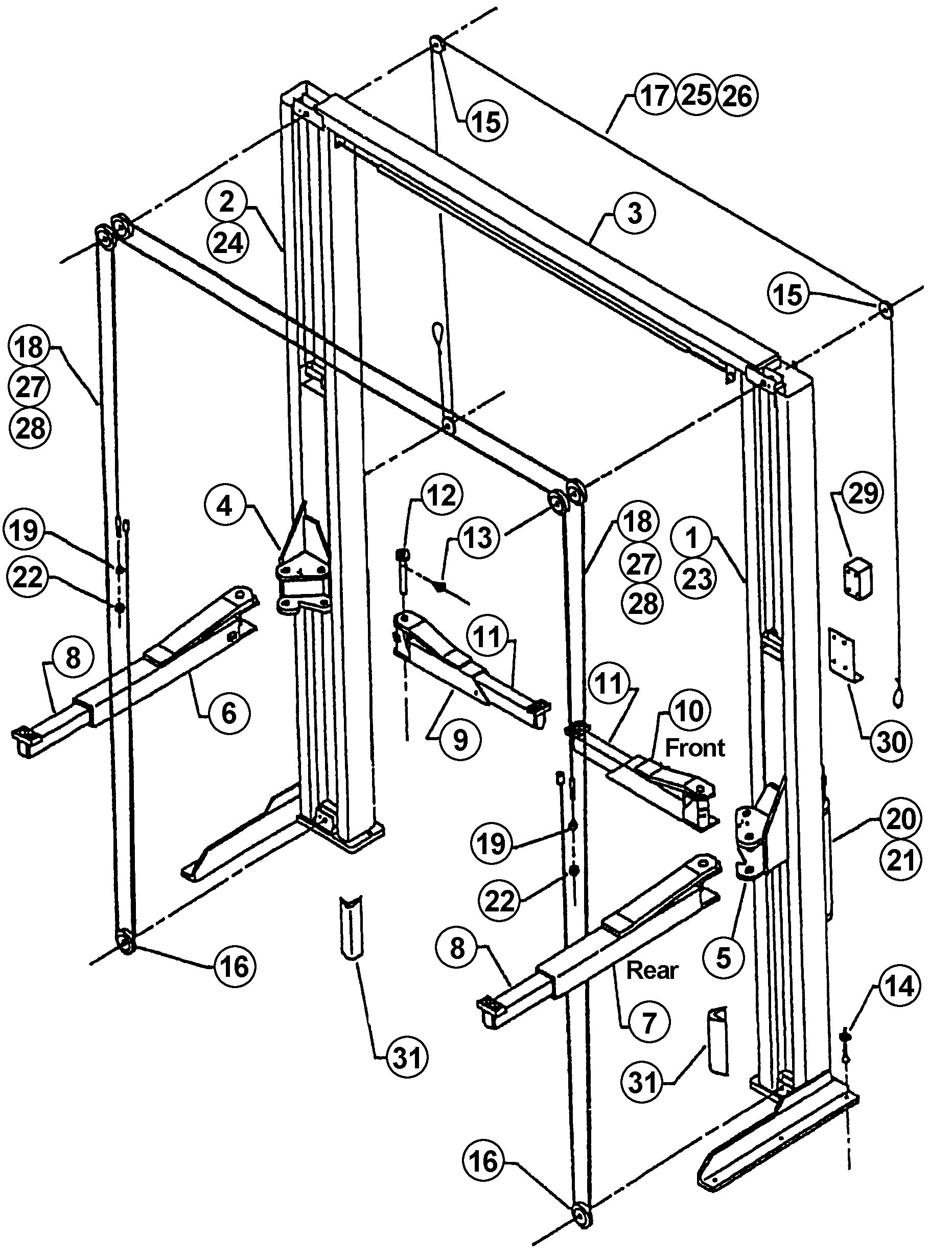

Parts for Benwil GPOA-7H

Above Ground / Surface Mount 2-Post Lifts – Benwil – GPOA-7H

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7224-209
300920
1
R.H. Column
2
BH-7224-210
300833
1
L.H. Column
3
BH-7224-211
300739
1
Overhead Beam
4
BH-7210-21
300822-1
1
Carriage L.H.
View
5
BH-7210-20
300822-2
1
Carriage R.H.
View
6
BH-7208-63
300323-1
1
Rear Arm-L.H.
View
7
BH-7208-60
300323-2
1
Rear Arm-R.H.
View
8
BH-7207-45
300201-7
2
Rear Arm Extension
View
9
BH-7207-72
300556-1
1
Front Arm-L.H.
View
10
BH-7207-73
300556-2
1
Front Arm-R.H.
View
11
BH-7211-39
300915
2
Front Arm Extension
View
12
BH-7208-61
300566
4
Pin-Arm
View
13
BH-7207-49
300218-13
4
Snap Ring
View
14
BH-7224-131
500388
8
Anchor Bolt Assembly
15
BH-7208-56
300874
3
Pulley Lock Rel.
View
16
BH-7202-007
300731
6
Pulley
View
19
F-HN-0500-20
2
1/2"-20 Hex Head Nut
View
20
BH-7006-01
101067
1
Elect.-Hyd. Pump (1PH)
View
21*
BH-7006-03
101068
1
Elect.-Hyd. Pump (3PH)
View
22
F-JN-0500-20
2
1/2"-20 Hex Head Jam Nut
View
26
BH-7210-74
300849-3
1
Cable Assy.-Latch Release System
View
28
BH-7208-69
300805-3
2
Cable Assy.-Synch.
View
29*
BH-7211-26
100998
1
3PH Contractor
View
30*
BH-7224-214
300993
1
Bracket 3PH Contractor
31
BH-7202-70
300568
2
Bumper-Corner

* Optional
