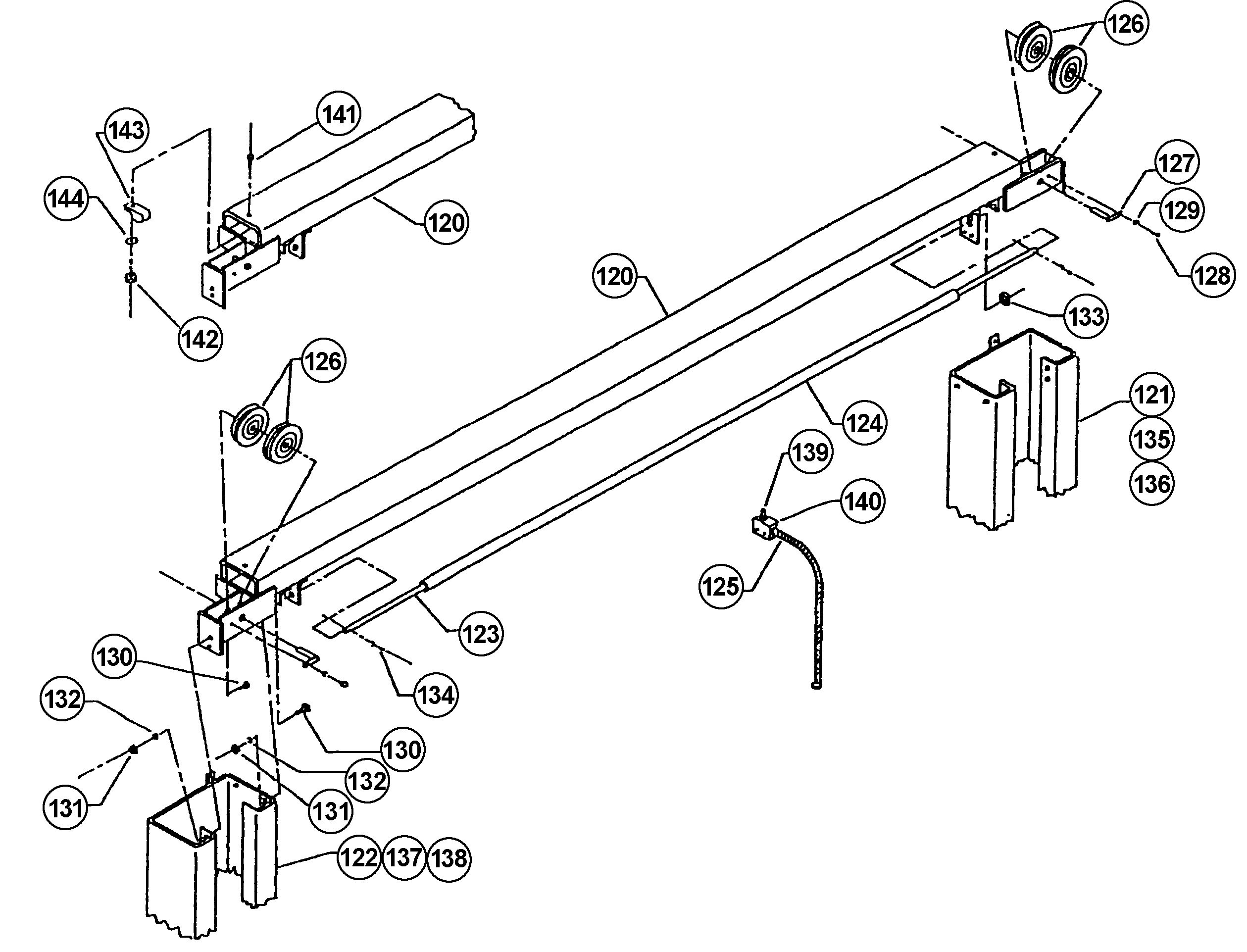

Parts for Benwil GPOA-7H Overhead Beam Assembly

Above Ground / Surface Mount 2-Post Lifts – Benwil – GPOA-7H

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

120
BH-7224-211
300739
Ref.
Overhead Beam
121
BH-7224-209
300920
1
Column-RH
122
BH-7224-210
300833
1
Column-LH
123
BH-7207-68
300470-5
1
Conduit
View
124
BH-7210-15
300281
1
Foam Tubing
View
125
BH-7208-54
101094
1
Switch Assembly-Limit
View
126
BH-7202-007
300731
Ref.
Pulley
View
127
BH-7210-71
300836
2
Axle Assy.-Upper
View
128
F-HC-0250-20-0375
2
1/4"-20 x 3/8" Hex Head Bolt
View
129
F-LW-0250
2
1/4" Split Lock Washer
View
130
F-HC-0437-14-1250
8
7/16"-14 x 1-1/4" Hex Head Bolt
131
F-HN-0437-14
8
7/16"-14 Hex Head Nut
View
132
F-LW-0437
8
7/16" Split Lock Washer
View
133
F-FW-0750-SAE
1
3/4" Flat Washer (SAE)
View
134
F-CP-125-1000
2
1/8" x 1" Cotter Pin
View
136
BH-7224-218
300937
1
Ext. Assembly-RH
138
BH-7224-219
300938
1
Ext. Assembly-LH
139
BH-7209-54
300282
1
Micro-Switch
View
140
BH-7209-87
300283
1
Enclosure Switch
View
141
F-HC-0010-24-1000
2
10-24 x 1" Hex Head Bolt
View
142
F-HN-0010-24
2
10-24 Hex Head Nut
View
143
BH-7211-32
300947
2
Cable Clamp
View
144
F-FW-0187
2
3/16" Flat Washer (USS or SAE)
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
