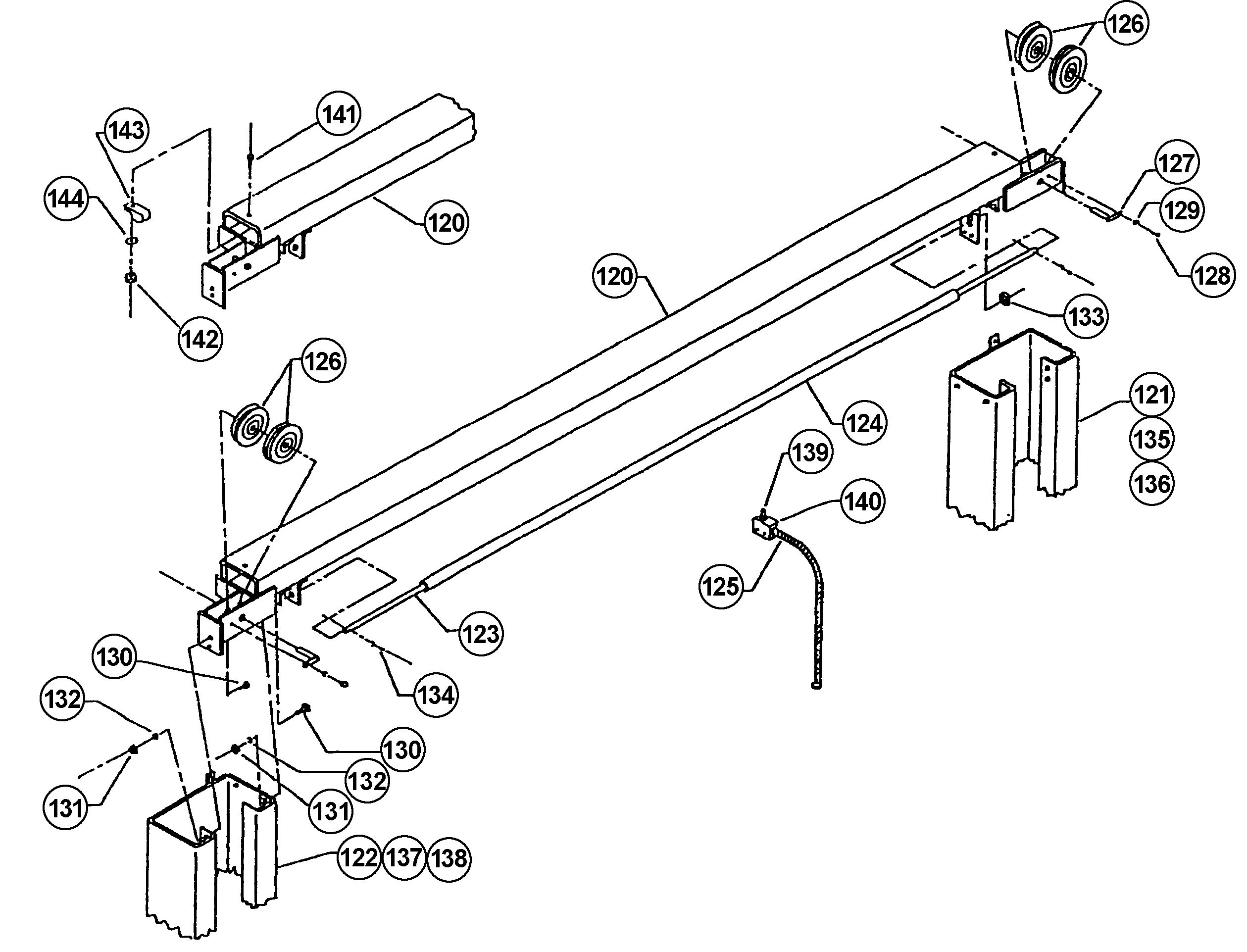

Parts for Benwil GPOA-7 Overhead Beam Assembly

Above Ground / Surface Mount 2-Post Lifts – Benwil – GPOA-7

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

120
BH-7224-211
300739
Ref.
Overhead Beam
121
BH-7224-209
300920
Ref.
Column-RH
122
BH-7224-210
300833
Ref.
Column-LH
123
BH-7207-68
300470-5
1
Conduit
View
124
BH-7210-15
300281
1
Foam Tubing
View
125
BH-7208-54
101094
1
Switch Assembly-Limit
View
126
BH-7202-007
300731
Ref.
Pulley
View
127
BH-7210-71
300836
2
Axle Assy.-Upper
View
128
F-HC-0250-20-0375
2
1/4"-20 x 3/8" Hex Head Bolt
View
129
F-LW-0250
2
1/4" Split Lock Washer
View
130
F-HC-0437-14-1250
8
7/16"-14 x 1-1/4" Hex Head Bolt
131
F-HN-0437-14
8
7/16"-14 Hex Head Nut
View
132
F-LW-0437
8
7/16" Split Lock Washer
View
133
F-FW-0750-SAE
1
3/4" Flat Washer (SAE)
View
134
F-CP-125-1000
2
1/8" x 1" Cotter Pin
View
139
BH-7209-54
300282
1
Micro-Switch
View
140
BH-7209-87
300283
1
Enclosure Switch
View
141
F-HC-0010-24-1000
2
10-24 x 1" Hex Head Bolt
View
142
F-HN-0010-24
2
10-24 Hex Head Nut
View
143
BH-7211-32
300947
2
Cable Clamp
View
144
F-FW-0187
2
3/16" Flat Washer (USS or SAE)
