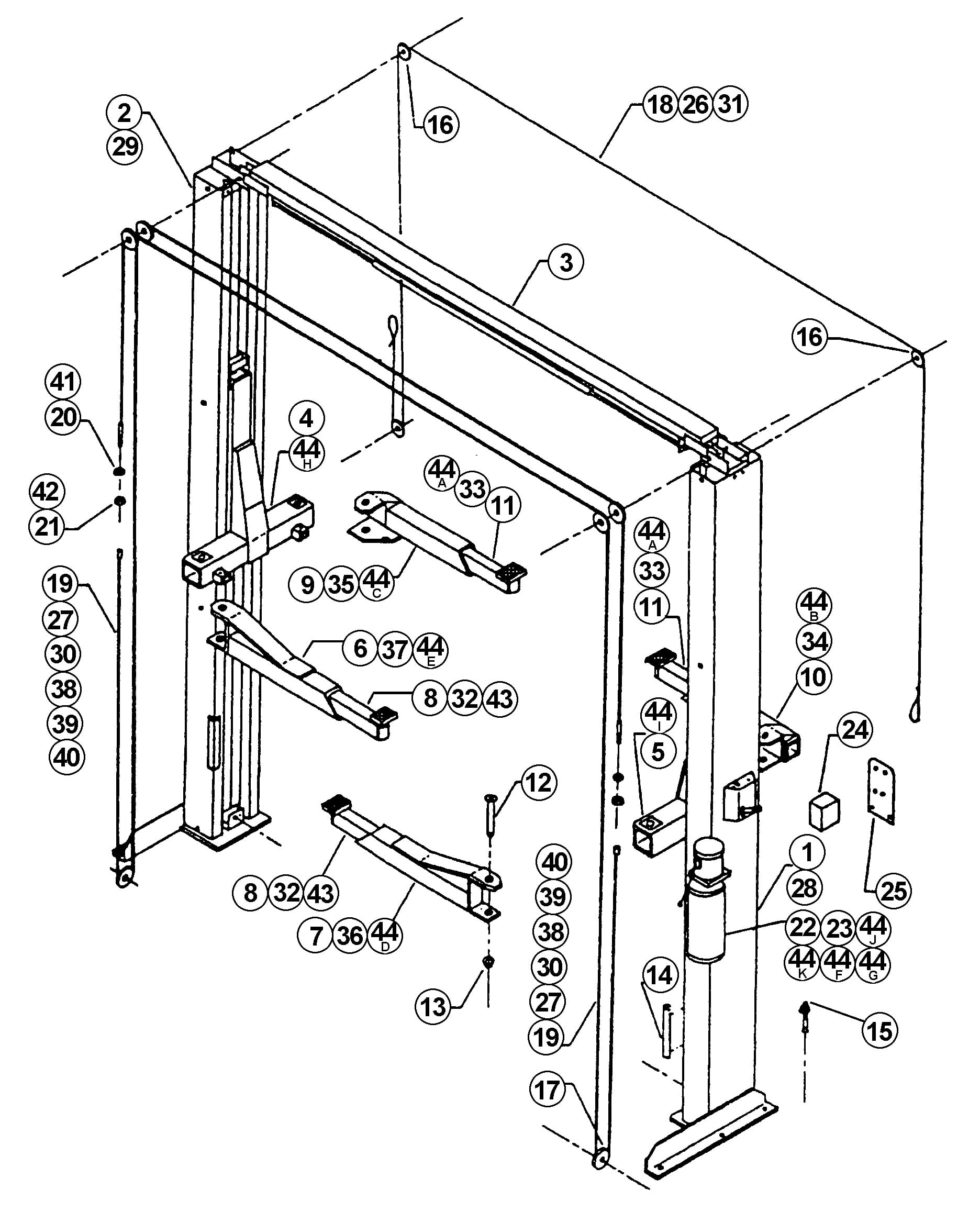

Parts for Benwil GPOA-10L

Above Ground / Surface Mount 2-Post Lifts – Benwil – GPOA-10L

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

3
BH-7209-55
300749
1
Overhead Beam
View
4
Request Details
300810-1
1
Carriage-LH
5
Request Details
300810-2
1
Carriage-RH
12
BH-7211-01
300238
4
Pin Arm
View
13
BH-7211-02
300218-4
4
Snap Ring
View
14
BH-7202-70
300568
2
Bumper Door
15
BH-7224-131
500388
8
Anchor Bolt Assembly
16
BH-7208-56
300874
3
Pulley Lock Release
View
17
BH-7202-007
300731
6
Pulley
View
20
F-HN-0625-18
2
5/8"-18 UNF Hex Head Nut
View
21
F-JN-0625-18
2
5/8"-18 UNF Hex Head Jam Nut
View
28
Request Details
300924-1
1
RH Column
29
Request Details
300776-1
1
LH Column
30
BH-7208-75
300806-5
2
Cable Assembly-Synchronized
View
31
Request Details
300849-11
1
Cable Assembly-Latch Rel. Sys.
43
BH-7214-84
301008
2
Rear Arm Extension
View
44A
BH-7211-16
301012
2
Front Arm Extension
View
44B
Request Details
301011-2
1
Front Arm-RH
44C
Request Details
301011-1
1
Front Arm-LH
44D
BH-7211-92
301007-2
1
Rear Arm-RH
View
44E
BH-7211-91
301007-1
1
Rear Arm-LH
View
44J
BH-7006-01
101105
1
Elec. Hyd. Pump (1PH)
View
44K
BH-7006-03
101106
1
Elec. Hyd. Pump (3PH)
View
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
