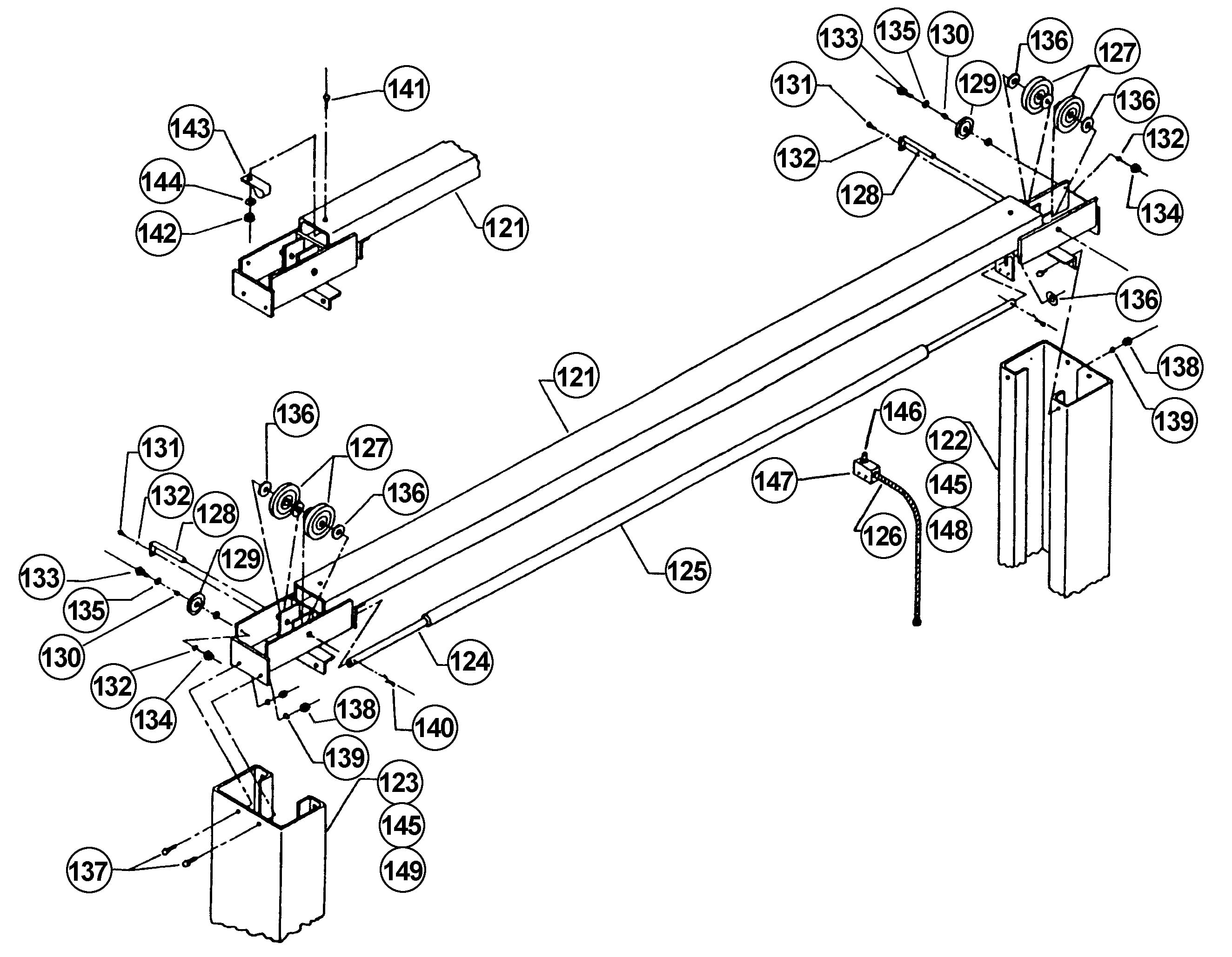

Parts for Benwil GPOA-10H Overhead Beam Assembly

Above Ground / Surface Mount 2-Post Lifts – Benwil – GPOA-10H

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

121
BH-7209-55
300749
Ref.
Overhead Beam
View
122
Request Details
300924
--
Column-RH
123
Request Details
300776
--
Column-LH
124
BH-7224-175
300470-4
1
Conduit
125
BH-7210-15
300281
1
Foam Tubing
View
126
BH-7208-54
101094
1
Switch Assy.-Limit
View
127
BH-7202-007
300731
Ref.
Pulley
View
128
BH-7210-39
300837
2
Axle Upper Pulley
View
129
BH-7208-56
300874
Ref.
Pulley Lock Rel.
View
130
BH-7208-57
300875
2
Steel Insert Pulley
View
131
F-HC-0250-20-0375
2
1/4"-20 x 3/8" Hex Head Bolt
View
132
F-LW-0250
4
1/4" Split Lock Washer
View
133
F-HC-0250-20-1250
2
1/4"-20 x 1-1/4" Hex Head Bolt (Gr. 5)
View
134
F-HN-0250-20
2
1/4"-20 Hex Head Nut
View
135
F-FW-0250-USS
4
1/4" Flat Washer (USS)
View
136
F-FW-0750-SAE
9
3/4" Flat Washer (SAE) 9/64
View
137
F-HC-0437-14-1250
8
7/16"-14 x 1-1/4" Hex Head Bolt
138
F-HN-0437-14
8
7/16"-14 Hex Head Nut
View
139
F-LW-0437
8
7/16" Split Lock Washer
View
140
F-CP-125-1000
2
1/8" x 1" Cotter Pin
View
141
F-HC-0010-24-1000
2
10-24 x 1" Hex Head Bolt
View
142
F-HN-0010-24
2
10-24 Hex Head Nut
View
143
BH-7211-32
300947
2
Cable Clamp
View
144
F-FW-0187
2
3/16" Flat Washer (USS or SAE)
145
BH-7210-80
300868
2
Ext. Assy.-Column
View
146
BH-7209-54
300282
1
Micro-Switch
View
147
BH-7209-87
300283
1
Enclosure Switch
View
148
Request Details
300924-1
--
RH Column
149
Request Details
300776-1
--
LH Column
