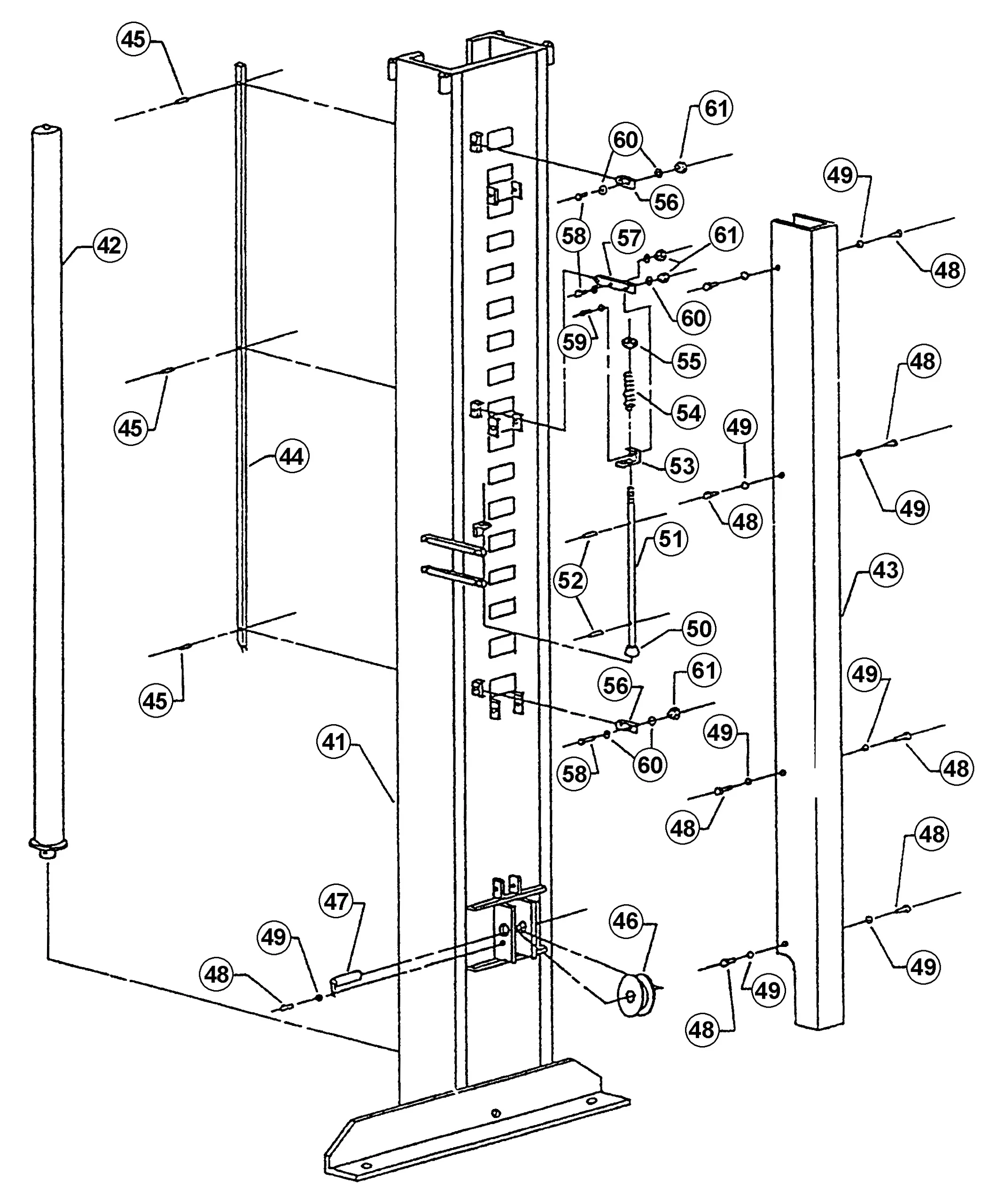

Parts for Benwil BWO-9L Drive Column Assembly

Above Ground / Surface Mount 2-Post Lifts – Benwil – BWO-9L

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

41
BH-7224-195
300516-1
1
Column-Drive Side
42
BH-7224-183
300304
1
Hydraulic Cylinder
42
BH-7224-206
300677
1
Cylinder for BWO-9L
43
BH-7224-196
300538
1
Cover Chain
44
BH-7202-90
300596
1
Channel Lock Release
View
45
F-RP-0187-0437
3
3/16" x 7/16" Roll Pin
46
BH-7208-46
300468
1
Sheave
View
47
BH-7210-57
300559
1
Axle-Sheave
View
48
F-HC-0250-20-0375
9
1/4"-20 x 3/8" Hex Bolt
View
49
F-LW-0250
9
1/4" Split Lock Washer
View
50
BH-7208-36
300284
1
Knob
View
51
BH-7202-98
300319
1
Rod-Lock Release
View
52
F-RP-156-0750
2
5/32" x 3/4" Roll Pin
53
BH-7208-64
300449
1
Angle-Lock Release
View
54
BH-7208-09
300397
1
Spring-Lock Release
View
55
F-HN-0375-16
1
3/8"-16 Hex Nut
View
56
BH-7202-99
300178
2
Link-Lock Release
View
57
BH-7208-21
300450
1
Link-Lock Release
View
58
F-MS-0010-32-1000
3
10-32 x 1" Phil. Panhd. Screw
View
59
F-MS-0010-32-0750
1
10-32 x 3/4" Phil. Panhd. Screw
View
60
F-FW-0187-SAE
8
3/16" Flat Washer
View
61
F-NL-0010-32
4
10-32 Nylon Insert Lock Nut
View
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
