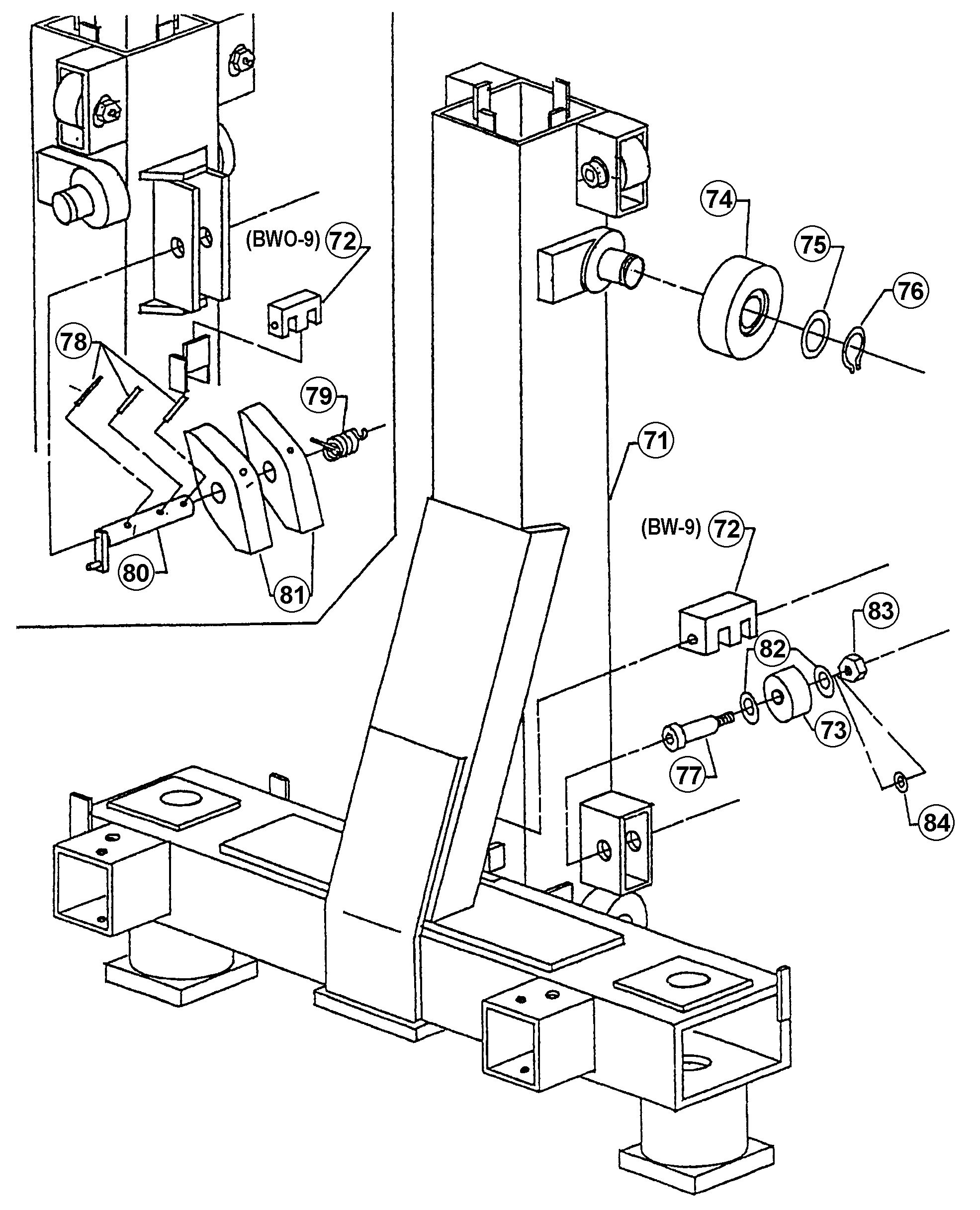

Parts for Benwil BWO-9 Carriage Assembly Drive Side

Above Ground / Surface Mount 2-Post Lifts – Benwil – BWO-9

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

71
BH-7224-191
300483-3
1
Carr. Weld-Drive Side
72
BH-7210-56
300554
1
Chain Anchor
View
73
BH-7208-38
300382
4
Roller Assembly-Side
View
74
BH-7208-37
300607
4
Roller-Flange
View
75
BH-7202-005
300617
4
Thrust Washer
View
76
BH-7202-006
300218-8
4
Snap Ring
View
77
F-SB-0625-11-1500
4
5/8" x 1-1/2" Socket Shoulder Screw
View
78
F-RP-156-1500
3
5/32" x 1-1/2" Roll Pin
View
79
BH-7202-93
300269
1
Spring-Safety Lock
View
80
BH-7202-91
300537
1
Pin Assembly
View
81
BH-7202-92
300612
2
Lock-Carriage
View
82
Request Details
8
5/8" x 1-1/4" Machine Bushing
83
F-NL-0500-13
4
1/2"-13 Insert Lock Nut
View
84
F-FW-0500-USS
4
1/2" Flat Washer
View
