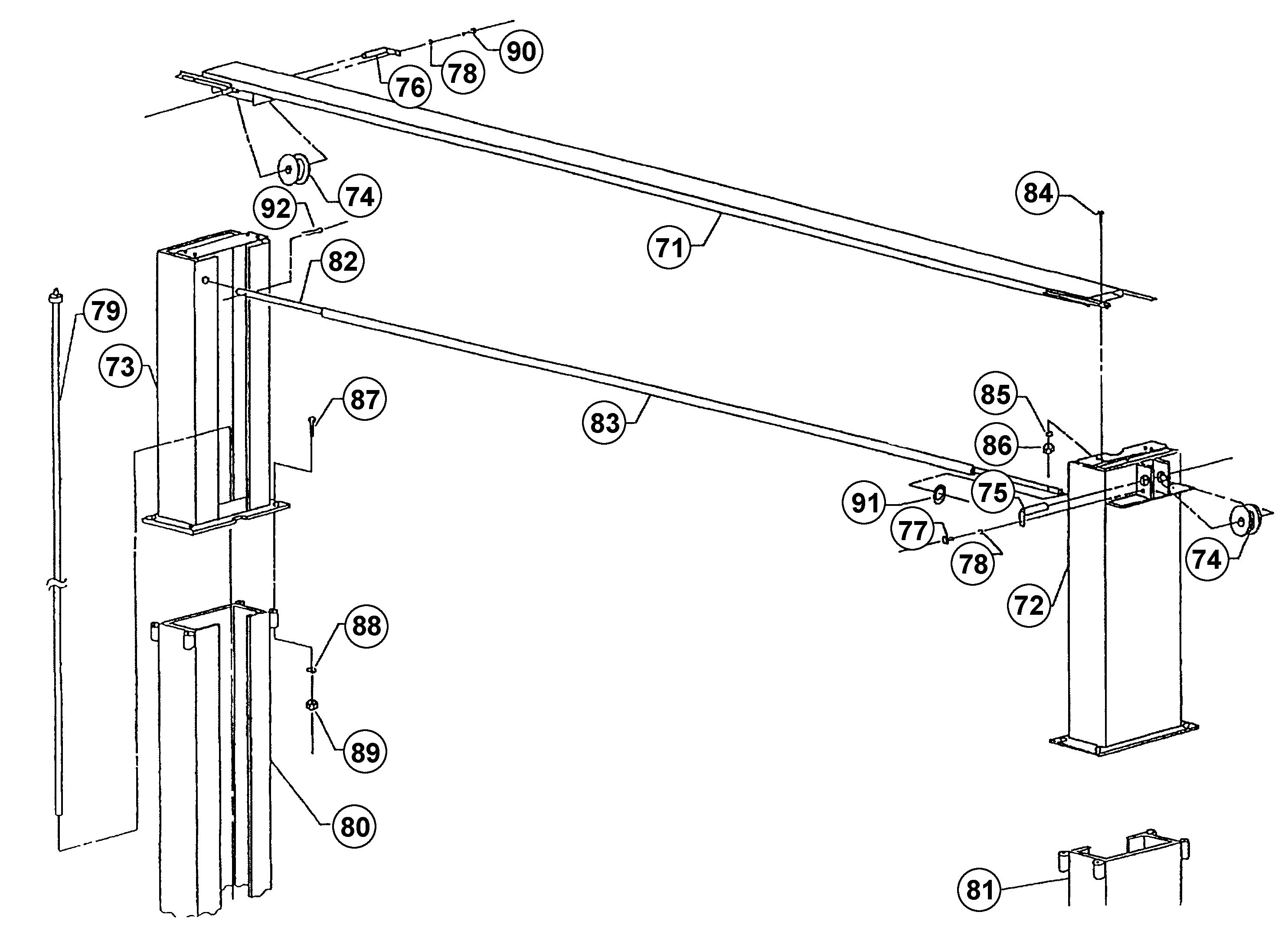

Parts for Benwil BWO-7L Overhead Beam Assembly

Above Ground / Surface Mount 2-Post Lifts – Benwil – BWO-7L

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

71
BH-7224-165
300651-3
1
Beam Assembly-Overhead
72
BH-7224-172
300654-3
1
Up. Column-Drive Side (BWO7L, BWO-7WL)
73
BH-7224-174
300647-3
1
Up. Column-Driven Side (BWO-7L, BWO-7WL)
74
BH-7208-19
300068
2
Sheave
View
75
BH-7208-30
300392
1
Axle-Sheave
View
76
BH-7208-29
300393
1
Axle-Sheave
View
77
F-HC-0250-20-0375
1
1/4"-20 x 3/8" Hex Head Bolt
View
78
F-LW-0250
2
1/4" Split Lock Washer
View
79
BH-7202-95
300300
1
Rod Assembly - Restraint
View
80
BH-7224-162
300517-3
1
Column-Driven Side
81
BH-7224-161
300516-3
1
Column-Drive Side
82
BH-7224-175
300470-4
1
Conduit-Limit
83
BH-7210-15
300281
1
Foam Tube-Limit
View
84
F-HC-0375-16-0250
8
3/8"-16 x 1-1/4" Hex Head Bolt
85
F-LW-0375
8
3/8" Split Lock Washer
View
86
F-HN-0375-16
8
3/8"-16 Hex Nut
View
87
F-HC-0500-13-2500
8
1/2"-13 x 2-1/2" Hex Head Bolt
View
88
F-LW-0500
8
1/2" Split Head Washer
View
89
F-HN-0500-13
8
1/2"-13 Hex Nut
View
90
F-HC-0250-20-0500
1
1/4"-20 x 1/2" Hex Head Bolt
View
91
F-FW-0750-SAE
1
3/4" Flat Washer
View
92
F-CP-125-1000
2
1/8" x 1" Cotter Pin
View
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
