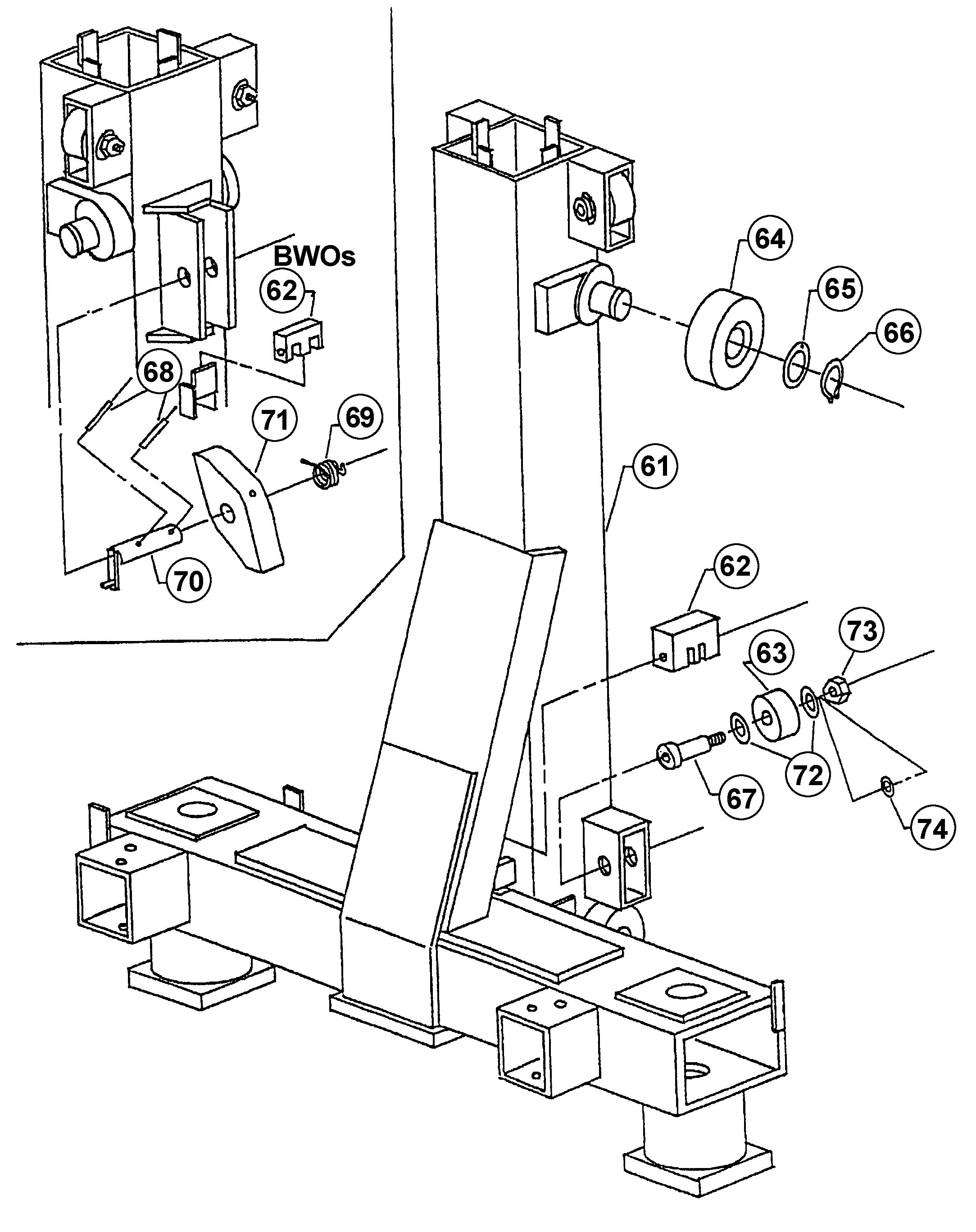

Parts for Benwil BWO-7 Carriage Assembly Drive Side

Above Ground / Surface Mount 2-Post Lifts – Benwil – BWO-7

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

61
BH-7224-154
300317-3
1
Carriage Weld-Drive Side
62
BH-7224-130
300344
1
Chain Anchor
63
BH-7208-38
300382
4
Roller Assy. - Side
View
64
BH-7208-37
300607
4
Roller-Flange
View
65
BH-7202-005
300617
4
Thrust Washer
View
66
BH-7202-006
300218-8
4
Snap Ring
View
67
F-SB-0625-11-1500
4
5/8" x 1-1/2" Socket Shoulder Screw
View
68
F-RP-156-1500
2
5/32" x 1-1/2" Roll Pin
View
69
BH-7208-49
300061
1
Spring-Safety Lock
View
70
BH-7208-10
300070
1
Pin Assembly
View
71
BH-7208-48
300055
1
Lock-Carriage
View
72
Request Details
8
5/8" x 1-1/4" Machine Bushing
73
F-NL-0500-13
4
1/2"-13 Nylon Insert Lock Nut
View
74
F-FW-0500-USS
4
1/2" Flat Washer
View
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
