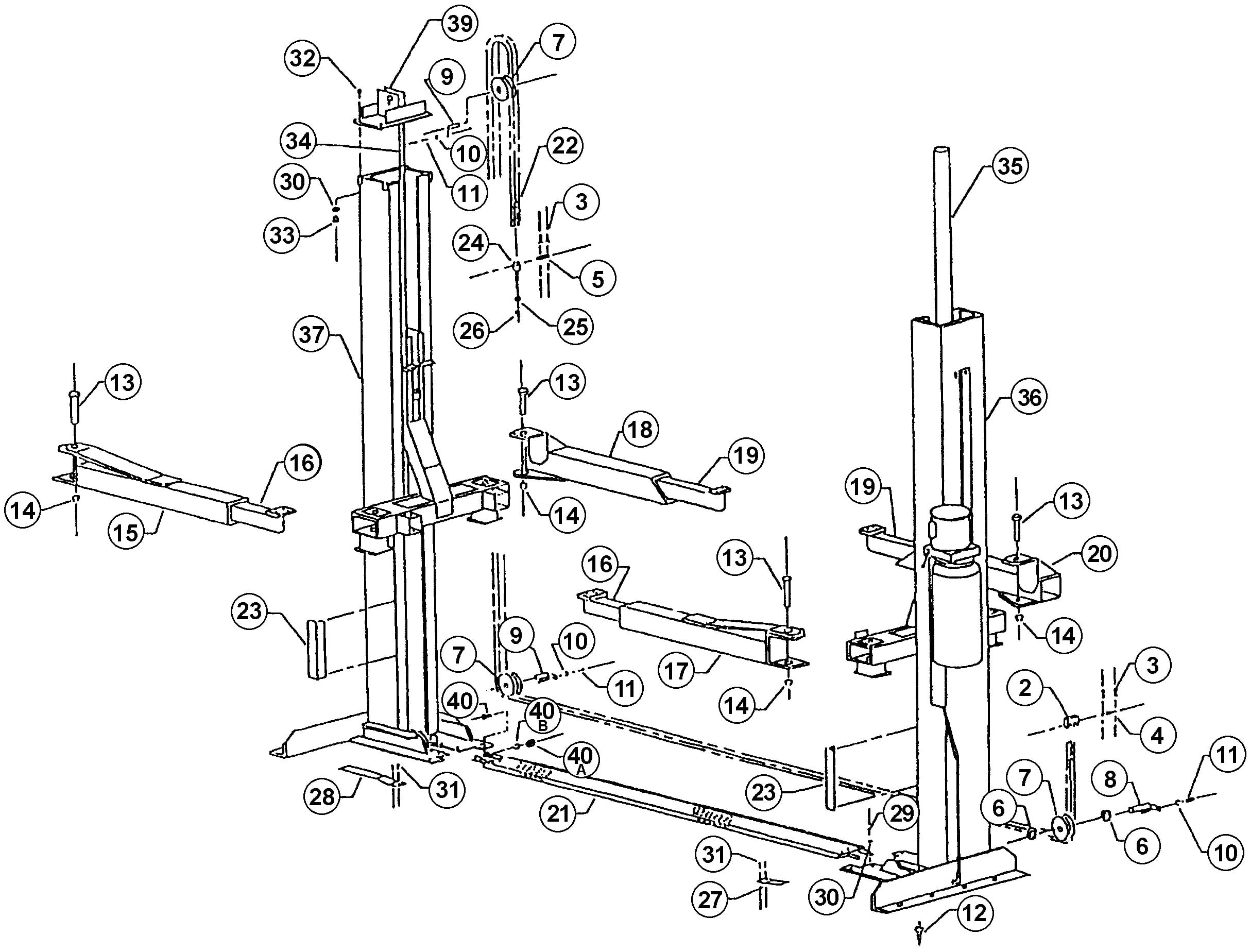

Parts for Benwil BW-9L

Above Ground / Surface Mount 2-Post Lifts – Benwil – BW-9L

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

2
BH-7210-56
300554
1
Anchor-Chain
View
3
F-CP-125-0875
4
1/8" x 7/8" Cotter Pin
4
BH-7210-52
300346
1
Pin, Chain Anchor
View
5
BH-7207-71
300555
1
Pin, Clevis
View
6
BH-7224-179
300562
2
Spacer-Sheave
7
BH-7208-46
300468
3
Sheave
View
8
BH-7208-47
300561
1
Shaft Assy.-Drive Side
View
9
BH-7210-57
300559
2
Shaft Assy.-Driven Side
View
10
F-LW-0250
3
1/4" Split Lock Washer
View
11
F-HC-0250-20-0375
3
1/4"-20 x 3/8" Hex Bolt
View
12
BH-7224-131
500388
12
Anchor Bolt Assembly
13
BH-7211-01
300238
4
Pin-Arm Fnt./Rear
View
14
BH-7211-02
300218-4
4
Snap Ring
View
15
BH-7207-63
300418-1
1
Arm Weld-Rear (LH)
View
16
BH-7207-03
300426
2
Arm-Weld Ext.-Rear
View
17
BH-7207-64
300418-2
1
Arm Weld-Rear (RH)
View
18
BH-7224-180
300444-1
1
Arm Weld-Asym.Frnt. (LH)
19
BH-7211-11
300428
2
Arm Weld Ext.-Frnt.
View
20
BH-7224-181
300444-2
1
Arm Weld-Asym. Frnt. (RH)
21
BH-7224-182
300249-5
1
Floor Plate
22
BH-7208-95
300469-1
1
Leaf Chain-447 Links
View
23
BH-7202-70
300568
2
Bumper Door
24
BH-7207-70
300553
1
Clevis-Chain
View
25
F-HN-0625-18
1
5/8"-18 Hex Nut
View
26
F-JN-0625-18
1
5/8"-18 Hex Jam Nut
View
27
BH-7224-143
300408
1
Chain Cvr. Drive-Side
28
BH-7207-61
300409-3
1
Chain Cvr. Driven-Side
View
29
F-HC-0375-16-0750
8
3/8"-16 x 3/4" Hex Bolt
View
30
F-LW-0375
12
3/8" Split Lock Washer
View
31
F-MS-0010-32-0500
4
10-32 x 1/2" Phil. Hd. Screw
View
32
F-HC-0500-13-2500
4
1/2"-13 x 2-1/2" Hex Bolt
View
33
F-HN-0500-13
4
1/2"-13 Hex Nut
View
34
BH-7202-95
300300
1
Rod Assy.-Restraint
View
35
BH-7224-183
300304
1
Hydraulic Cylinder
35
BH-7224-206
300677
1
Use for BW-9L
36
BH-7224-184
300497
1
Column-Drive Side
37
BH-7224-185
300498
1
Column-Driven Side
38
F-LW-0500
4
1/2" Split Lock Washer
View
39
BH-7224-186
300504
1
Upper Sheave Bracket
40
F-HC-0375-16-1000
4
3/8"-16 x 1" Hex Head Bolt
View
40-A
F-HN-0375-16
4
3/8"-16 Hex Head Nut
View
40-B
F-LW-0375
4
3/8" Spring Lock Washer
View
--
BH-7208-66B
100965
4
Lift Pad Assembly
View
--
BH-7208-66GMT-1
100965-x
Lift Pad Assembly for GM Trucks 2019+
View
--
BH-7208-66GMT-2
100965-xx
Lift Pad Assembly for GM Trucks 2019+
View
--
BH-7542-75P
Replacement Pad for GM Truck Adapters
View
