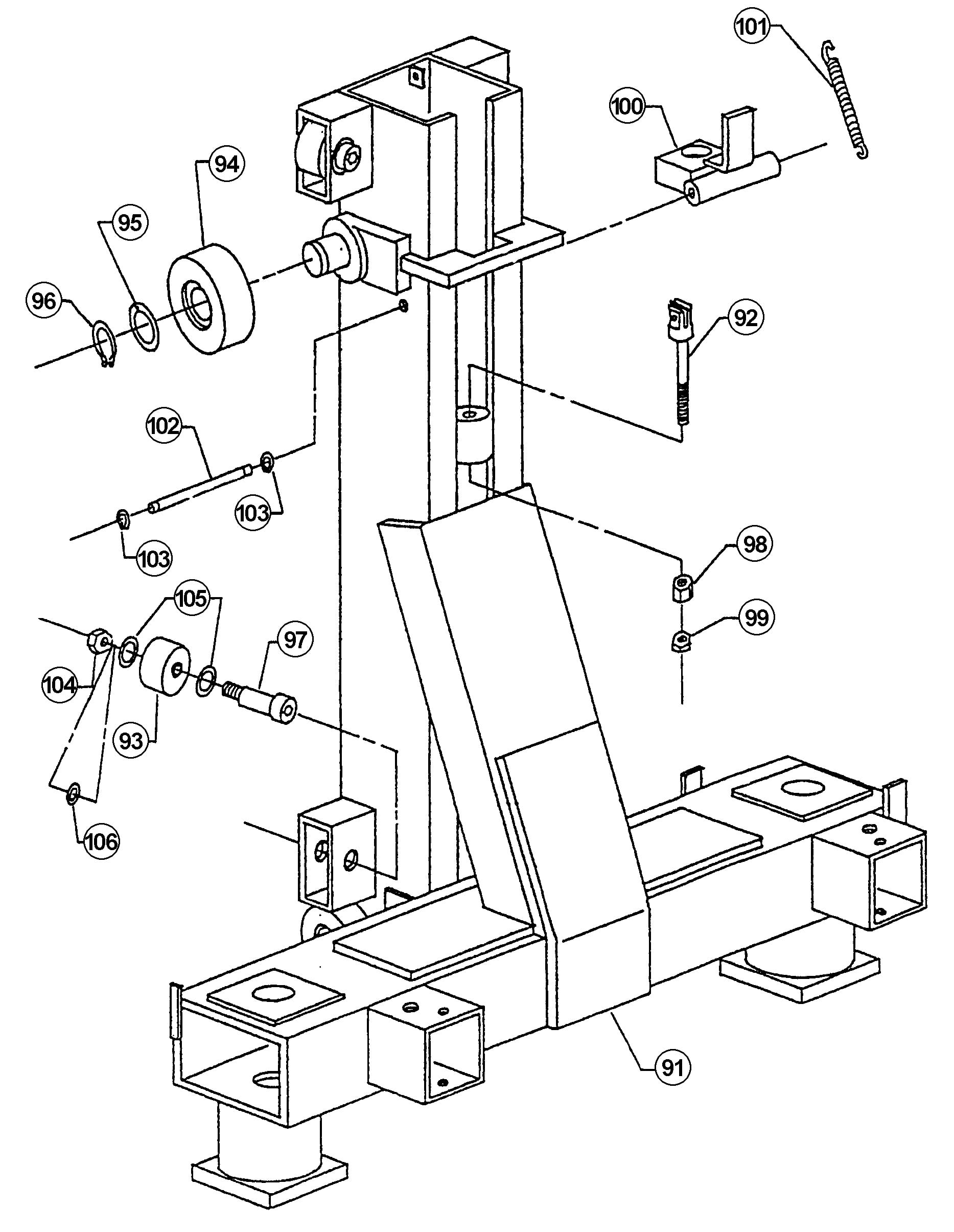

Parts for Benwil BW-9 Carriage Assembly Driven Side

Above Ground / Surface Mount 2-Post Lifts – Benwil – BW-9

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

91
BH-7224-192
300484
1
Carriage Weld-Driven
92
BH-7207-70
300553
1
Clevis-Chain
View
93
BH-7208-38
300382
4
Roller Assembly Side
View
94
BH-7208-37
300607
4
Roller-Flange
View
95
BH-7202-005
300617
4
Thrust Washer
View
96
BH-7202-006
300218-8
4
Snap Ring
View
97
F-SB-0625-11-1500
4
5/8" x 1-1/2" Socket Shoulder Screw
View
98
F-HN-0625-18
1
5/8"-18 Hex Nut
View
99
F-JN-0625-18
1
5/8"-18 Jam Nut
View
100
BH-7202-96
300543
1
Lk. Weld-Loose Chain
View
101
BH-7202-97
300396
1
Spr.-Loose Chain Lk.
View
102
BH-7207-69
300546
1
Pin-Loose Chain
View
103
BH-7210-47
300218-11
2
Snap Ring
View
104
F-NL-0500-13
4
1/2"-13 Nylon Insert Lock Nut
View
105
Request Details
8
5/8" x 1-1/4" Machine Bushing
106
F-FW-0500-SAE
4
1/2" Flat Washer
View
