Parts for Benwil BW-7WL

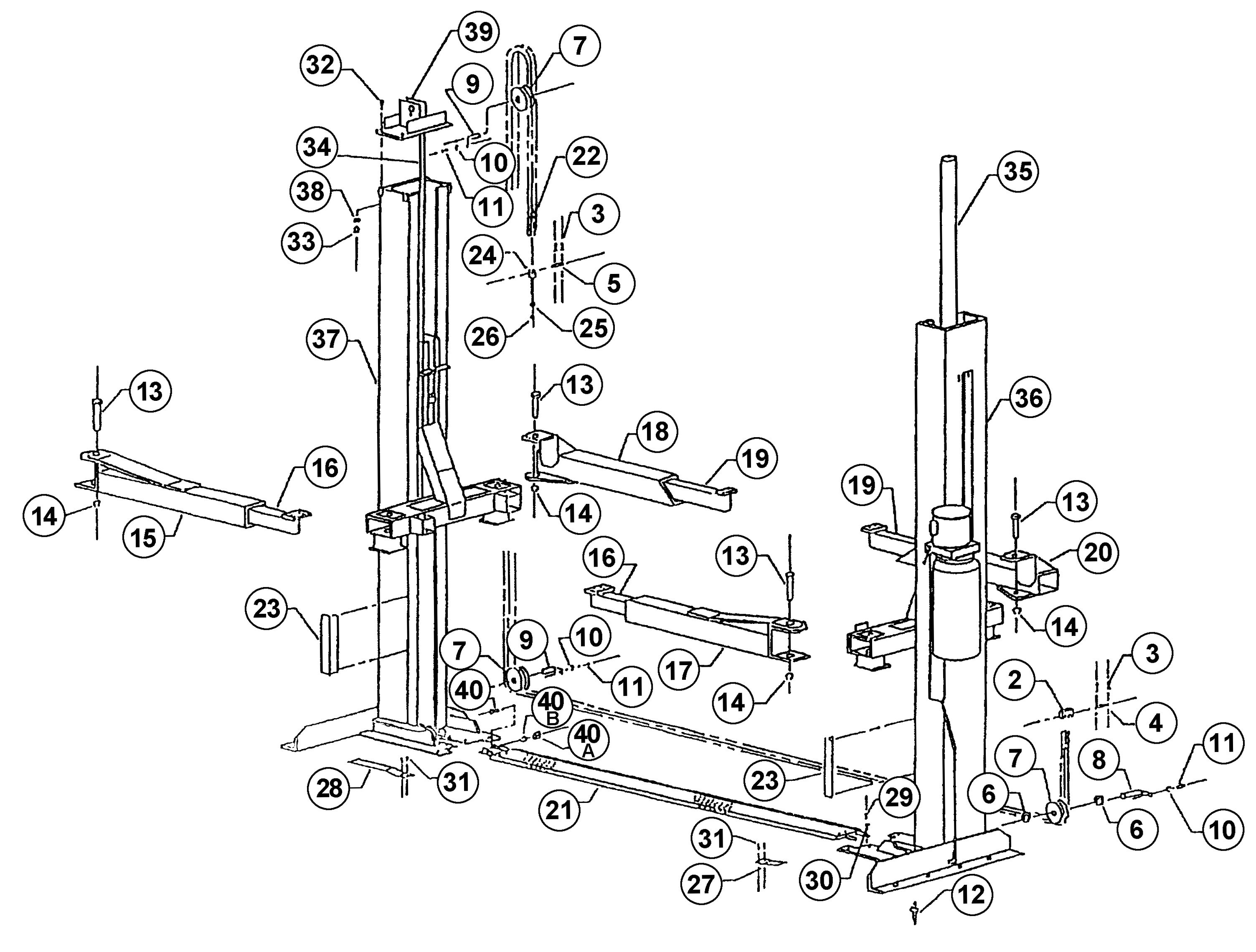

Above Ground / Surface Mount 2-Post Lifts – Benwil – BW-7WL

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

2
BH-7224-132
300344
1
Anchor-Chain
3
F-CP-125-0875
4
1/8" x 7/8" Cotter Pin
4
BH-7210-52
300346
1
Pin, Chain Anchor
View
5
BH-7209-65
300125
1
Clevis Pin
View
6
BH-7208-31
300333
2
Spacer-Sheave
View
7
BH-7208-19
300068
3
Sheave
View
8
BH-7208-29
300393
1
Shaft Assembly - Drive Side
View
9
BH-7208-30
300392
2
Shaft Assembly - Driven Side
View
10
F-LW-0250
3
1/4" Split Lock Washer
View
11
F-HC-0250-20-0375
3
1/4"-20 x 3/8" Hex Bolt
View
12
BH-7224-131
500388
12
Anchor Bolt Assembly
13
BH-7211-01
300238
4
Pin-Arm Front & Rear
View
14
BH-7211-02
300218-4
4
Snap Ring
View
15
BH-7224-132
300225-1
1
Arm Weld-Rear LH
16
BH-7224-133
300201-3
2
Arm Weld Ext. Rear
17
BH-7224-134
300225-2
1
Arm Weld-Rear RH
18
BH-7224-135
300234-1
1
Arm Weld-Asym. Front LH
19
BH-7224-136
300235-3
2
Arm Weld Ext.-Front
20
BH-7224-137
300234-2
1
Arm Weld-Asym. Front RH
21
BH-7224-139
300249-3
1
Floor Plate
22
BH-7224-141
300158-5
1
Leaf Chain-445 Links
23
BH-7202-70
300568
2
Bumper Door
24
BH-7205-40
300124-2
1
Clevis-Chain
View
25
F-HN-0562-18
1
9/16"-18 Hex Nut
View
26
F-JN-0562-18
1
9/16"-18 Hex Jam Nut
27
BH-7224-143
300408
1
Chain Cover-Drive Side
28
BH-7207-61
300409
1
Chain Cover-Driven Side
View
29
F-HC-0375-16-0750
8
3/8"-16 x 3/4" Hex Bolt
View
30
F-FW-0375
12
3/8" Split Lock Washer
View
31
F-MS-0010-32-0500
4
10-32 x 1/2 Phil. Hd. Slf. Thred. Screw
View
32
F-HC-0500-13-2500
8
1/2"-13 x 2-1/2" Hex Bolt
View
33
F-HN-0500-13
4
1/2"-13 Hex Nut
View
34
BH-7202-95
300300
1
Rod Assy. - Restraint
View
35
BH-7211-89
300275
1
Hydraulic Cylinder (see for BW7L/7WL)
View
35
BH-7224-148
1
Hydraulic Cylinder for BW7L/7WL
36
BH-7224-144
300294
1
Column - Drive Side
37
BH-7224-145
300268
1
Column - Driven Side
38
F-LW-0500
--
1/2" Split Lock Washer
View
39
BH-7224-146
300295
1
Upper Sheave Bracket Assembly
40
F-HC-0375-16-1000
4
3/8"-16 x 1" Hex Head Bolt
View
40A
F-HN-0375-16
4
3/8"-16 Hex Head Nut
View
40B
F-LW-0375
4
3/8" Spring Lock Washer
View
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
