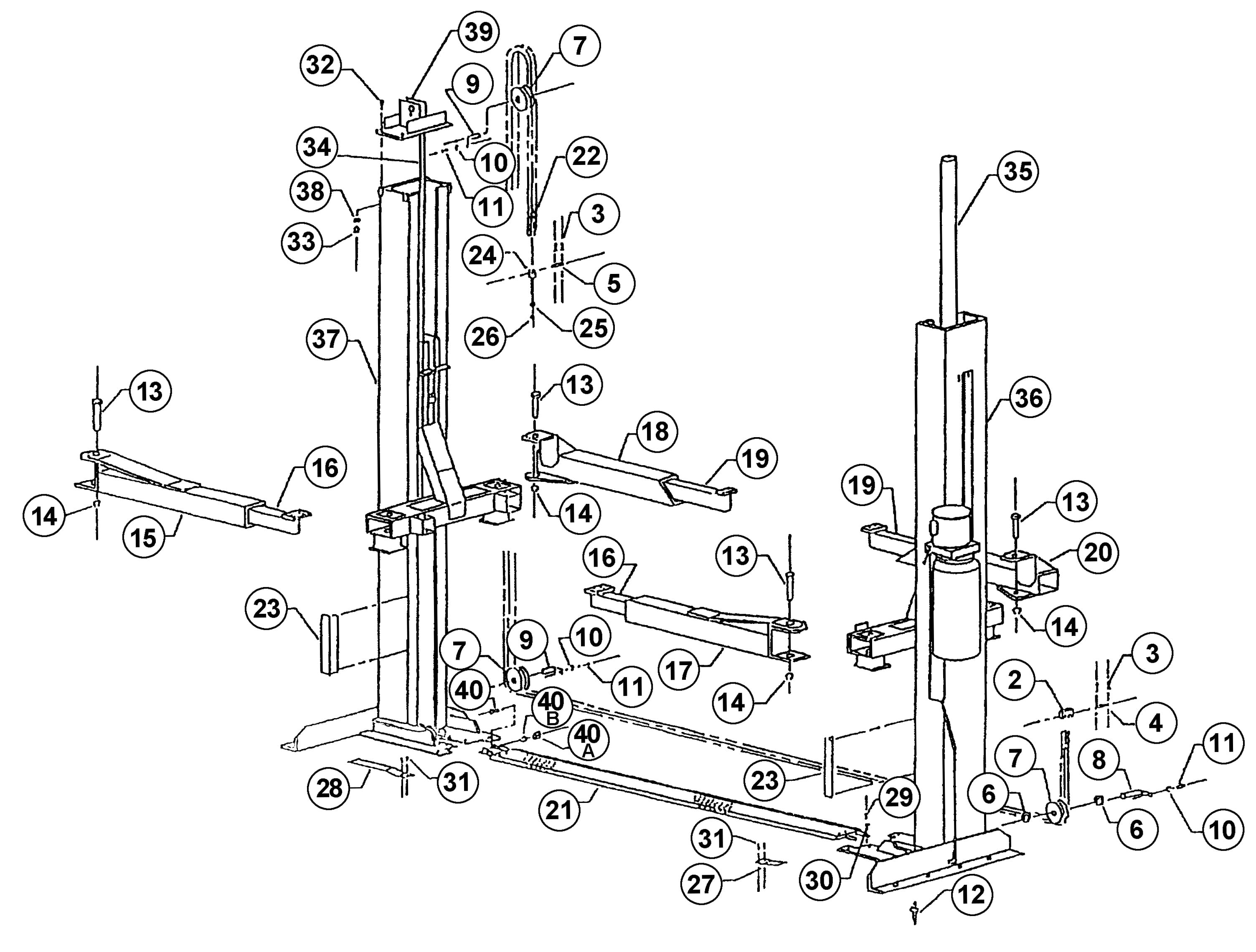

Parts for Benwil BW-7L

Above Ground / Surface Mount 2-Post Lifts – Benwil – BW-7L

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

2
BH-7224-132
300344
1
Anchor-Chain
3
F-CP-125-0875
4
1/8" x 7/8" Cotter Pin
4
BH-7210-52
300346
1
Pin, Chain Anchor
View
5
BH-7209-65
300125
1
Clevis Pin
View
6
BH-7208-31
300333
2
Spacer-Sheave
View
7
BH-7208-19
300068
3
Sheave
View
8
BH-7208-29
300393
1
Shaft Assembly - Drive Side
View
9
BH-7208-30
300392
2
Shaft Assembly - Driven Side
View
10
F-LW-0250
3
1/4" Split Lock Washer
View
11
F-HC-0250-20-0375
3
1/4"-20 x 3/8" Hex Bolt
View
12
BH-7224-131
500388
12
Anchor Bolt Assembly
13
BH-7211-01
300238
4
Pin-Arm Front & Rear
View
14
BH-7211-02
300218-4
4
Snap Ring
View
15
BH-7211-06
300200-1
1
Arm Weld-Rear LH
View
16
BH-7211-07
300201-1
2
Arm Weld Ext. Rear
View
17
BH-7211-08
300200-2
1
Arm Weld-Rear RH
View
18
BH-7211-03
300321-1
1
Arm Weld-Asym. Front LH
View
19
BH-7211-04
300235-1
2
Arm Weld Asym. Front
View
20
BH-7211-05
300231-2
1
Arm Weld-Asym. Front RH
View
21
BH-7224-138
300249-1
1
Floor Plate
22
BH-7224-140
300158-3
1
Leaf Chain - 421 Links
23
BH-7202-70
300568
2
Bumper Door
24
BH-7205-40
300124-2
1
Clevis-Chain
View
25
F-HN-0562-18
1
9/16"-18 Hex Nut
View
26
F-JN-0562-18
1
9/16"-18 Hex Jam Nut
27
BH-7224-143
300408
1
Chain Cover-Drive Side
28
BH-7207-61
300409
1
Chain Cover-Driven Side
View
29
F-HC-0375-16-0750
8
3/8"-16 x 3/4" Hex Bolt
View
30
F-FW-0375
12
3/8" Split Lock Washer
View
31
F-MS-0010-32-0500
4
10-32 x 1/2 Phil. Hd. Slf. Thred. Screw
View
32
F-HC-0500-13-2500
8
1/2"-13 x 2-1/2" Hex Bolt
View
33
F-HN-0500-13
4
1/2"-13 Hex Nut
View
34
BH-7202-95
300300
1
Rod Assembly - Restraint
View
35
BH-7211-89
300275
1
Hydraulic Cylinder (see for BW7L/7WL)
View
35
BH-7224-148
1
Hydraulic Cylinder for BW7L/7WL
36
BH-7224-144
300294
1
Column-Drive Side
37
BH-7224-145
300268
1
Column-Driven Side
38
F-LW-0500
4
1/2" Split Lock Washer
View
39
BH-7224-146
300295
1
Upper Sheave Brkt. Assy.
40
F-HC-0375-16-1000
4
3/8"-16 x 1" Hex Head Bolt
View
40A
F-HN-0375-16
4
3/8"-16 Hex Head Nut
View
40B
F-LW-0375
4
3/8" Spring Lock Washer
View
