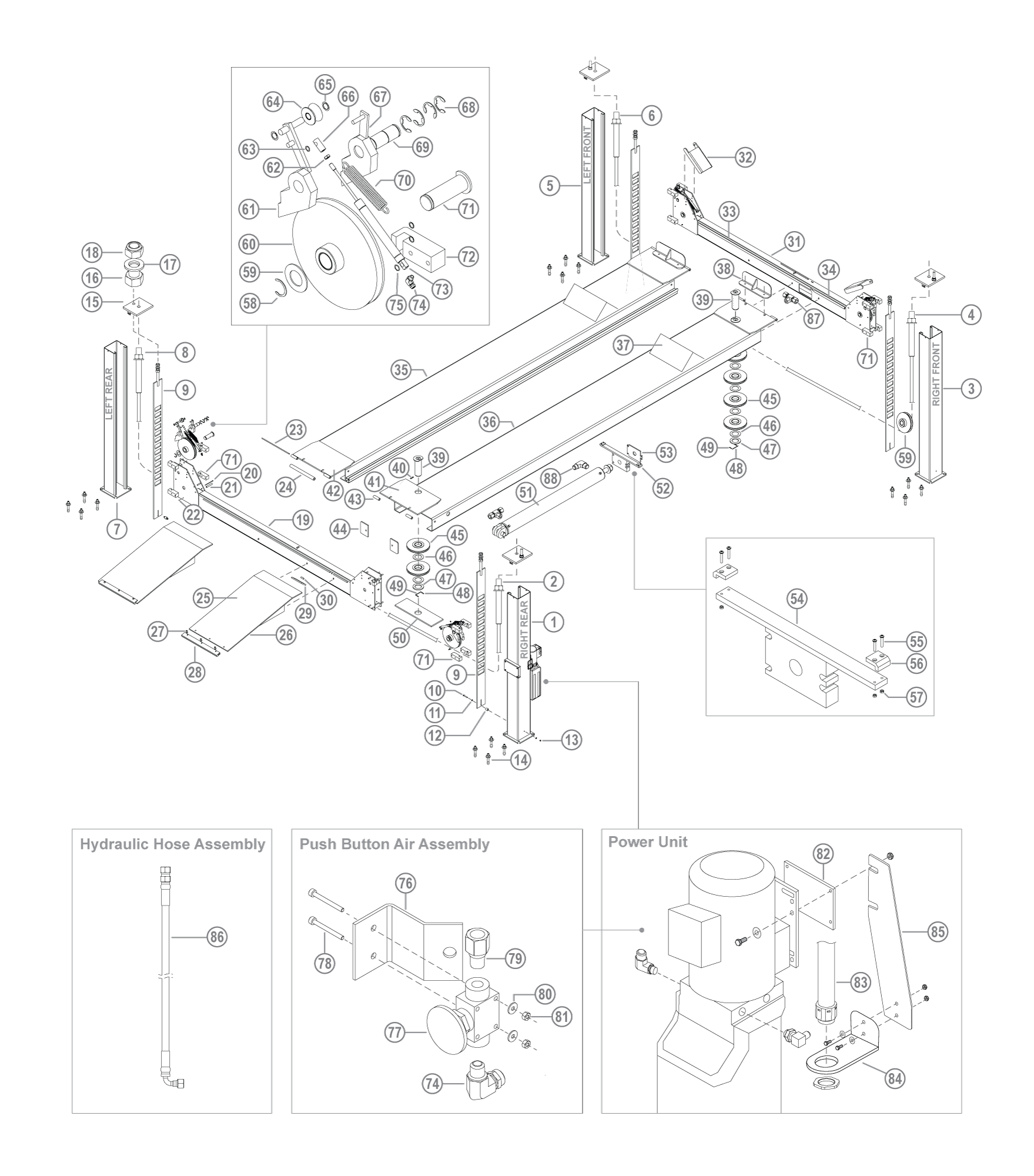

Parts for BendPak HDS-40

Above Ground / Surface Mount 4-Post Lifts – BendPak Lift – HDS-40

SVI is the #1 Source for repair parts for BendPak Lifts. Whether you need cables, sheaves, cable / sheave revamp kits, slider blocks, power units, height extensions and pads, or another part for your 4-post BendPak lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description
QTY

1
5601143
RR Column Assembly (Power)
1

2
5595564
Cable, Lifting RR 34' 3"
1

3
5601141
RF Column Assembly
1

4
5595558
Cable, Lifting RF 13' 5"
1

5
5601141
LF Column Assembly
1

6
5595559
Cable, Lifting LF 19' 2"
1

7
5601141
LR Column Assembly
1

8
5595565
Cable, Lifting LR 39' 1"
1

9
5601246
Lock Ladder
4

10
5530046
Hex Bolt, M10 x 1.5 x 65mm
4

11
5545341
Flat Washer, M10 x 20 dia
8

12
5746369
Spacer, Safety Ladder, 30mm
4

13
5535013
Nut, M10 x 1.5 NL
4

14
5530456
Anchor Bolt 3/4" x 4-3/4"
16

15
5600410
Column Cover
4

16
5535212
Nut, M30 x 3.5
4

17
5545415
Flat Washer, M30 x 56mm
4

18
5535104
Nylock Nut, M30 x 3.5
4

19
5216170
Crossbeam, Rear
1

20
5530317
Hex Bolt, M6 x 1 x 136mm
4

21
5755158
Crossbeam Spacer, 102mm x 16 x 10
4

22
5535357
Roller Nut, M6 x 1.0 NL
4

23
5505129
Approach Ramp Pin
2

24
5755033
Long Hinge Tube
4

25
5215162
Extended Approach Ramp Assembly
2

26
5600266
Extended Approach Ramp Weldment
1

27
5530464
Screw, M10 x 1.5 x 24mm
3

28
5716089
Approach Ramp Edge Guard
1

29
5735465
Long Hinge Stop
2

30
5760003
Ramp Stop
2

31
5601833
Crossbeam, Front
1

32
5716633
Crossbeam Cover
4

33
5755012
Long Air Line Pipe 7' 9" x 13.5 x 9.5 dia
2

34
5755025
Short Air Line Pipe 10" x 13.5 x 9.5 dia
2

35
5601447
Runway, Left Side
1

36
5215240
Runway, Right Side (Power Side)
1

37
5700246
Wheel Chock
2

38
5620194
Wheel Stop Plate
2

39
5620241
Cable Sheave Pin
2

40
5735074
Shaft Stop
2

41
5731013
End Plate (Power Side)
2

42
5731019
End Plate
2

43
5755031
Hinge Tube
8

44
5731014
Support Plate
8

45
5215148
Ramp Sheave Roller Assembly
6

46
5716013
Sheave Spacer
6

47
5755114
Ramp Sheave Spacer
2

48
5746089
Sheave Shaft Pin
2

49
5505335
Hair Pin, 0.093" dia X 1-5/8"
4

50
5731015
Bottom Sheave Plate
2

51
5502162
Hydraulic Cylinder, 5.5mm x 60mm
1

52
5215152
Cylinder Flange Arm Assembly
1

53
5736147
Cable Retainer Plate
1

54
5620186
Cylinder Flange Arm Weldment
1

55
5530701
Button Head Phils Screw, M6 x 1 x 35
4

56
5716153
Flange Alignment Block
2

57
5535357
Roller Nut, M6 x 1.0 NL
4

58
5540112
Snap Ring
3

59
5545108
Flat Washer, M45 x 80mm
4

60
5215139
Crossbeam Sheave Assembly
4

61
5210358
Safety Weldment 2
4

62
5535101
Hex Nut Jam, 3/8-16
4

63
5505030
Rotor Clip, 10mm dia SS
5

64
5215143
Safety Roller
4

65
5505033
Rotor Clip, 16mm dia SS
8

66
5550376
Air Cylinder Adapter, 1"
4

67
5210359
Safety Weldment 1
4

68
5540002
E-Ring, 1.375" dia OD
16

69
5505125
Safety Pin
4

70
5540060
Slack Safety Spring, 178mm x 29mm
5

71
5505124
Crossbeam Sheave Pin
4

72
5716043
Slider Block
16

73
5502335
Air Cylinder, 75mm dia x 4.0" Stroke
4

74
5550087
Elbow Fitting -04 COMP x -02 NPT
4

75
5505031
E-Clip, 12mm dia SS
10

76
5700031
Mounting Bracket
1

77
5590175
Push Button Air Valve
1

78
5530043
Socket Head Cap Screw M3 x 0.5 x 30
2

79
5550486
Nipple Fitting -02 NPT x -04 F NPT
1

80
5545024
Flat Washer, M3 X 9mm
2

81
5535020
Nut, M3 x 0.5 NL
2

82
5715003
Vibration Dampener
1

83
5216139
Flex Tube Kit, 6' 6-3/4"
1

84
5700033
Flex Tube Angle
1

85
5700029
Flex Tube Bracket Plate
1

86
5570149
Hydraulic Hose Assembly, 17' 8" x 10
1

87
5550395
Tee Fitting -04 x -04 x -04 (Comp)
3

88
5550550
Elbow Fitting -06 JIC -06 NPT
1
