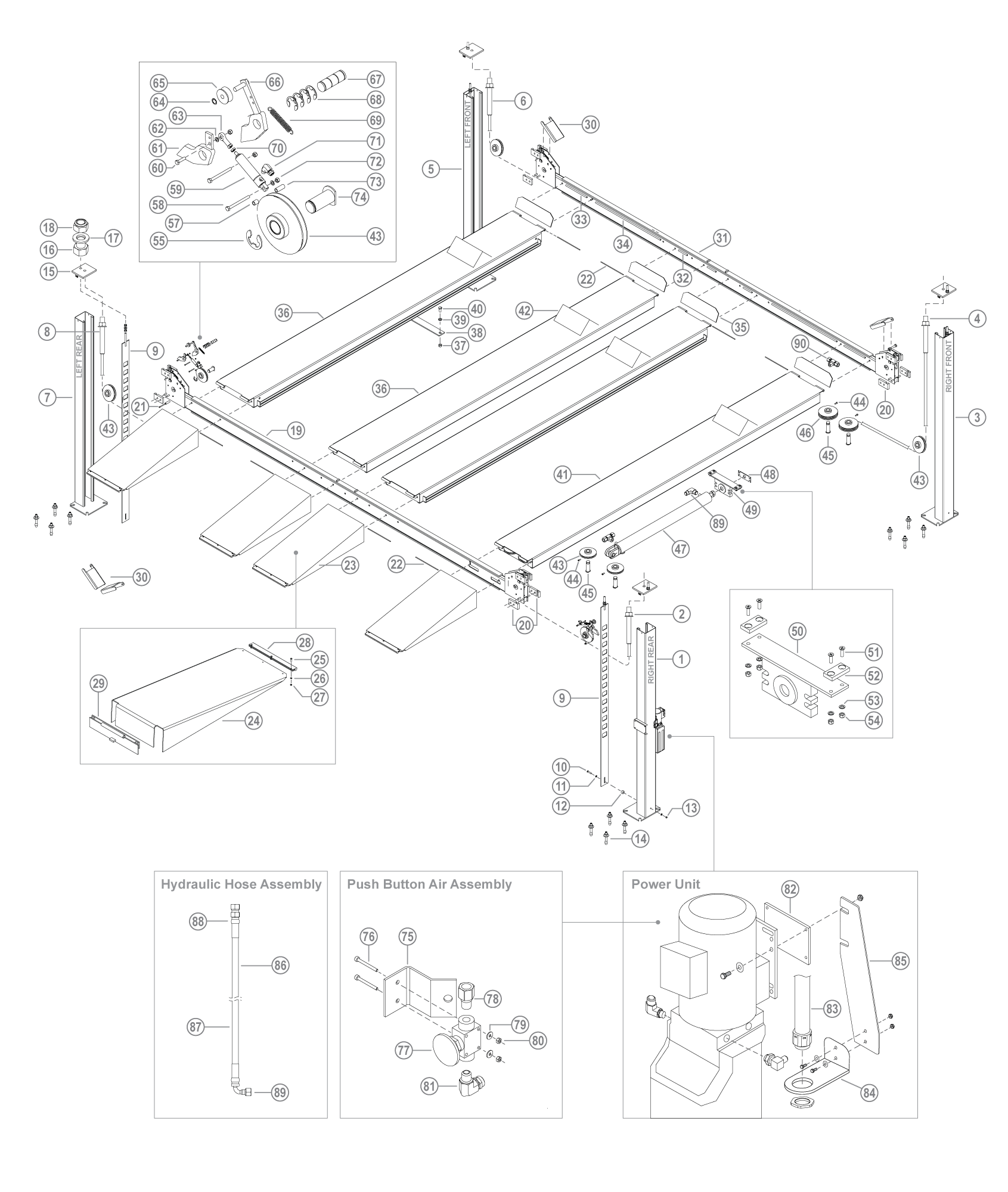

Parts for BendPak HD-9SWX

Above Ground / Surface Mount 4-Post Lifts – BendPak Lift – HD-9SWX.

SVI is the #1 Source for repair parts for BendPak Lifts. Whether you need cables, sheaves, cable / sheave revamp kits, slider blocks, power units, height extensions and pads, or another part for your 4-post BendPak lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description
QTY

1
5601127
RR Column Assembly (Power)
1

2
5595627
Cable, Lifting RR 26' 4"
1

3
5601126
RF Column Assembly
1

4
5595626
Cable, Lifting RF 10' 10"
1

5
5601126
LF Column Assembly
1

6
5595061
Cable, Lifting LF 23' 8"
1

7
5601126
LR Column Assembly
1

8
5595628
Cable, Lifting LR 39' 3"
1

9
5600917
Lock Ladder
4

10
5530167
Hex Bolt, M10 x 1.5 x 45mm
4

11
5545341
Flat Washer, M10 x 20 dia
8

12
5746381
Spacer, Safety Ladder, 17.5mm Lg
4

13
5535013
Nut M10 x 1.5 NL
4

14
5530456
Anchor Bolt 3/4" x 4-3/4"
16

15
5600405
Column Cover
4

16
5535021
Nut, M16 x 2.0
4

17
5545025
Flat Washer, M16 x 30mm
4

18
5535008
Nut, M16 x 2 NL
4

19
5601827
Crossbeam, Rear
1

20
5716005
Polyethylene Slide Block
16

21
5755157
Crossbeam Spacer, 50mm x 16 x 10
4

22
5745014
Approach Ramp Pin
8

23
5174665
Extended Approach Ramp Assembly
4

24
5600703
Extended Approach Ramp Weldment
1

25
5530093
Hex Bolt, M6 x 1.0 x 20mm
3

26
5545005
Flat Washer, M6 x 12mm
3

27
5535357
Roller Nut, M6 x 1.0 NL
3

28
5716054
Approach Ramp Edge Guard
1

29
5600722
Approach Ramp Tie Plate
1

30
5716630
Crossbeam Cover
4

31
5601828
Crossbeam, Front
1

32
5755022
Air Line Tubing, 4-3/4" x 13.5 x 9.5
3

33
5755018
Air Line Tubing, 11-5/8” x 13.5 x 9.5
2

34
5755020
Air Line Tubing, 36-1/8” x 13.5 x 9.5
2

35
5600890
Wheel Stop Plate
4

36
5600205
Runway, Left Side
3

37
5535012
Nut, M12 x 1.75 NL
6

38
5735663
Runway Strap, Left Side
3

39
5545347
Flat Washer, M12
6

40
5530375
Hex Bolt, M12 x 1.75 x 25 CL12.9
6

41
5215192
Runway, Right Side (Power Side)
1

42
5700072
Wheel Chock
4

43
5215122
Cable Sheave, Single
6

44
5530776
Socket Head Cap Screw M8 x 1.25 x 20
4

45
5600900
Cable Sheave Pin
4

46
5215123
Twin Sheave Assembly
2

47
5502166
Hydraulic Cylinder, 3.0mm x 82mm
1

48
5731309
Cable Retainer Plate
1

49
5215820
Cylinder Flange Arm Assembly
1

50
5601303
Cylinder Flange Arm
1

51
5530244
FHPS M6 x 1.0 x 20mm
4

52
5715031
Cylinder Cable Block Arm Slide
2

53
5545005
Flat Washer, M6 x 12mm
4

54
5535357
Roller Nut, M6 x 1.0 NL
4

55
5540010
E-Ring, 32mm dia OD
4

56
5755136
Air Cylinder Spacer, 12mm
4

57
5530005
Hex Bolt, M6 x 1 x 70mm
12

58
5502195
Air Cylinder, 19 dia x 25mm Stroke
4

59
5530756
Hex Bolt, M6 x 1.0 x 25mm
4

60
5600760
Safety Weldment
4

61
5545005
Flat Washer, M6 x 12mm
4

62
5505625
Female Rod End, M6 X 33mm
4

63
5505030
E-Clip, 10mm dia SS
4

64
5575420
Safety Roller Sheave
4

65
5600044
Light Duty Slack Safety Weldment
4

66
5746008
Safety Pin
4

67
5540275
E-Ring, 25mm dia OD
16

68
5540065
Slack Safety Spring, 13mm dia x 3-1/2"
4

69
5535230
Nut, 1/4-28 JN
4

70
5550087
Elbow Fitting -04 COMP x -02 NPT
4

71
5535357
Nut M6 x 1.0 NL
16

72
5755137
Air Cylinder Spacer 25mm
4

73
5600160
Crossbeam Sheave Pin
4

74
5700031
Mounting Bracket
1

75
5530043
Socket Head Cap Screw M3 x 0.5 x 30
2

76
5590175
Push Button Air Valve
1

77
5550486
Nipple Fitting -02 NPT x -04 F NPT
1

78
5545024
Flat Washer, M3 X 9mm
2

79
5535020
Nut, M3 x 0.5 NL
2

80
5715003
Vibration Dampener
1

81
5216139
Flex Tube Kit, Up To 6' 6-3/4"
1

82
5700033
Flex Tube Angle
1

83
5700029
Flex Tube Bracket Plate
1

84
5570238
Hydraulic Hose Assembly, 12' 8" x 6.4
1

85
5550395
Tee Fitting -04 x -04 x -04 (Comp)
3

86
5550106
Elbow Fitting -04JIC x 3/8” NPT
1
