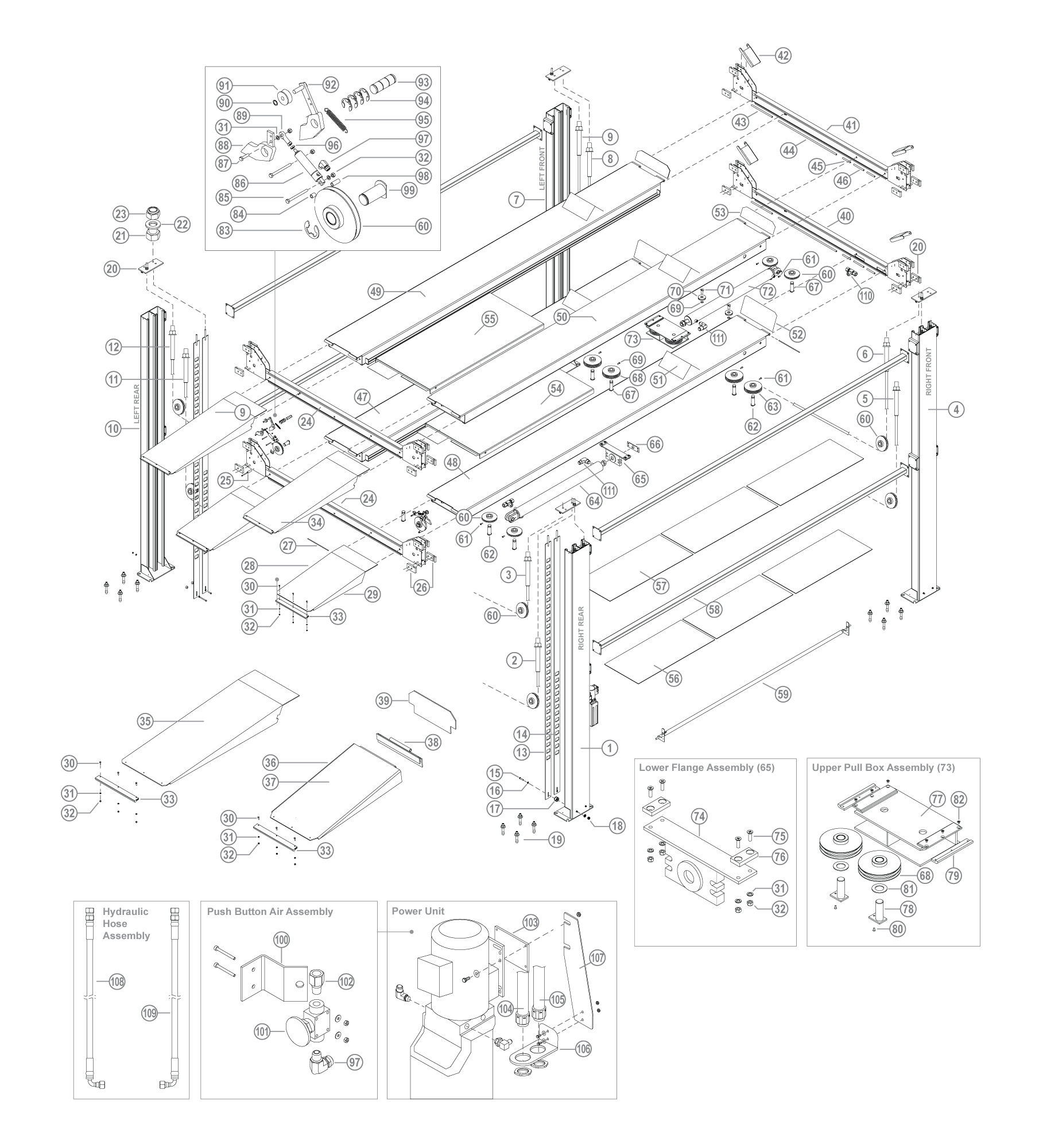

Parts for BendPak HD-973PX Parking Lift
Above Ground / Surface Mount 4-Post Lifts – BendPak Lift – HD-973PX Parking.
SVI is the #1 Source for repair parts for BendPak Lifts. Whether you need cables, sheaves, cable / sheave revamp kits, slider blocks, power units, height extensions and pads, or another part for your 4-post BendPak lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day. Looking for a specific model breakdown or part? Contact SVI today!
1
5601386
Right Rear Column (Power)
1
2
5595590
Lower Cable, Lifting RR 96"
1
3
5595594
Top Cable, Lifting RR 197"
1
4
5601387
Left Rear Column
1
5
5595591
Lower Cable, Lifting LR 297"
1
6
5595595
Top Cable, Lifting LR 261"
1
7
5601387
Right Front Column
1
8
5595592
Lower Cable, Lifting RF 433"
1
9
5595596
Top Cable, Lifting RF 383"
1
10
5601392
Left Front Column
1
11
5595593
Lower Cable, Lifting LF 495"
1
12
5595597
Top Cable, Lifting LF 445"
1
14
5601381
Lower Lock Ladder
4
15
5530167
Hex Bolt, M10 x 1.5 x 45mm
4
16
5545341
Flat Washer, M10 x 20 dia
16
17
5746381
Lock Ladder Spacer, 17.5mm Lg
8
18
5535013
Nut, M10 x 1.5 NL
8
19
5530337
AB 3/4" x 6.3"
16
21
5535021
Nut, M16 x 2.0mm
8
22
5545025
Flat Washer, M16 x 30mm
8
23
5535008
Nut, M16 x 2.0 NL
8
25
5755157
Crossbeam Spacer, 50mm 16 x 10 dia
2
27
5745014
Approach Ramp Pin
8
28
5215193
Approach Ramp Assembly
2
29
5600891
Approach Ramp Weldment
1
30
5530093
Hex Bolt, M6 x 1.0 x 20mm
3
31
5545005
Flat Washer, M6 X 12mm
3
32
5535357
Nut M6 X 1.0 NL
3
33
5716054
Approach Ramp Edge Guard
1
34
5215131
Extended Approach Ramp Assembly
2
35
5600209
Approach Ramp Weldment
1
36
5174220
Aluminum Approach Ramp Assembly
2
37
5600668
Aluminum Approach Ramp Weldment
1
38
5600722
Approach Ramp Tie Plate
1
39
5735728
Lower Drop-in Tire Stop
2
40
5216157
Front Lower Crossbeam
1
41
5216156
Front Upper Crossbeam
1
42
5716630
Crossbeam Cover
8
43
5755018
Air line Tubing 11-5/8” x 13.5 x 9.5
1
44
5755020
Air line Tubing 36-1/8” x 13.5 x 9.5
1
45
5755022
Air Line Tubing, 4-3/4" x 13.5 x 9.5
2
46
5755021
Air Line Tubing, 7-1/4" x 13.5 x 9.5
1
47
5601383
Lower Runway, Left Side
1
48
5215850
Lower Runway, Right Side (Power)
1
49
5601389
Upper Runway, Left Side
1
50
5215851
Upper Runway, Right Side (Power)
1
52
5601356
Lower Wheel Stop
2
53
5600890
Upper Wheel Stop
2
54
5601384
Aluminum Short Deck
1
55
5601385
Aluminum Long Deck
3
56
5701783
Plastic Ramp Cover, 41"
8
57
5701784
Plastic Ramp Cover, 44"
8
59
5215852
Micro Switch Stop Bar
1
60
5215122
Cable Sheave, Single
12
61
5530776
Socket Head Cap Screw M8x1.25x20
8
63
5215123
Twin Sheave Assembly
2
64
5502038
Hydraulic Cylinder, 2.75mm x 76"
1
65
5215910
Cylinder Flange Arm Assembly
1
66
5731309
Cable Retainer Plate
1
68
5215185
Twin Cable Sheave Assembly
2
69
5505032
Rotor Clip, 18mm dia SS
2
70
5575103
Directional Sheave
2
71
5600301
Directional Sheave Pin
2
72
5502036
Hydraulic Cylinder, 3.5mm x 76"
1
73
5215819
Pull Box Assembly
1
74
5601466
Cylinder Flange Arm
1
75
5530244
Full Head Phillips Screw M6 x 1.0 x 20
4
76
5715031
Cylinder Flange Arm Slide
2
77
5601301
Cable Sheave Pull Box Weldment
1
78
5600199
Cable Sheave Pin
2
80
5530400
Full Head Phillips Screw M6 x 1.0 x 12
2
81
5716160
Cable Sheave Wear Ring
2
82
5530058
Full Head Phillips Screw M6 x 1.0 x 10
6
83
5540010
Retaining Ring, 32mm dia OD
2
84
5755136
Air Cylinder Spacer, 12mm
2
85
5530005
Hex Bolt, M6 x 1 x 70mm
6
86
5502195
Air Cylinder, 19mm dia x 25mm Stroke
2
87
5530756
Hex Bolt, M6 x 1.0 x 25mm
2
88
5600760
Safety Weldment, Light Duty
2
89
5505625
Female Rod End, M6 x 33mm
2
90
5505030
Push-On Clip, 10mm dia SS
2
91
5575420
Safety Roller Sheave
2
92
5600044
Slack Safety Weldment, Light Duty
2
94
5540275
Retaining Ring, 25mm dia OD
8
95
5540065
Slack Safety Spring, 90mm x 13 dia
2
97
5550087
Elbow Fitting -04 Comp x -02 NPT
2
98
5755137
Air Cylinder Spacer, 25mm
2
99
5600160
Crossbeam Sheave Pin
2
100
5700031
Mounting Bracket
1
101
5590175
Push Button Air Valve
1
102
5550486
Nipple Fitting -02 NPT x -04 F NPT
1
103
5715003
Vibration Dampener
1
104
5216139
Flex Tube Kit, Up To 79"
1
105
5216141
Flex Tube Kit, Up To 118"
1
106
5700365
Double Flex Tube Angle
1
107
5700381
Flex Tube Bracket
1
108
5570231
Hydraulic Hose Assembly, 12' 6" x 6.4
1
109
5570232
Hydraulic Hose Assembly, 18' 4" x 6.4
1
110
5550395
Tee Fitting -04 x -04 x -04 (Comp)
8
111
5550106
Elbow Fitting -04JIC x 3/8” NPT
2
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
