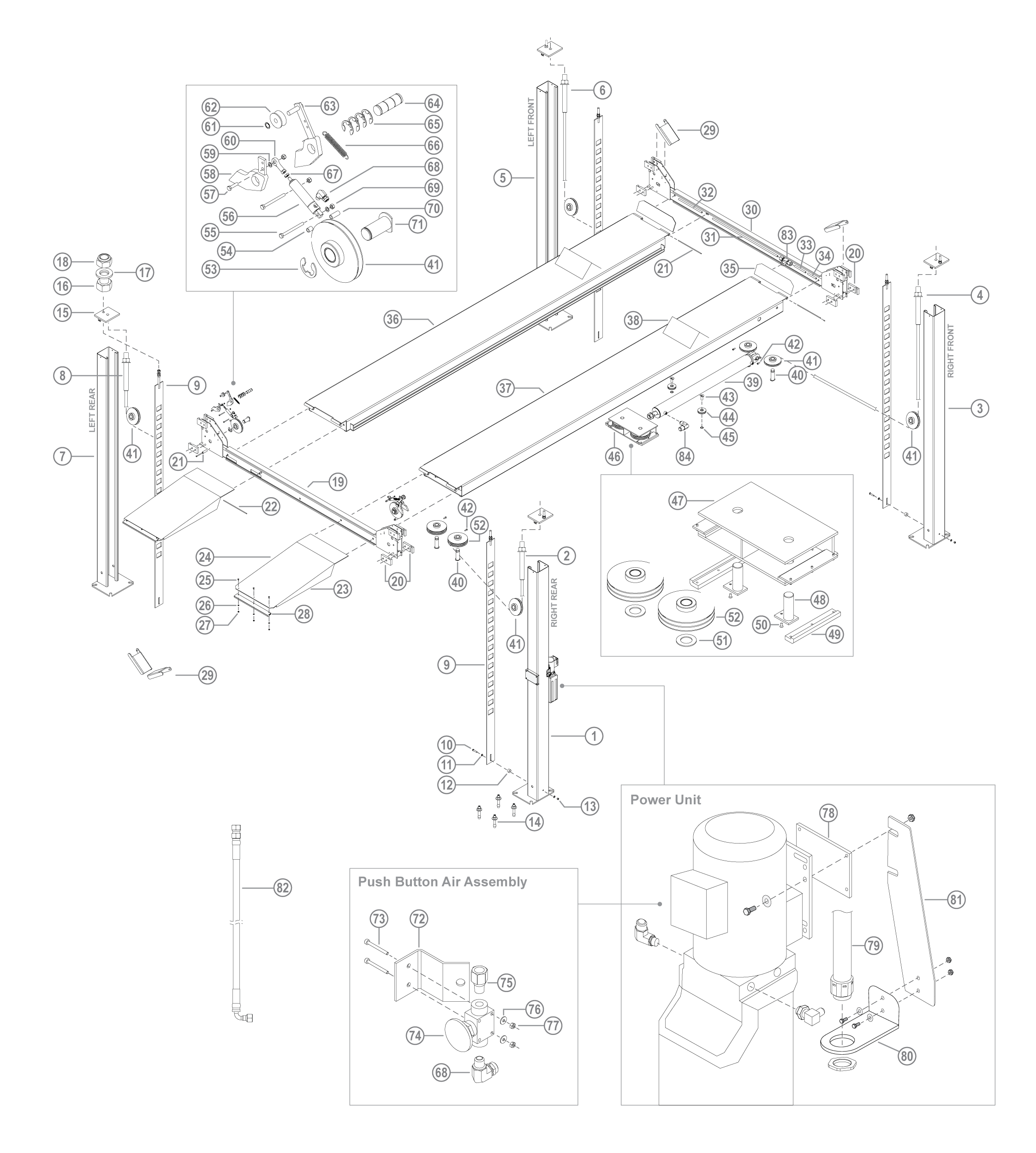

Above Ground / Surface Mount 4-Post Lifts – BendPak Lift – HD-7P
SVI is the #1 Source for repair parts for BendPak Lifts. Whether you need cables, sheaves, cable / sheave revamp kits, slider blocks, power units, height extensions and pads, or another part for your 4-post BendPak lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.
Looking for a specific model breakdown or part? Contact SVI today!
1
5601134
Right Rear Column (Power)
1
2
5595473
Lifting Cable, RR 200-3/4"
1
3
5601133
Right Front Column
1
4
5595917
Lifting Cable, RF 365"
1
5
5601133
Left Front Column
1
6
5595022
Lifting Cable, LF 429"
1
7
5601133
Left Rear Column
1
8
5595454
Lifting Cable, LR 264-3/4"
1
10
5530167
Hex Bolt, M10 X 1.5 X 45mm
4
11
5545341
Flat Washer, M10 x 20 dia
8
12
5746381
Lock Ladder Spacer, 17.5mm Lg
4
13
5535013
Nut, M10 X 1.5 NL
4
14
5530456
Anchor Bolt 3/4" x 4-3/4"
16
16
5535021
Nut, M16 X 2.0mm
4
17
5545025
Flat Washer, M16 x 30mm
4
18
5535008
Nut, M16 X 2 NL
4
19
5601822
Crossbeam, Rear
1
20
5716005
Polyethylene Slider Block
16
21
5755157
Crossbeam Spacer, 50mm x 16 x 10
2
22
5745014
Approach Ramp Pin
4
23
5215193
Approach Ramp Assembly
2
24
5600891
Approach Ramp Weldment
1
25
5530093
Hex Bolt, M6 x 1.0 x 20mm
3
26
5545005
Flat Washer, M6 x 12mm
3
27
5535357
Nut, M6 x 1.0 NL
3
28
5716054
Ramp Edge Guard
1
29
5716630
Crossbeam Cover
4
30
5601823
Crossbeam, Front
1
31
5755020
Air Line Tubing, 36-1/8” x 13.5 x 9.5
2
32
5755018
Air Line Tubing, 11-5/8” x 13.5 x 9.5
2
33
5755021
Air Line Tubing, 7-1/4" x 13.5 x 9.5
2
34
5755022
Air Line Tubing, 4-3/4" x 13.5 x 9.5
2
35
5600890
Wheel Stop Plate
2
36
5600215
Runway, Left Side
1
37
5215170
Runway, Right Side (Power Side)
1
39
5502112
Hydraulic Cylinder, 3.5" x 41"
1
41
5215122
Cable Sheave, Single
6
42
5530776
Socket Head Cap Screw M8 x 1.25 x 20
4
43
5600301
Directional Sheave Pin
2
44
5575103
Directional Sheave, 3”
2
45
5505032
Rotor Clip, 18mm dia SS
2
46
5215186
Cable Sheave Pull Box Assembly
1
47
5600300
Cable Sheave Pull Box Weldment
1
48
5600199
Cable Sheave Pin
2
49
5716161
Polyethylene Slider Block
2
50
5530400
Full Head Phillips Screw M6 x 1.0 x 12
2
51
5716160
Cable Sheave Wear Ring
2
52
5215185
Twin Cable Sheave Assembly
4
53
5540010
E-Ring, 32mm dia OD DIN 6799
4
54
5755136
Air Cylinder Spacer, 12mm
4
55
5530005
Hex Bolt, M6 x 1 x 70mm
12
56
5502195
Air Cylinder, 19mm dia x 25mm Stroke
4
57
5530756
Hex Bolt, M6 x 1.0 x 25mm
4
58
5600760
Safety Weldment
4
59
5545005
Flat Washer, M6 x 12mm
4
60
5505625
Female Rod End, M6 x 33mm
4
61
5505030
E-Clip, 10mm dia SS
4
62
5575420
Safety Roller Sheave
4
63
5600044
Light Duty Slack Safety Weldment
4
65
5540275
Retaining Ring, 25mm dia OD
16
66
5540065
Slack Safety Spring, 13mm dia x 3-1/2"
4
68
5550087
Elbow Fitting -04 Comp X -02 NPT
4
69
5535357
Nut, M6 x 1.0 NL
16
70
5755137
Air Cylinder Spacer, 25mm
4
71
5600160
Crossbeam Sheave Pin
4
72
5700031
Mounting Bracket
1
73
5530043
Socket Head Cap Screw M3 x 0.5 x 30
2
74
5590175
Push Button Air Valve
1
75
5550486
Nipple Fitting -02 NPT x -04 F NPT
1
76
5545024
Flat Washer, M3 x 9mm
2
77
5535020
Nut, M3 x 0.5 NL
2
78
5715003
Vibration Dampener
1
79
5216139
Flex Tube Kit, Up To 2000mm
1
80
5700033
Flex Tube Angle
1
81
5700029
Flex Tube Bracket Plate
1
82
5570874
Hydraulic Hose Assembly, 98-1/8" x 6.4
1
83
5550395
Tee Fitting -04 x -04 x -04 (Comp)
3
84
5550106
Elbow Fitting -04 JIC x 3/8” NPT
1
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
