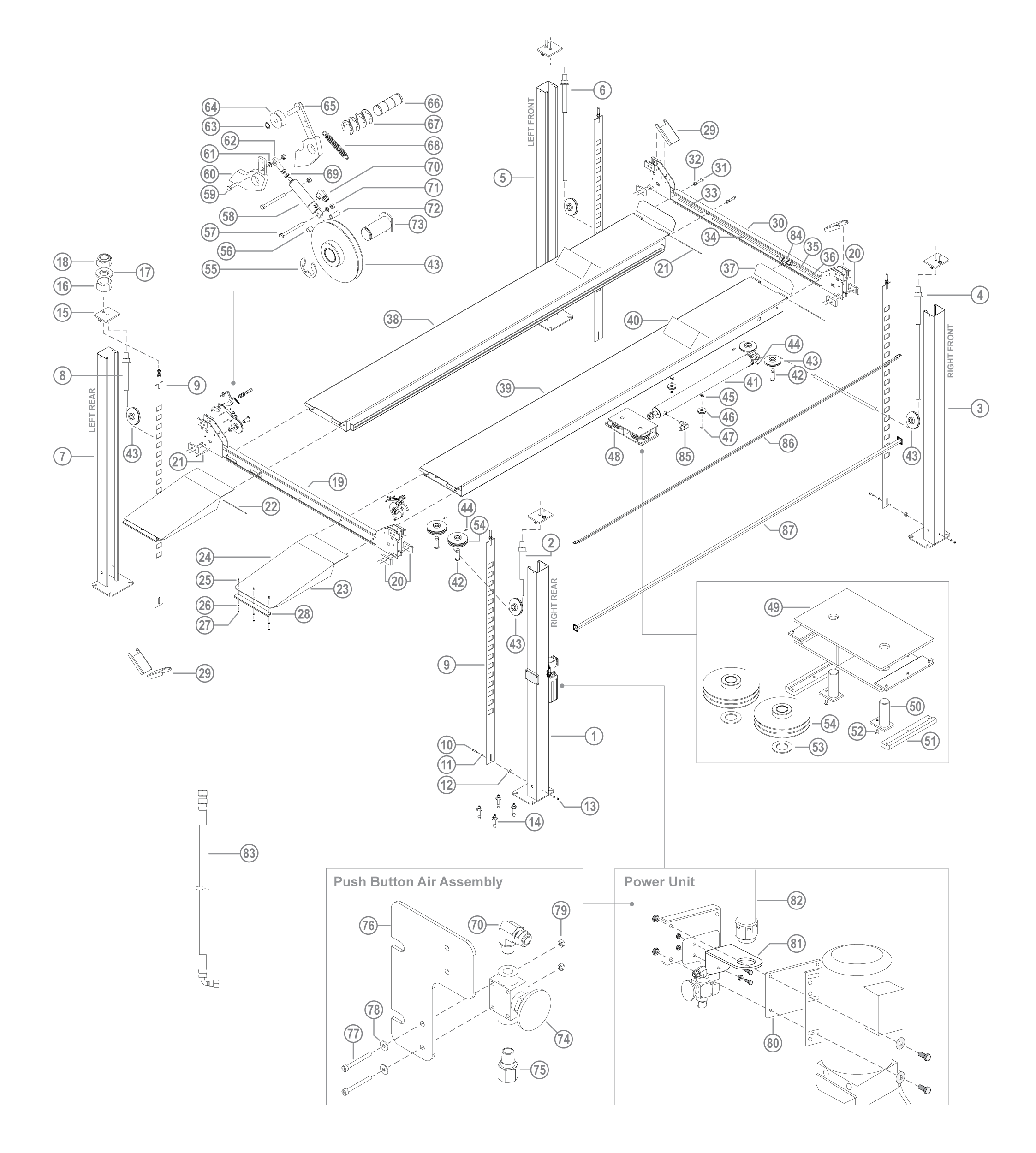

Parts for BendPak HD-7PXW
Above Ground / Surface Mount 4-Post Lifts – BendPak Lift – HD-7P
SVI is the #1 Source for repair parts for BendPak Lifts. Whether you need cables, sheaves, cable / sheave revamp kits, slider blocks, power units, height extensions and pads, or another part for your 4-post BendPak lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.
Looking for a specific model breakdown or part? Contact SVI today!
1
5601140
Right Rear Column (Power)
1
2
5595467
Cable, Lifting RR 224-1/2"
1
3
5601410
Right Front Column
1
4
5595469
Cable, Lifting RF 412-3/4"
1
5
5601139
Left Front Column
1
6
5595055
Cable, Lifting LF 475-1/4"
1
7
5601410
Left Rear Column
1
8
5595053
Cable, Lifting LR 287-1/2"
1
10
5530167
Hex Bolt, M10 X 1.5 X 45mm
4
11
5545341
Flat Washer, M10 x 20 dia
8
12
5746381
Lock Ladder Spacer, 17.5mm Lg
4
13
5535013
Nut M10 X 1.5 Nl
4
14
5530456
Anchor Bolt 3/4" x 4-3/4"
16
17
5545025
Flat Washer, M16 X 30mm
4
18
5535008
Nut, M16 X 2 NL
4
19
5601822
Crossbeam, Rear
1
20
5716005
Polyethylene Slider Block
16
21
5755157
Crossbeam Spacer 50mm x 16 x 10
2
22
5745014
Approach Ramp Pin
4
23
5215193
Approach Ramp Assembly
2
24
5600891
Approach Ramp Weldment
1
25
5530093
Hex Bolt, M6 x 1.0 x 20mm
3
26
5545005
Flat Washer, M6 X 12mm
3
27
5535357
Nut M6 X 1.0 NL
3
28
5716054
Ramp Edge Guard
1
29
5716630
Crossbeam Cover
4
30
5601823
Crossbeam, Front
1
31
5530756
Hex Bolt, M6 x 1.0 x 25mm
8
32
5535357
Nut M6 X 1.0 Nl
8
33
5755018
Air Line Tubing, 11-5/8” x 13.5 x 9.5
2
34
5755020
Air Line Tubing, 36-1/8” x 13.5 x 9.5
2
35
5755021
Air Line Tubing, 7-1/4" x 13.5 x 9.5
2
36
5755022
Air Line Tubing, 4-3/4" x 13.5 x 9.5
2
37
5600890
Wheel Stop Plate
2
38
5600206
Runway, Left Side
1
39
5215171
Runway, Right Side (Power Side)
1
41
5502035
Hydraulic Cylinder, 3.5" x 70"
1
43
5215122
Cable Sheave, Single
6
44
5530776
Socket Head Cap Screw M8 x 1.25 x 20
4
45
5600301
Directional Sheave Pin
2
46
5575103
Directional Sheave, 3”
2
47
5505032
Rotor Clip, 18mm dia SS
2
48
5215186
Cable Sheave Pull Box Assembly
1
49
5600300
Cable Sheave Pull Box Weldment
1
50
5600199
Cable Sheave Pin
2
51
5716161
Polyethylene Slider Block
2
52
5530400
Full Head Phillips Screw M6 x 1.0 x 12
2
53
5716160
Cable Sheave Wear Ring
2
54
5215185
Twin Cable Sheave Assembly
4
55
5540010
E-Ring, 32mm dia OD
4
56
5755136
Air Cylinder Spacer, 12mm
4
57
5530005
Hex Bolt, M6 x 1 x 70mm
12
58
5502195
Air Cylinder, 19 dia x 25mm Stroke
4
59
5530756
Hex Bolt, M6 x 1.0 x 25mm
4
60
5600760
Safety Weldment
4
61
5545005
Flat Washer, M6 x 12mm
4
62
5505625
Female Rod End, M6 x 33mm
4
63
5505030
E-Clip, 10mm dia SS
4
64
5575420
Safety Roller Sheave
4
65
5600044
Light Duty Slack Safety Weldment
4
67
5540275
E-Ring, 25mm dia OD
16
68
5540065
Slack Safety Spring, 13mm dia x 3-1/2"
4
70
5550087
Elbow Fitting -04 Comp x -02 NPT
4
71
5535357
Nut, M6 x 1.0 NL
16
72
5755137
Air Cylinder Spacer, 25mm
4
73
5600160
Crossbeam Sheave Pin
4
74
5590175
Push Button Air Valve
1
75
5550486
Nipple Fitting -02 NPT x -04 F NPT
1
76
5731004
Flex Tube Bracket
1
77
5530043
Socket Head Cap Screw M3 x 0.5 x 30
2
78
5545024
Flat Washer, M3 x 9mm
2
79
5535020
Nut, M3 X 0.5 NL
2
80
5715003
Vibration Dampener
1
81
5700033
Flex Tube Angle
1
82
5216141
Flex Tube Kit, Up To 3000mm
1
83
5570876
Hydraulic Hose Assembly, 161" x 6.4
1
84
5550395
Tee Fitting -04 x -04 x -04 (Comp)
3
85
5550106
Elbow Fitting -04JIC x 3/8” NPT
1
87
5601411
Bottom Stiffener
2
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
