Above Ground / Surface Mount 4-Post Lifts – BendPak Lift – HD-7P
SVI is the #1 Source for repair parts for BendPak Lifts. Whether you need cables, sheaves, cable / sheave revamp kits, slider blocks, power units, height extensions and pads, or another part for your 4-post BendPak lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.
Looking for a specific model breakdown or part? Contact SVI today!

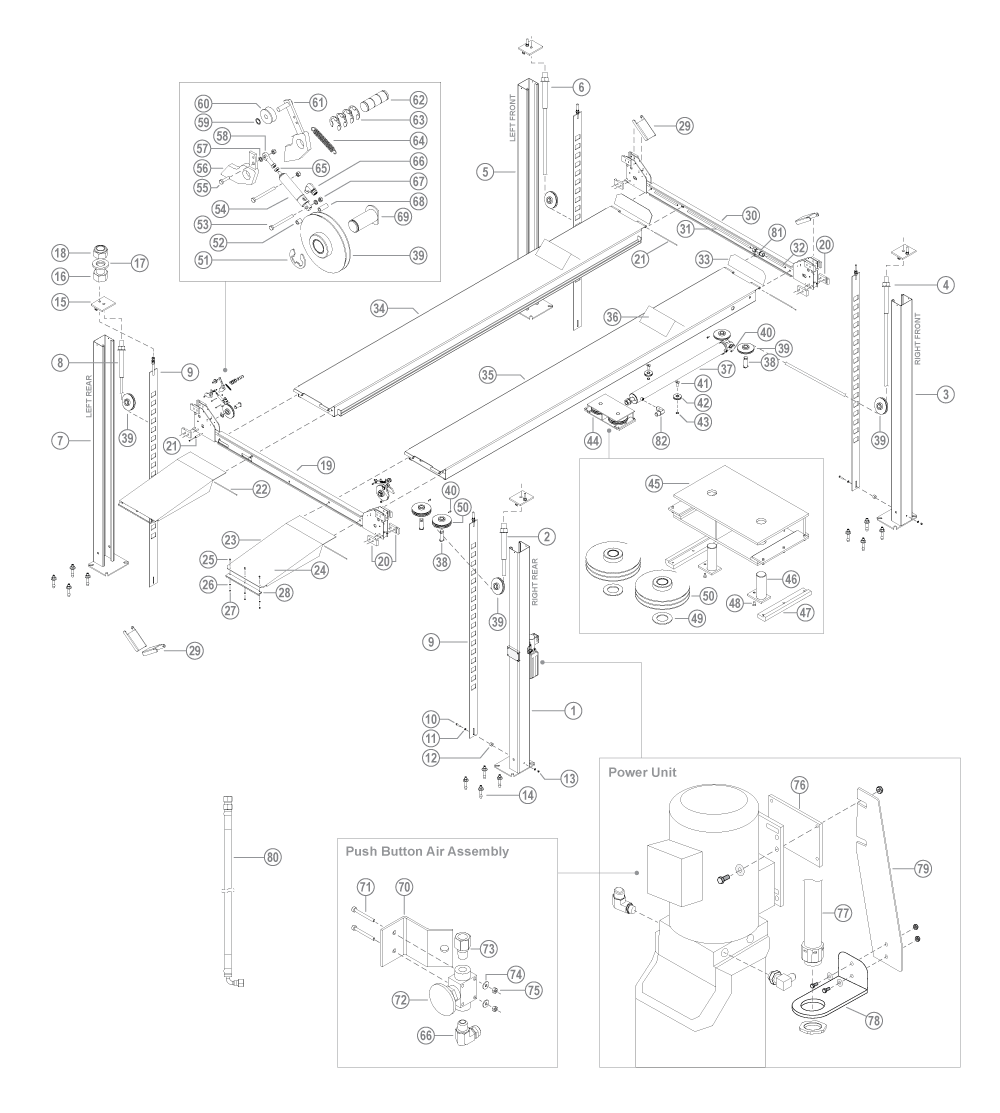

1
5601134
RR Column Assembly (Power)
1
2
5595012
Cable, Lifting RR 16' 7-3/8"
1
3
5601133
RF Column Assembly
1
4
5595014
Cable, Lifting RF 30' 3-3/8”
1
5
5601133
LF Column Assembly
1
6
5595015
Cable, Lifting LF 34' 11-5/8"
1
7
5601133
LR Column Assembly
1
8
5595013
Cable, Lifting LR 21' 2-7/8”
1
10
5530167
Hex Bolt, M10 x 1.5 x 45mm
4
11
5545341
Flat Washer, M10 x 20 dia
8
12
5746381
Lock Ladder Spacer, 17.5mm Lg
4
13
5535013
Nut, M10 x 1.5 NL
4
14
5530456
Anchor Bolt 3/4" x 4-3/4"
16
16
5535021
Nut, M16 x 2.0mm
4
17
5545025
Flat Washer, M16 x 30mm
4
18
5535008
Nut, M16 x 2.0 NL
4
19
5601810
Crossbeam Assembly, Rear
1
21
5755157
Crossbeam Spacer, 50mm 16 x 10 dia
2
22
5745014
Approach Ramp Pin
4
23
5215193
Approach Ramp Assembly
2
24
5600891
Approach Ramp Weldment
1
25
5530093
Hex Bolt, M6 x 1.0 x 20mm
3
26
5545005
Flat Washer, M6 X 12mm
3
27
5535357
Nut M6 X 1.0 NL
3
28
5716054
Ramp Edge Guard
1
29
5716630
Crossbeam Cover
4
30
5601809
Crossbeam Assembly, Front
1
31
5755020
Air line Tubing 3' 1/8” x 1/2" x 3/8" dia
2
32
5755018
Air line Tubing 11-5/8” x 1/2" x 3/8" dia
4
34
5600215
Runway, Left Side
1
35
5215170
Runway, Right Side (Power Side)
1
37
5502112
Hydraulic Cylinder, 3.5" x 41"
1
39
5215122
Cable Sheave, Single
6
40
5530776
Socket Head Cap Screw M8 x 20mm
4
41
5600301
Directional Sheave Pin
2
42
5575103
Directional Sheave, 3”
2
43
5505032
Rotor Clip, 18mm dia SS
2
44
5215186
Cable Sheave Pull Box Assembly
1
45
5600300
Cable Sheave Pull Box Weldment
1
46
5600199
Cable Sheave Pin
2
48
5530400
Full Head Phillips Screw M6 x 1.0 x 12
2
49
5716160
Cable Sheave Wear Ring
2
50
5215185
Twin Cable Sheave Assembly
4
51
5540010
Retaining Ring, 32mm dia OD
4
52
5755136
Air Cylinder Spacer, 12mm
4
53
5530005
Hex Bolt, M6 x 1 x 70mm
12
54
5502195
Air Cylinder, 19mm dia x 25mm Stroke
4
55
5530756
Hex Bolt, M6 x 1.0 x 25mm
4
56
5600760
Safety Weldment, Light Duty
4
57
5545005
Flat Washer, M6 x 12mm
8
58
5505625
Female Rod End, M6 x 33mm
4
59
5505030
Push-On Clip, 10mm dia SS
4
60
5575420
Safety Roller Sheave
4
61
5600044
Slack Safety Weldment, Light Duty
4
63
5540275
Retaining Ring, 25mm dia OD
16
64
5540065
Slack Safety Spring, 90mm x 13 dia
4
66
5550087
Elbow Fitting -04 Comp x -02 NPT
4
67
5535357
Nut, M6 x 1.0 NL
16
68
5755137
Air Cylinder Spacer, 25mm
4
69
5600160
Crossbeam Sheave Pin
4
70
5700031
Mounting Bracket
1
71
5530043
Socket Head Cap Screw M3 x 0.5 x 30
2
72
5590175
Push Button Air Valve
1
73
5550486
Nipple Fitting -02 NPT X -04 F NPT
1
74
5545024
Flat Washer, M3 x 9mm
2
75
5535020
Nut, M3 x 0.5 NL
2
76
5715003
Vibration Dampener
1
78
5700033
Flex Tube Angle
1
79
5700029
Flex Tube Bracket Plate
1
80
5570874
Hydraulic Hose Assy 8' 2-1/8" x 6.4 dia
1
81
5550395
Tee Fitting -04 x -04 x -04 (COMP)
3
82
5550106
Elbow Fitting -04JIC x 3/8” NPT
1
