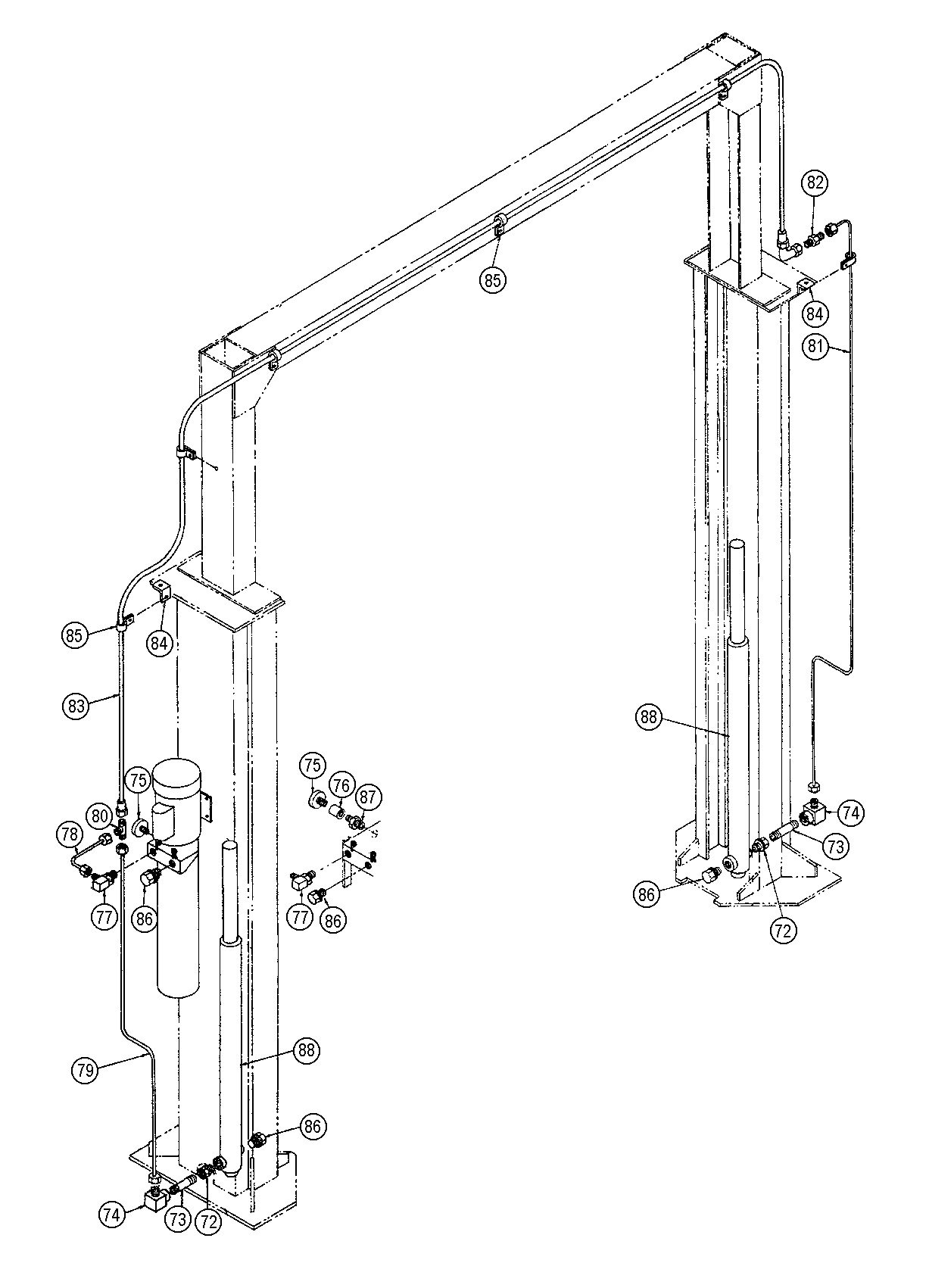

Parts for Ben Pearson TPAO Hydraulic System

Above Ground / Surface Mount 2-Post Lifts – Ben Pearson – TPOA

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

72
80992
2
Female Adapter

73
100225
2
Pipe Nipple 1/4 x 5

74
100227
2
90° Elbow

75
80124
1
Dry Pressure Gauge

76
82066
1
Coupling (MTE Only)

77
82056
1
90° Male Elbow

78
82198
1
Tube Assy Upper 1/2 OD

79
82200
1
Tube Assy Lower 1/2 OD

80
100226
1
Union Tee 3/4-16 JIC

81
81898
1
Tube Assy Offside 1/2 OD

82
100230
1
Union Connector 3/4-16 JIC

83
81900
1
Hose Assy 3/8 ID x 3/4-16

84
81901
2
Hose Clamp Bracket

85
61412
6
Hose Clamp

86
100026
5
Hex Head Plug

87
61496
1
Hex Nipple (MTE Only)

88
81921
2
Hydraulic Cylinder

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
