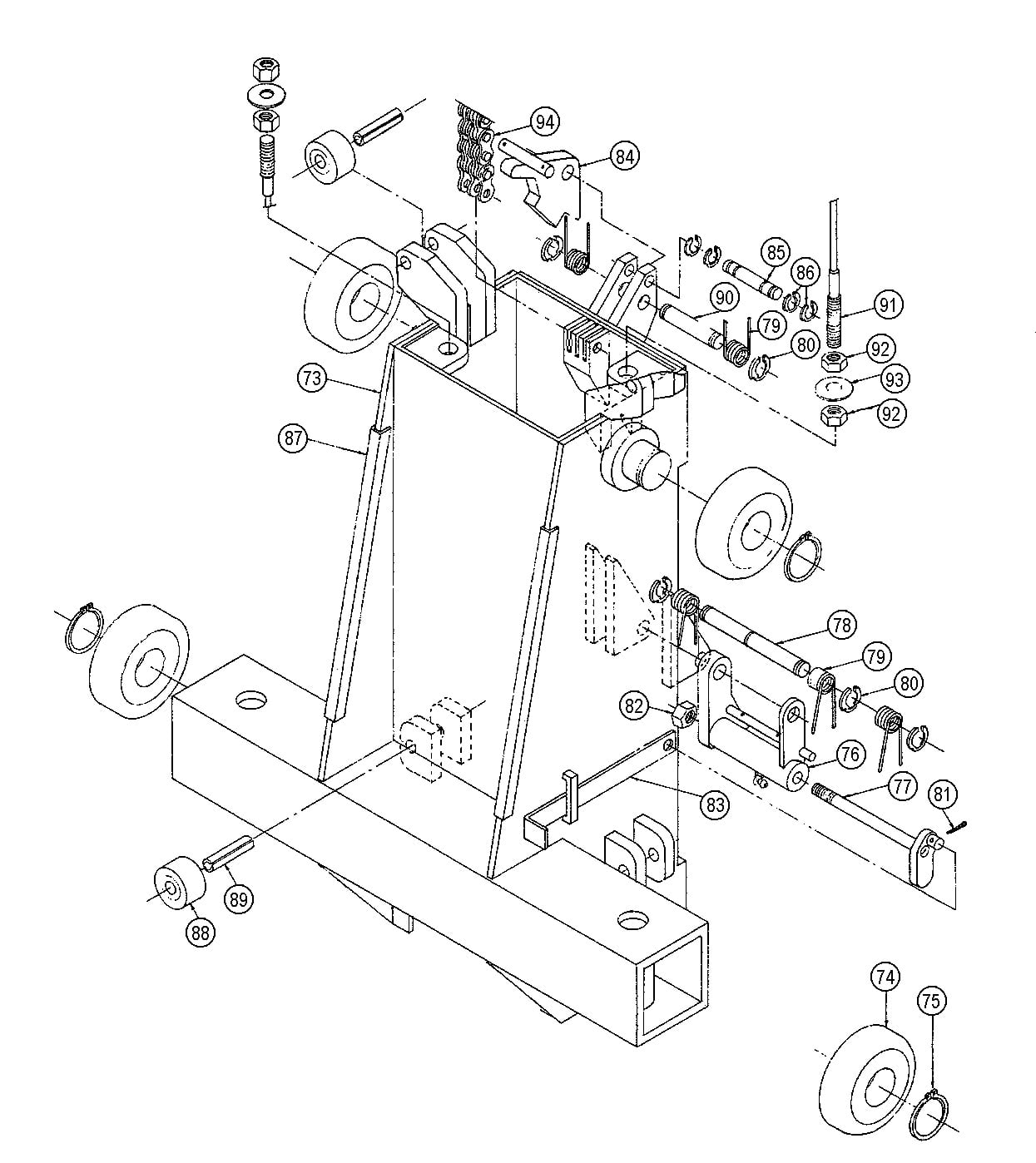

Parts for Ben Pearson LMP 7 Carriage Assembly

Above Ground / Surface Mount 2-Post Lifts – Ben Pearson – LMP 7

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

KIT
81824
2
Carriage Assembly (Consists of #’s 73-90)

73
82310
1
Carriage Structure

74
81446
4
Carriage Roller

75
100089
4
Retaining Ring

76
82756K
1
Latch Assembly

77
81842
1
Cam Structure

78
82760
1
Pivot Latch Shaft

79
80739
5
Torsion Spring

80
80738
5
Retaining Ring

81
100233
1
Cotter Pin

82
81082
1
Nylock Nut

83
81849
1
Cam Lever

84
82171
1
Latch Structure

85
82173
1
Pin

86
80683
4
Retaining Ring

87
81850
2
Bumper Pad

88
80176
4
Cam Yolk Roller

89
100302
4
Roll Pin

90
80737
1
Shaft

91
82743
1
Cable Assy LMP 7 >41833

91
80696
1
Cable Assy LMP 7 <41833

91
81926
1
Cable Assy LMP 9 >41937

91
82742
1
Cable Assy LMO 7

91
81927
1
Cable Assy LMO 9

92
100157
4
Hex Nut LMO 7 & LMP 7

92
100073
4
Hex Nut LMO 9 & LMP 9

93
100141
4
Flat Washer LMO 7 & LMP 7

94
81823
1
Chain
