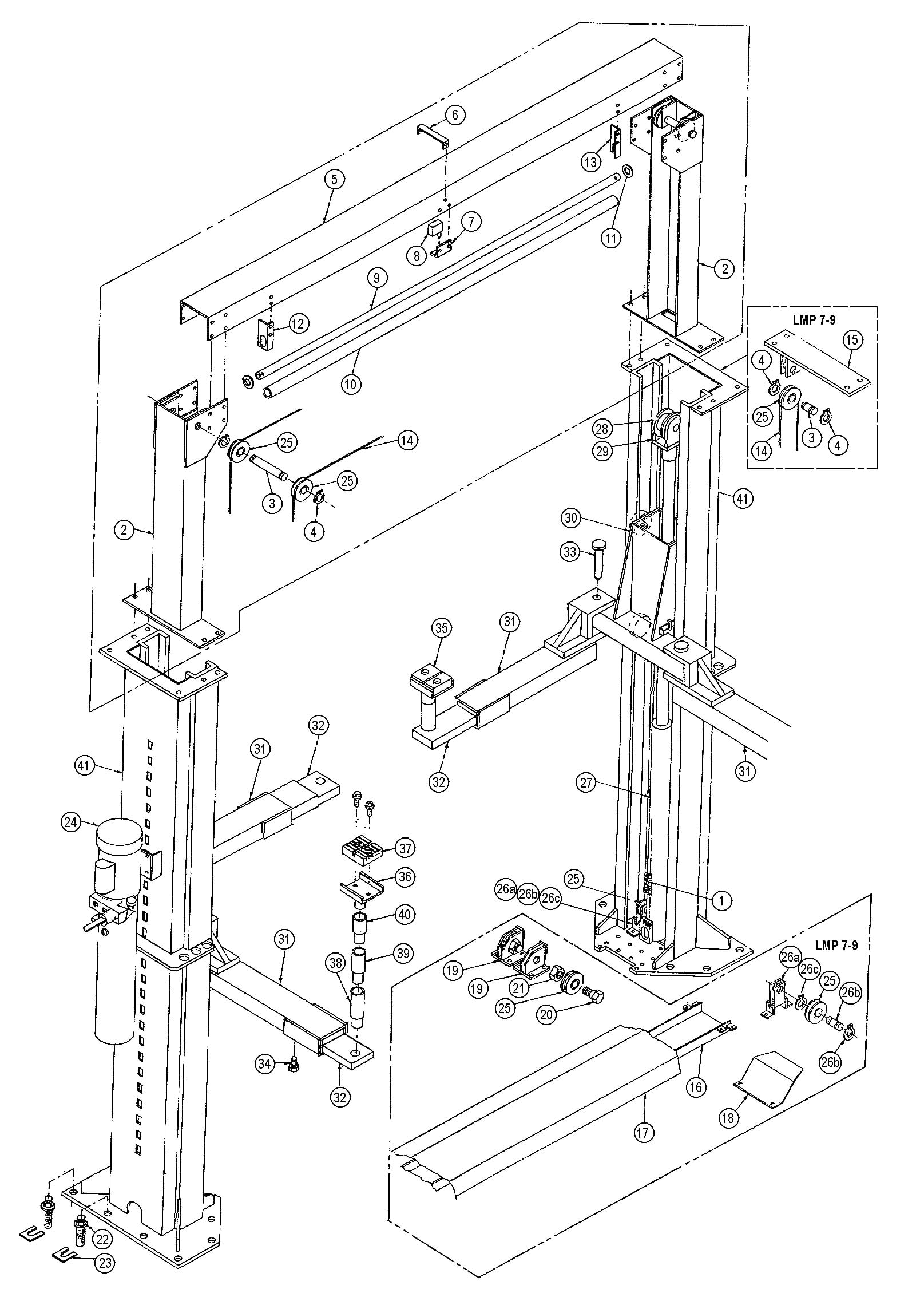

Parts for Ben Pearson LMO 7

Above Ground / Surface Mount 2-Post Lifts – Ben Pearson – LMO 7

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
81823
2
Chain

2
81852
2
Channel Structure Post Ext

3
81911
2
Top Idler Pin LMO 7 & 9

3
81819
2
Top Idler Pin LMP 7 & 9

4
80864
4
Retaining Ring

5
81859
1
Cross Over Channel

6
81906
1
Cable Support Strap

7
81864
1
Switch Support Angle

8
80282
1
Micro Switch

--
81910
1
Cover Switch

9
82856
1
Pipe Bumper

10
81863
1
Tubing Bumper

11
100224
2
Flat Washer

12
81860
1
Angle Support LH

13
81861
1
Angle Support TH

14
82742
2
Cable Assy LMO 7

14
81927
2
Cable Assy LMO 9

14
82743
2
Cable Assy LMP 7 >41833

14
80696
2
Cable Assy LMP 7 <41833

14
81926
2
Cable Assy LMP 9 >41937

15
81917
2
Top Idler Support Str. LMP7&9

16
81945
1
Trough Structure LMP 7 & 9

17
81947
1
Cover Drive Over LMP 7 & 9

18
81948
2
Cover Bottom Idler LMP 7 & 9

19
81940
4
Idler Support Str Lower Aux LMP 7&9

20
81976
4
Shoulder Screw LMP 7 & 9

21
81977
4
Nylock Nut LMP 7 & 9

22
BH-7075-03L
80362
16
3/4 x 5-/12 Wedge Anchors

23
80589
1
Shim Kit 150 pcs, 3 Sizes

24
1
Power Unit 1PH, 2 HP

25
81924
6
Nylon Cable Sheave LMO 7 & 9

25
81924
6
Steel Cable Sheave LMO 7 & 9

25
81924
10
Nylon Cable Sheave LMP 7 & 9

25
81924
10
Steel Cable Sheave LMP 7 & 9

26a
81816
2
Idler Support Str. LMO 7 & 9

26a
81816
4
Idler Support Str. LMP 7 & 9

26b
81819
2
Idler Pin LMO 7 & 9

26b
81819
6
Idler Pin LMP 7 & 9

26c
80864
4
Retaining Ring LMO 7 & 9

26c
80864
12
Retaining Ring LMP 7 & 9

27
81821
2
Hydraulic Cylinder LMO 7, LMP 7

27
81921
2
Hydraulic Cylinder LMO 9, LMP 9

--
81821CK
1
Seal Kit LMO 7

--
81921CK
1
Seal Kit LMO 9 and LMP 9

--
81821CK
1
Seal Kit LMP 7 >41833

--
80674CK
1
Seal Kit LMP 7 <41833

--
81821CK
1
Seal Kit LMP 9 >41937

--
80800CK
1
Seal Kit LMP 9 <41937

28
84168
2
Cylinder Yoke Assembly

29
80675
2
Cylinder End Structure
Retaining Ring

29
81822
2
Cylinder End Pin

29
80227
2
Spacer Roller

30
81824
2
Carriage Assembly

31
82301
4
Lift Arm Structure

32
82304
4
Arm Extension Structure

33
81885
4
Pin Structure

34
100010
4
Hex Screw

35
82591
4
Adapter Base & Pad Assy

36
82361
1
Steel Adapter

37
82365
1
Rubber Arm Pad

38
81691
4
5” Height Adapter

39
81692
4
3-1/2” Height Adapter

40
81693
4
2-5/8” Height Adapter

41
82711
2
Post Structure

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
