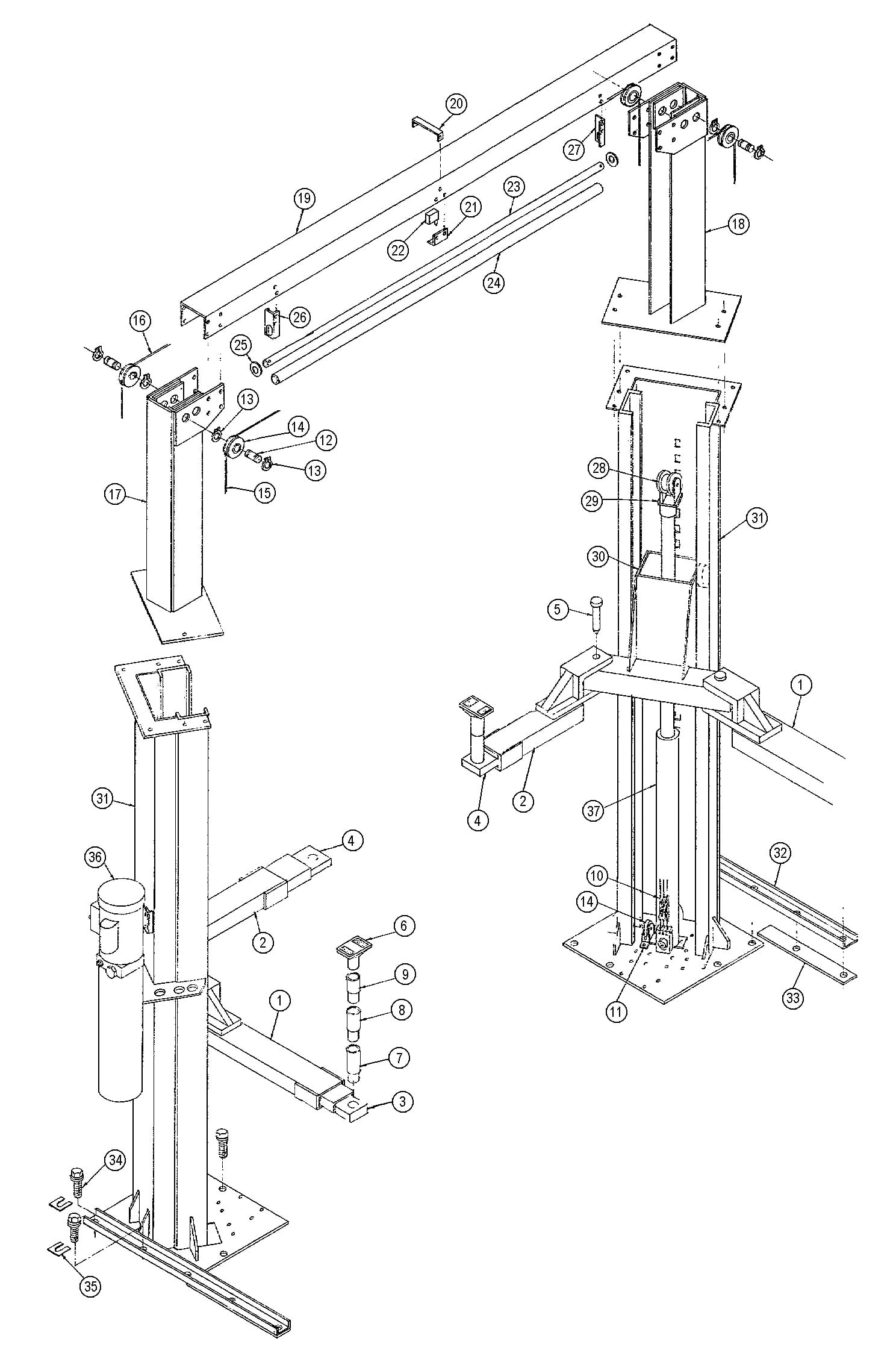

Parts for Ben Pearson LASO 9

Above Ground / Surface Mount 2-Post Lifts – Ben Pearson – LASO 9

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
82277
2
Long Lift Arm Structure

2
82279
2
Short Lift Arm Structure

3
82283
2
Arm Extension Structure Long

4
82285
2
Arm Extension Structure Short

5
81885
4
Pin Structure

6
82591
4
Adapter Base & Pad Assy

6
4
Rubber Pads only

6
4
Rubber Pad Kit (4)

7
81691
4
5” Height Adapter

8
81692
4
3-1/2” Height Adapter

9
81693
4
2-5/8” Height Adapter

10
82823
2
Chain

11
81816
2
Idler Support Structure

12
81819
6
Idler Pin

13
80864
12
Retaining Ring

14
81924
6
Nylon Cable Sheave

14
81924
6
Steel Cable Sheave

15
82745
1
Long Cable Assy LASO 7

15
82271
1
Long Cable Assy LASO 9

16
82744
1
Short Cable Assy LASO 7

16
82270
1
Short Cable Assy LASO 9

17
82259
1
Channel Structure Post Ext LH

18
82260
1
Channel Structure Post Ext RH

19
82267
1
Cross Over Channel

20
82297
1
Cable Support Strap

21
81864
1
Switch Support Angle

22
80282
1
Micro Switch

22
81910
1
Cover Switch

23
81862
1
Pipe Bumper

24
81863
1
Tubing Bumper

25
100224
2
Flat Washer

26
81860
1
Angle Support LH

27
81861
1
Angle Support RH

28
82714
2
Cylinder Roller Assembly

29
80675
2
Cylinder End Structure

29
81822
2
Cylinder End Pin

29
80227
2
Roller Spacer

30
81824
2
Carriage Assy (See Breakdown)

31
82713
2
Post Structure

32
82312
2
Channel Stiffener

33
82313
2
Spacer Bar

34
BH-7075-03L
80362
18
3/4 x 5-1/2” Wedge Anchors

35
81709
1
Shim Kit 150 pcs, 3 Sizes

36
1
Power Unit 1 PH, 2 HP

37
81821
2
Hydraulic Cylinder LASO 7

37
81921
2
Hydraulic Cylinder LASO 9

--
81821CK
1
Seal Kit LASO 7

--
81921CK
1
Seal Kit LASO 9

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
