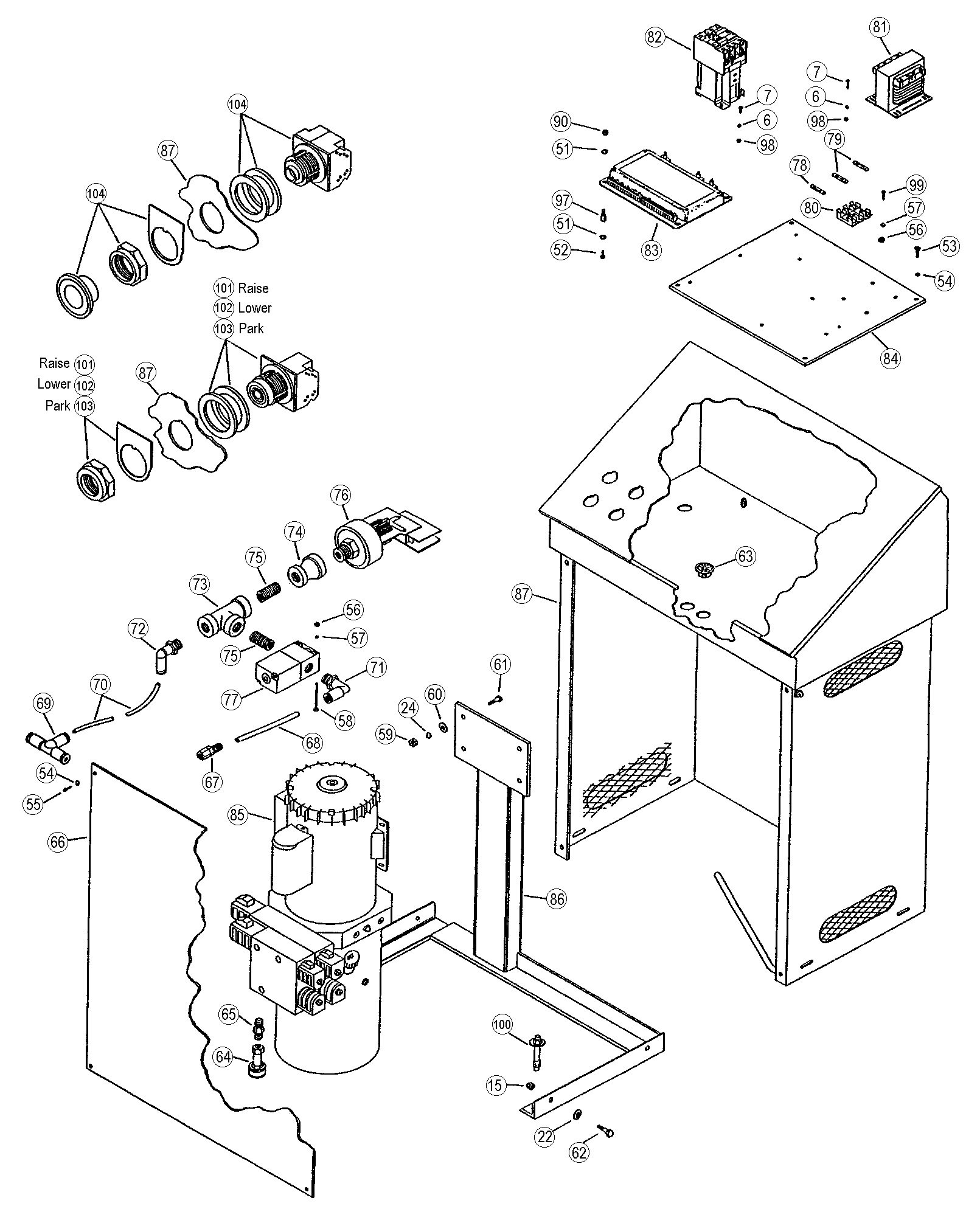

Parts for ALM Epoch 6000 Console

Above Ground / Surface Mount Scissor Lifts – ALM – Epoch 6000

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description

6
F-LW-0375
A00158-08
Split Lockwasher
View
7
F-MS-0008-32-0375
A00149-06
Machine Screw 8-32 x 3/8
View
15
BH-7153-70
A00007-07
Security Locknut 1/4-20
View
22
F-FW-0250-SAE
A00003-04
Plain Washer 1/4
View
24
F-LW-0312
A00002-05
Split Lockwasher 5/16
View
51
BH-7156-45
X00145-10
External Tooth Lockwasher
View
52
BH-7156-44
A00086-06
Machine Screw 10-32 x 3/8
View
53
BH-7156-43
A00151-08
Machine Screw 10-24 x 1/2
View
54
F-LW-0375
A00143-10
Split Lockwasher
View
55
BH-7156-41
A00151-06
Machine Screw 10-24 x 3/8
View
56
F-HN-0006-32
A00144-06
Hex Nut 6-32
View
57
F-LW-0006
A00158-06
Split Lockwasher
58
BH-7156-38
X00172-18
Machine Screw 6-32 x 1-1/8
View
59
F-HN-0312-18
A00001-05
Hex Nut 5/16-18
View
60
F-FW-0312-SAE
A00003-05
5/16 Plain Washer
View
61
BH-7156-37
A00005-07
Hex Bolt 5/16-18 x 7/8
View
62
F-HC-0250-20-0875
A00004-07
Hex Bolt 1/4-20 x 7/8
View
63
BH-7156-36
X00168
Grommet
View
64
BH-7156-35
A93109-08
Quick Disconnect Coupler
View
65
BH-7156-34
A93109-10
Hex Pipe Nipple 1/4x1/4 MNPT
View
66
BH-7156-33
E061210
Front Cover
View
67
BH-7154-72
A00082-06
Bulkhead Fitting 1/4 x 1/4 NPT
View
68
Available—Call
A00094-03
Pneumatic Tubing 1/4 x 51
69
BH-7151-55
A00082-08
Tee 5/32 x 5/32 x 5/32
View
70
Available—Call
A00084-22
Pneumatic Tubing 5/32 x 180
71
BH-7156-31
A00082-12
Male Elbow 1/4 x 1/8 NPT
View
72
BH-7152-25
A00082-09
Elbow 5/32 to 1/8 NPT
View
73
BH-7156-30
A00081-06
Female Tee 1/8 NPT
View
74
BH-7156-29
A00081-13
Bell Reducer 1/4 x 1/8
View
75
BH-7156-28
A00081-03
Close Nipple 1/8 NPT
View
76
BH-7156-27
E061174
Pressure Switch
View
77
BH-7156-26
E061240
Air Valve
View
78
BH-7156-25
E061250
10 AMP Fuse
View
79
BH-7156-24
E061249
1/2 AMP Fuse
View
80
BH-7156-23
E061248
Fuse Block
View
81
BH-7156-22
E061247
Transformer
View
82
BH-7156-21
E061242
Contactor
View
83
BH-7156-20
E061234
Computer
View
84
BH-7156-19
E061251
Control Panel Plate
View
85
BH-7156-18
E061235
2 HP Pump
View
86
BH-7156-17
E061185A
Pedestal Weldment
View
87
BH-7156-16
E061239A
Box & Pedestal Weldment
View
90
F-JN-0010-32
A00085-10
Hex Jam Nut 10-32
97
BH-7156-46
X00192
Female Stand-Off 10-32
View
98
F-HN-0008-32
X00144-08
Hex Nut 8-32
View
99
F-MS-0006-32-0500
X00172-08
Machine Screw 6-32 x 1/2
View
100
BH-7074-51
X00133
5/8 x 4-3/4 Wedge Anchor
101
BH-7156-49
E061245
Raise Push Button
View
102
BH-7156-50
E061244
Lower Push Button
View
103
BH-7156-51
E061243
Park Push Button
View
104
BH-7156-52
E061246
Push/Pull Switch
View
