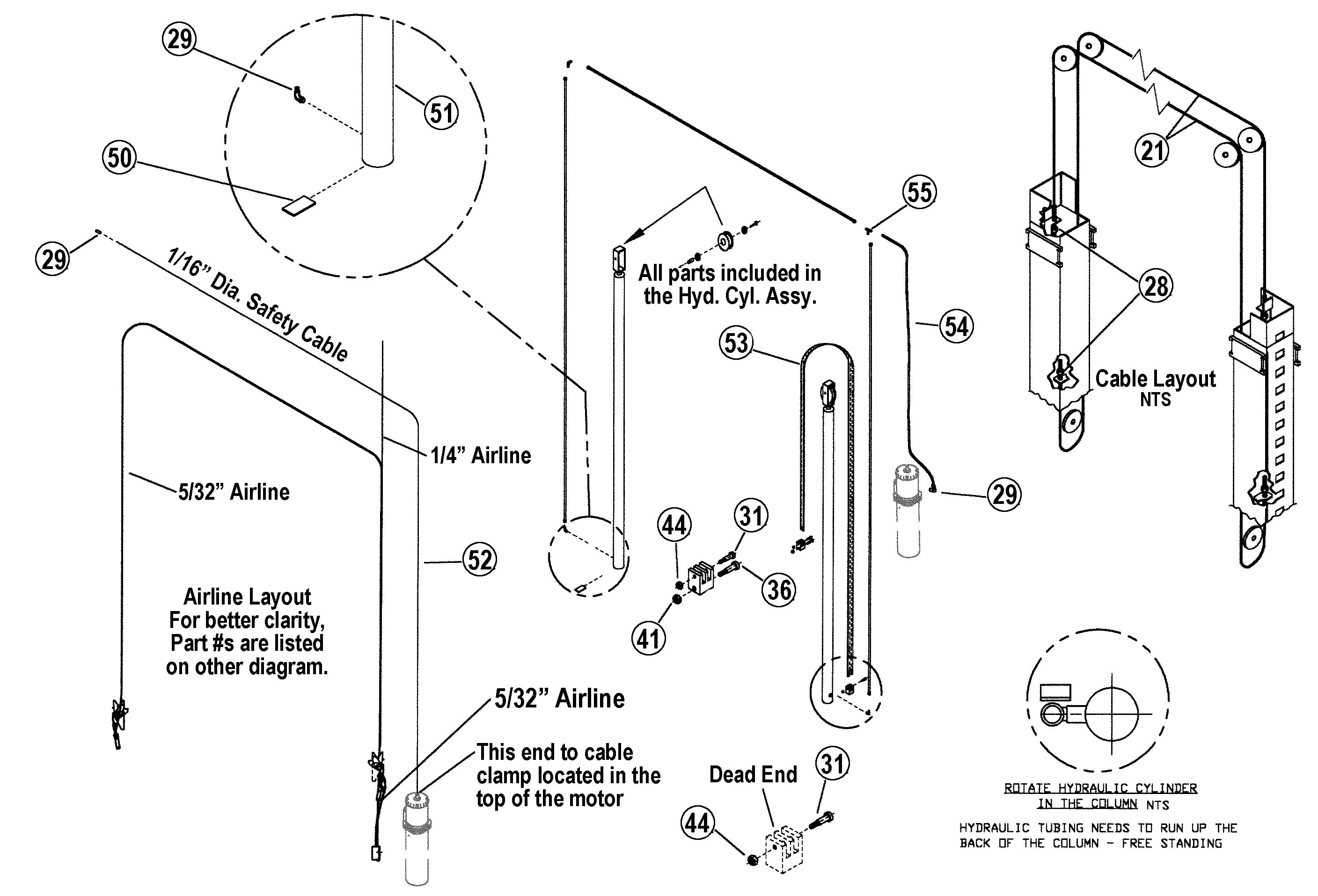

Parts for ALM 9003AC1 Detail

Above Ground / Surface Mount 2-Post Lifts – ALM – 9003AC1

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

28
F-LN-0750-10
A00007-12
Locknut 3/4-10

29
A93108-01
Male Elbow 3/8” x 3/8” NPT

31
F-SB-0312-1500
A00027
Shoulder Bolt 5/16 x 1-1/2”

36
A00194
Socket Head Capscrew 7/16-14 x 3

41
A00007-07
Locknut 7/16-14

44
A00007-04
Security Locknut 1/4-20

50
93-111
Cylinder Shim

51
A093304
Hydraulic Cylinder with Roller

51
A073110
Hydraulic Cylinder Inverted

51
X00441
Seal Kit for 9003A Chain Over Cyl.

52
1/16” Safety Cable

53
Available—Call
A92123
3/4 Pitch Leaf Chain 84 pitches

54
03-3157A-04
Overhead Hose

55
A93108-02
Tee Union 3/8 x 3/8 x 3/8

* Custom order by request. Sample may be needed.

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
