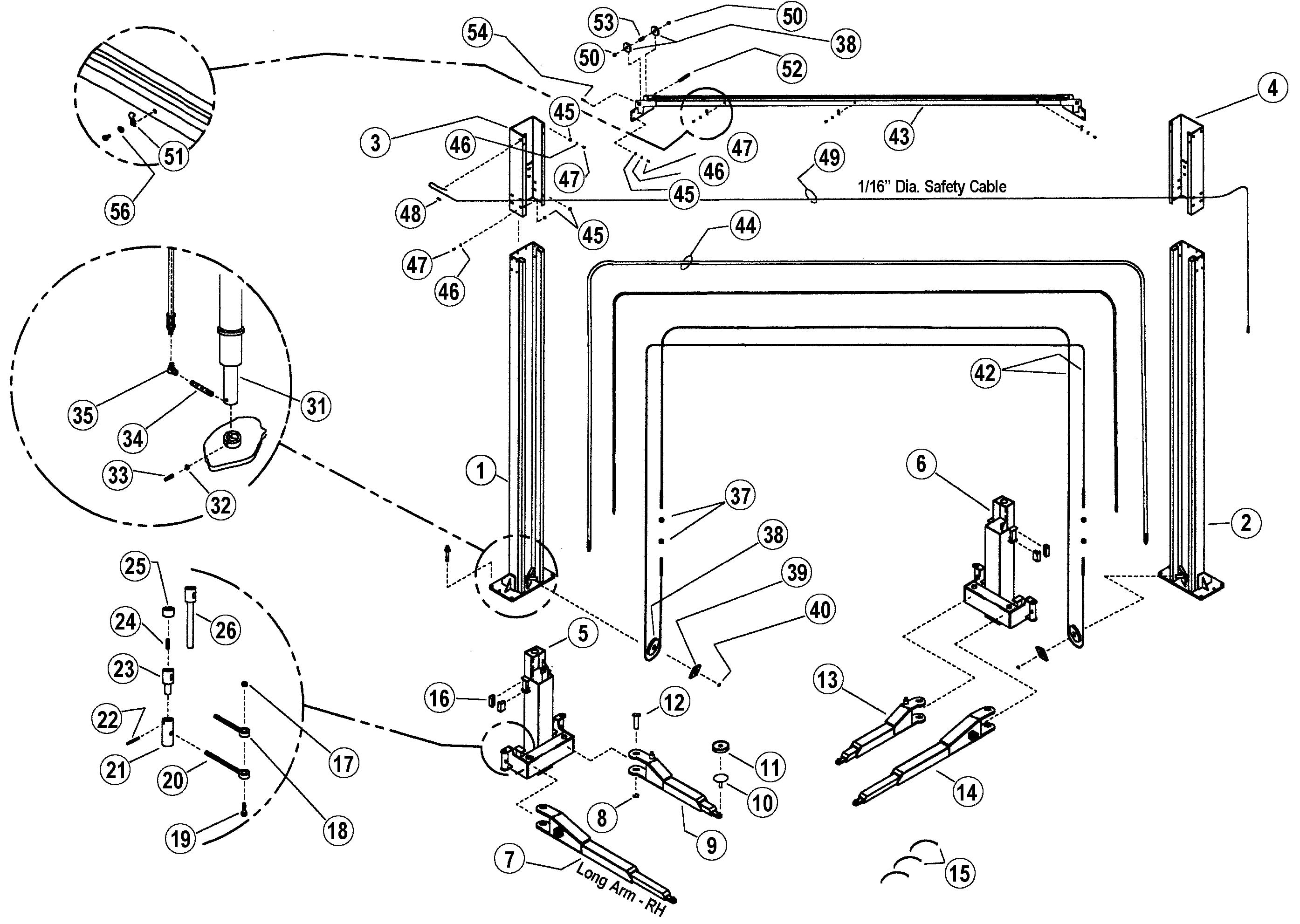

Parts for ALM 9002A

Above Ground / Surface Mount 2-Post Lifts – ALM – 9002A

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1*
Request Details
09-0049A
Column - Idle Side
2*
Request Details
09-0048A
Column - Control Side
3*
Request Details
09-0043A
Extension - Idle Side
4*
Request Details
09-0042A
Extension - Control Side
5*
Request Details
09-2035A
Carriage - Idle Side
6*
Request Details
09-2030A
Carriage - Control Side
7*
Request Details
09-4232ARH
Long Arm - RH - Idle Side
8
BH-7153-77
X00032
1-1/2” Snap Ring
View
9*
Request Details
09-4235A
Short Arm - Idle Side
10
BH-7154-07
94-209A
Spin Up Adapter
View
11
BH-7150-02
A94208
Rubber Arm Pad
View
12
BH-7154-03
92-120A
Arm Pin
View
13
Request Details
09-4259A
Short Arm - Control Side
14
Request Details
09-4260A
Long Arm - Control Side
15
BH-7153-90
X00025
Wire Tie 5-1/2”
View
16
BH-7157-49
A073169
Slider Block
View
17
F-LN-0750-10
A00007-12
3/4-10 Lock Nut
18
BH-7151-06
95-107A
Arm Lock Rod 10.5”
View
19
F-HC-0750-10-3000
A00012-24
3/8-16 x 3” HHCS
View
20
BH-7157-54
09-4253A
Arm Restraint Rod 11.5”
View
21
BH-7151-14
92-129
Housing
View
22
F-RP-250-1750
A00023-28
1/4” x 1-3/4” Roll Pin
View
23
BH-7151-13
92-130
Plunger
View
24
BH-7151-12
A92132
Spring
View
25
BH-7151-11
92-131
End Cap
View
26
BH-7152-19
09-4248A
Arm Restraint Plunger
View
31
BH-7150-62
A073110
Hydraulic Cylinder
View
32
F-HN-0375-16
A00001-06
Hex Nut 3/8-16
View
33
F-SS-0375-16-1500
A00183-12
Dog Point Set Screw 3/8-16 x 1-1/2”
View
34
BH-7151-37
A93109-14
Pipe Nipple
View
35
BH-7153-37
A93108-05
Female Elbow 3/8” x 1/4”
View
37
F-NL-0500-13
A00007-08
Nylock Lock Nut 1/2-13
View
38
BH-7150-20
A073120
4” Cable Pulley
View
39
BH-7157-15
460389
Sheave Guard
View
40
BH-7150-70
X00185
.75 E-Clip
View
42
BH-7152-34
A093033-01
Equalizer Cable
View
43*
Request Details
09-1006A
Overhead Weldment
44
BH-7157-53
09-3035A-01
Hose
View
45
BH-7154-63
A00007-06
Security Locknut 3/8-16
View
46
F-FW-0375-SAE
A00003-06
Washer 3/8
View
47
F-HC-0375-16-1250
A00006-10
Hex Bolt 3/8-16 x 1-1/4”
View
48
BH-7153-84
A00021-04
Cable Clamp 1/16”
View
49
BH-7154-09
A00017-220
Wire Cable 1/16” x 220”
View
50
BH-7157-17
07-1112-02
Spacer Tube
View
51
BH-7157-38
07-3153
Hose Mounting Clip
View
52
BH-7157-19
07-1113
Sheave Pin
View
53
BH-7157-18
07-1112-01
Spacer Tube
View
54
F-CP-187-1750
A00030-14
Cotter Pin 3/16 x 1-3/4”
56
F-LW-0250
A00002-04
Split Lockwasher 1/4”
View

* Custom order by request. Sample may be needed.
