FS-10AS

Automotive Lifts (New Installs) – SVI International – FS-10AS

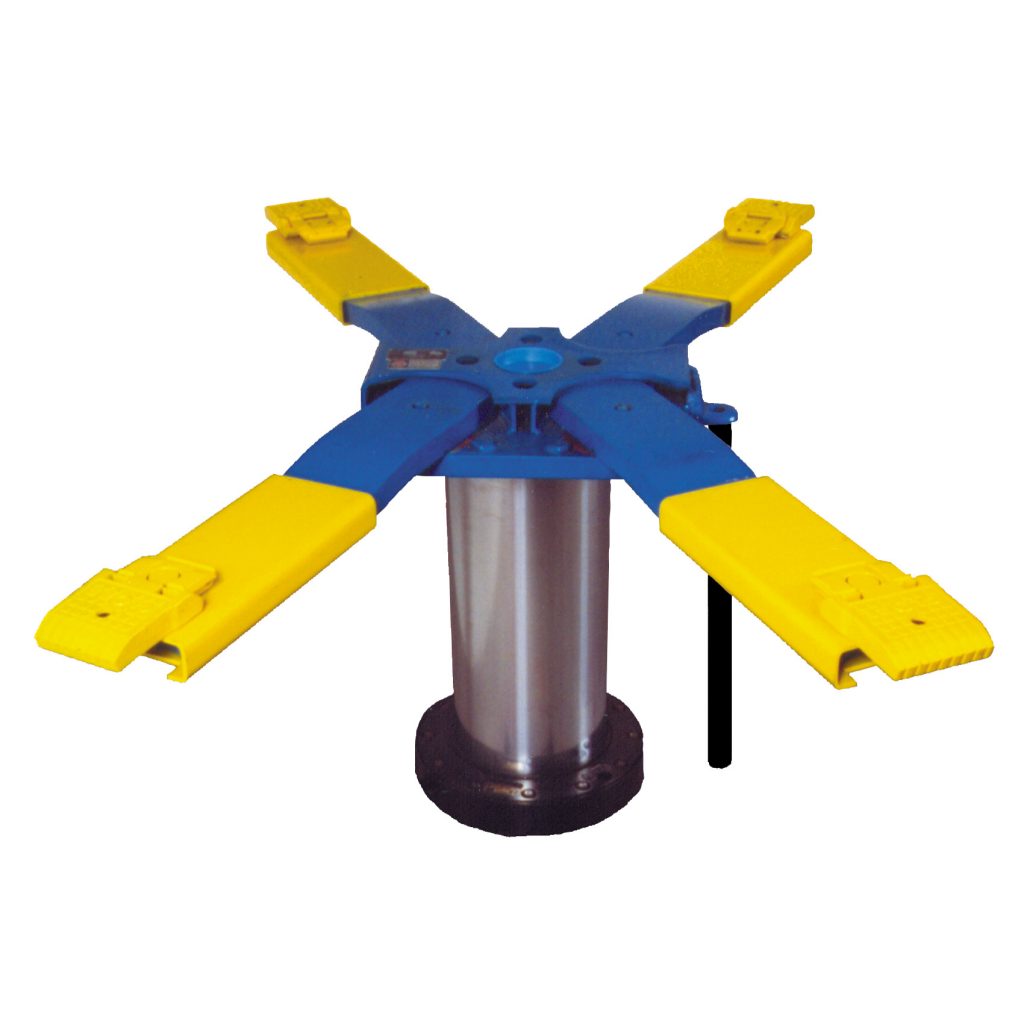

Semi-Hydraulic Single Post Auto Lift

Environmentally Friendly and safe to operate!
Operates off of Compressed Air and Non-Vegetable Based Fluid Just Like That Used by the US Coast Guard

Now, it’s your turn to own a Globe—Ask SVI for an FS-10 Lift.

• Handles Most Domestic and Imported Models
• 4-Position Adapters Provide Excellent Undercar Accessibility
• Low Profile – 4” Road Clearance
• Ideal in Virtually Any Shop
• Great for Front End and Suspension Work

Function: To raise domestic and imported vehicles by their frames or bodies permitting maximum undercarriage service accessibility with wheels in relaxed position. Uses cylinder with 68” stroke and 8,000 lb. capacity at 150 psi shop air pressure.

This single-post lift with its adjustable sleeve and adapters provides mechanics more accessibility to the vehicle, allowing faster inspection, repair and lubrication. Plus, the unobstructed floor area allows easy positioning of portable tool carts, work benches and transmission dollies.

SPECIFICATIONS:

CAPACITY:	8,000 LBS @ 150 PSI (2,000 LBS per Adapter)
OPERATION:	“AS” = Semi Hydraulic or “BS” = Full Hydraulic
RISE:	72″
STROKE:	68″
DISPLACEMENT:	26 gallons
INITIAL FILL:	40 gallons “AS” / 50 gallons for “BS”
CYLINDER:	10-5/8″ Diameter
SUPERSTRUCTURE:	Solid Steel Bolster-Style and Low Profile Swing Arms
ADAPTERS:	Ductile Iron, 4-Position Adjustable on Sliding Sleeves
LOW OIL CONTROL & AUTO LOCK LEG:	Supplied in Accordance with ANSI B153.1 Specification

Contact SVI today for more information and pricing on an FS-10 Single Post In-Ground Lift.
