EV Electric Vehicle Retractor Cable Clamps For EV Charging Stations

Petroleum Equipment and Parts – Pump Products – EV Electric Vehicle Charging Station Cable Clamps

EV Cable Retractor Clamps

Electric Vehicle EV Charger Cable Clamp Accessories and Retractor Options soon!

SVI Cord Clamps for Electric Vehicle EV Charging Stations are free rotating, preventing the cord and retractor cable from binding or twisting. All clamp kits come individually packaged with all the necessary hardware along with an installation diagram.

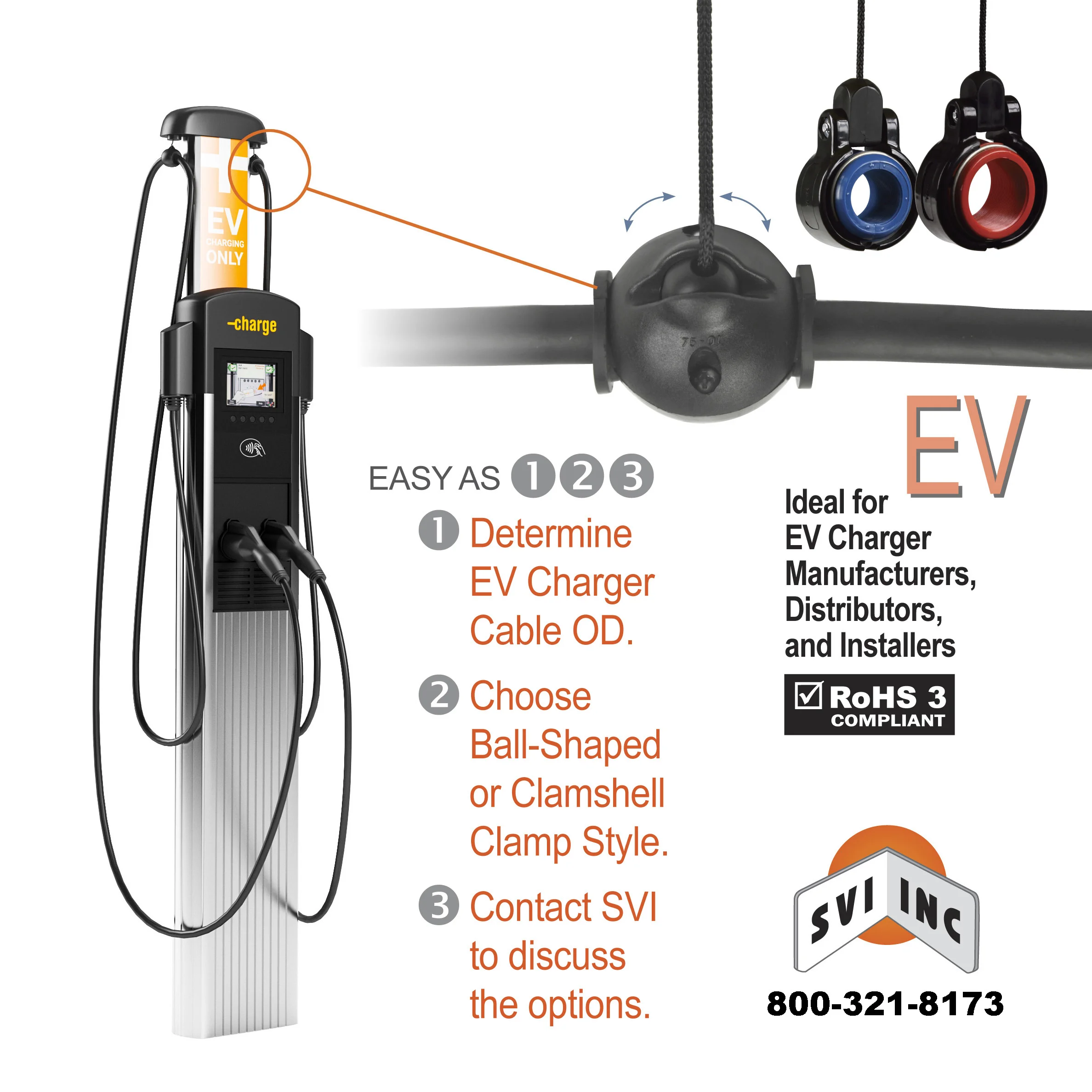

EASY AS 1-2-3

1. Determine EV Charger Cable OD
  • Many Sizes Available: For Cable Size Range 7,9 mm to 43,0 mm OD and 5/16″ to 1-11/16″ OD
2. Choose Clamp Style—Ball Shaped or Clamshell

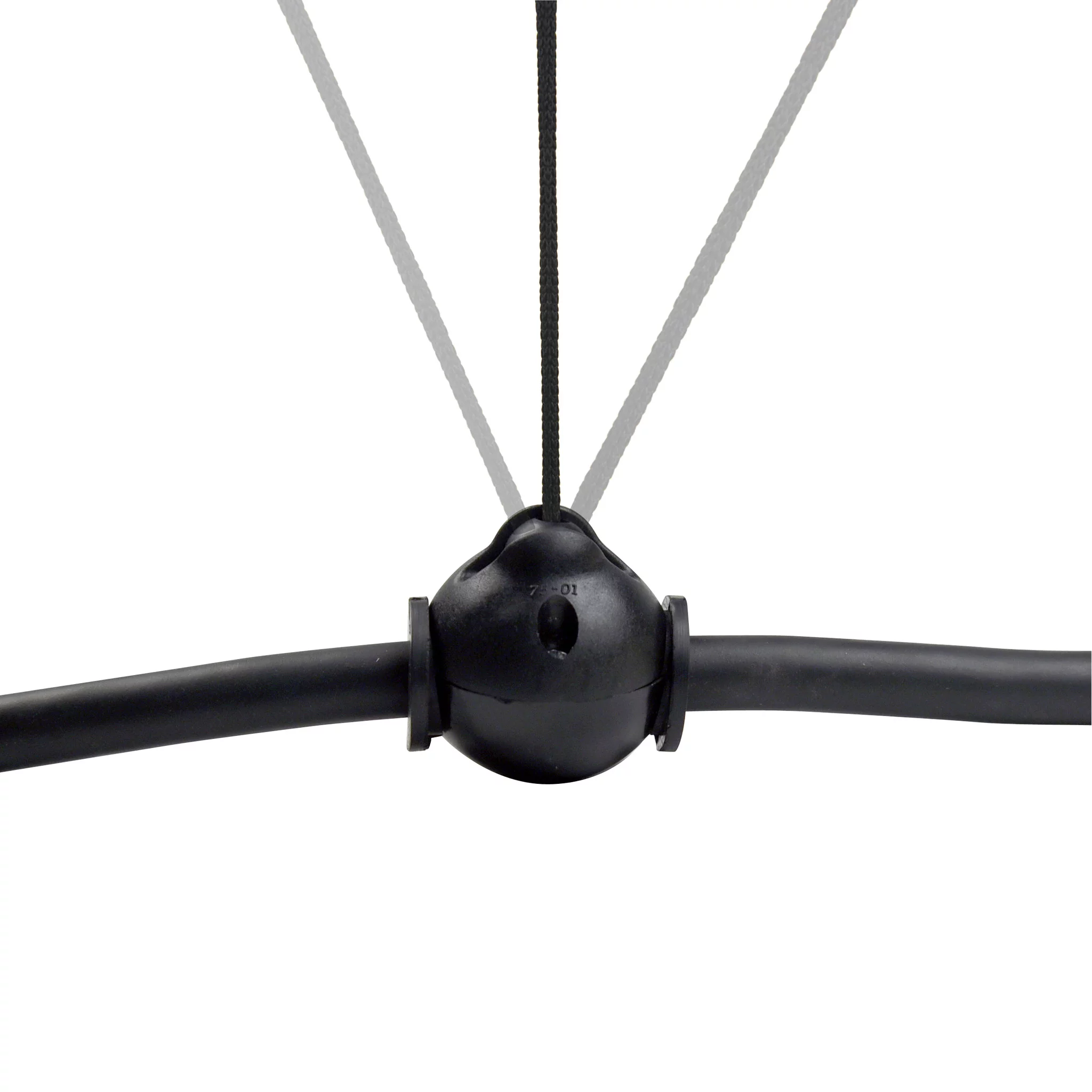

  • BALL-SHAPED Style Cable Clamps provide swivel action at the connection.
  • CLAMSHELL Style Cable Clamps provide swivel and full rotation.
3. Contact SVI today

SVI EV Charger Cable Clamps are made of high-quality nylon material that resists the elements. Available in a variety of sizes and colors, SVI has the best selection to fit your needs. Retractor options soon, too.

Many of SVI’s retractor clamps are RoHS 3 Compliant!

RoHS 3 Complaint / SVI Retractor Clamps for EV Charger Cables, Cord, Curb Pump Hose

Ideal for EV Charger Manufacturers, Distributors, and Installers

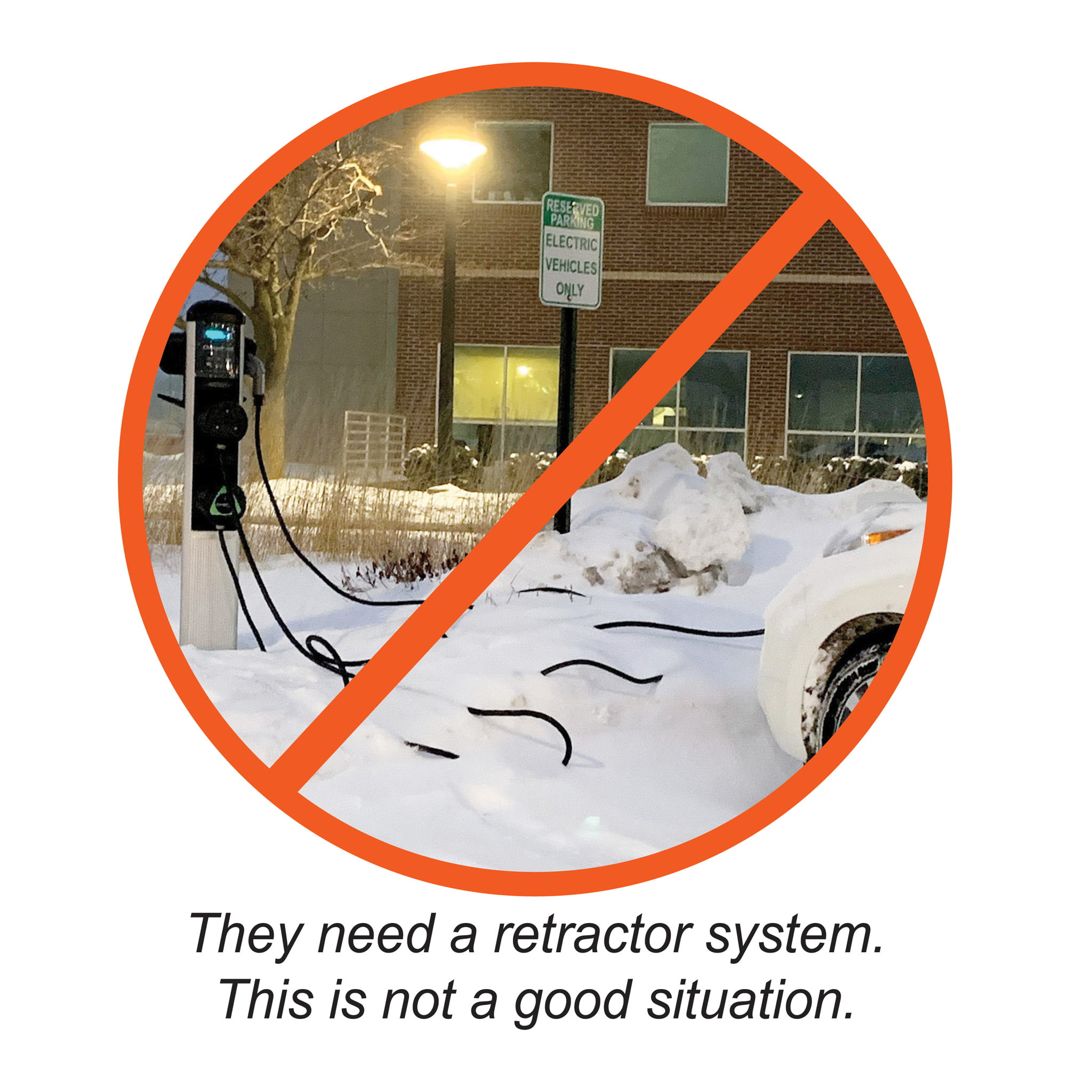

EV charging stations currently need long electrical cords to accommodate many different makes and models of vehicles. Traditional gasoline vehicles have the fill cap located towards the rear of the vehicle, but there is no standard charging location on EV. Due to inconsistency of on-car charging points, EV charger cables are long to accommodate every electric vehicle. EV Charger Cables must be suspended so they are not damaged by consumers dragging them across the pavement.

We can expect for EV / Electric Vehicles to become the standard. California has already stated by 2035 all new vehicles must be powered by electricity.

It is important that the sales and service of these EV chargers continue to grow, as more electric vehicles are on the roadways. SVI provides quality parts and accessories to manufacturers so that they can quickly, efficiently, and safely continue to create charging stations and parts.

SVI offers a variety EV Electric Vehicle Charging Station Cord Clamps. Many sizes and options are available.

Blanket orders and quantity discounts are available upon request!

For your EV retractor cable clamp requirements, SVI can meet all your needs! Contact SVI Today!

Add to
Quote
Add to
Order
SVI Part #
Type
Size

Ball Shaped Retractor Clamp
For [7,9mm] 5/16" OD Cable / Cord

Ball Shaped Retractor Clamp
For [9,5mm] 3/8" OD

Ball Shaped Retractor Clamp
For [12,7mm] 1/2" OD

Ball Shaped Retractor Clamp
For [14.2mm] 9/16" OD

Ball Shaped Retractor Clamp
For [15,8mm] 5/8" OD

Ball Shaped Retractor Clamp
For [19,0mm] 3/4" OD

BP-1390-900
Ball Shaped Retractor Clamp
For [22,8mm] .900 OD

Ball Shaped Retractor Clamp
For [25,4mm] 1" OD

Ball Shaped Retractor Clamp
For [26,2mm] 1-1/32" OD

Ball Shaped Retractor Clamp
For [25,4-26.2mm] 1"-1-1/32" OD

Ball Shaped Retractor Clamp
For [32,4mm] 1-1/4" OD

Ball Shaped Retractor Clamp
For [35,5mm] 1-3/8" OD

Ball Shaped Retractor Clamp
For [39,0mm] 1-1/2" OD

Clamshell Retractor Clamp
For [17,0mm] OD - Black Insert

Clamshell Retractor Clamp
For [23,7mm] OD - Purple Insert

Clamshell Retractor Clamp
For [26,2mm] 1-1/32" OD - Blue Insert

Clamshell Retractor Clamp
For [26,4mm] OD - Orange Insert

Clamshell Retractor Clamp
For [26,9mm] 1-1/16" OD - Blue/Black

Clamshell Retractor Clamp
For [28,2mm] OD - White Insert

Clamshell Retractor Clamp
For [28.5mm] 1-1/8" OD - Black Insert

Clamshell Retractor Clamp
For [28,7mm] OD - White Insert

Clamshell Retractor Clamp
For [29,0mm] OD - Gray Insert

Clamshell Retractor Clamp
For [29,0mm] OD - White Insert

Clamshell Retractor Clamp
For [29,4mm] OD - Gray Insert

Clamshell Retractor Clamp
For [30,1mm] 1-3/16" OD - Red/Black

Clamshell Retractor Clamp
For [31.7mm] 1-1/4" OD - Red Insert

Clamshell Retractor Clamp
For [32,4mm] OD - Blue Insert

Clamshell Retractor Clamp
For [32,6mm] OD - Blue Insert

Clamshell Retractor Clamp
For [34.9mm] 1-3/8" OD - Black Insert

Clamshell Retractor Clamp
For [35,5mm] OD-Orange Insert

Clamshell Retractor Clamp
For [36,0mm] OD - Black Insert

Clamshell Retractor Clamp
For [36,5mm] 1-7/16" OD - Green Insert

Clamshell Retractor Clamp
For [38.1mm] 1-1/2" OD - Red Insert

Clamshell Retractor Clamp
For [39,0mm] OD - Gray Insert

Clamshell Retractor Clamp
For [42,0mm] 1-21/32" OD

Clamshell Retractor Clamp
For [43,0mm] 1-11/16" OD - Black Insert

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
BP-1373-079

Rectractor Clamp for 7,9mm or 5/16" Cable

View Part
Request a quoteAdd to order
BP-1373-095

Retractor Clamp for 9,5mm or 3/8" OD Cable

View Part
Request a quoteAdd to order
BP-1373-500 Ball Shaped Retractor Cord Clamps for Single Cord EV Electric Vehicle Charging Cord Clamp Accessories
BP-1373-127

Retractor Clamp for 12,7mm or 1/2" OD Cable

View Part
Request a quoteAdd to order

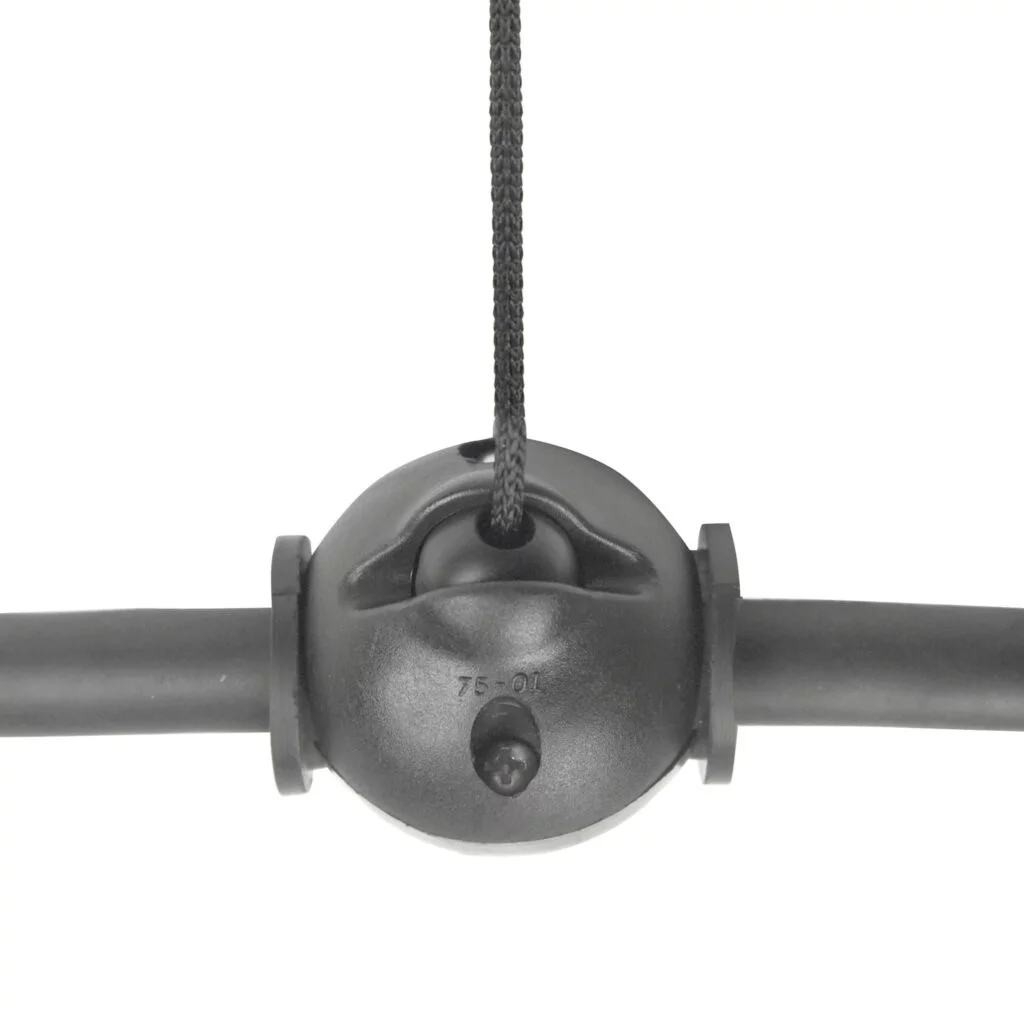

BP-1373-562 Ball Shaped Retractor Cord Clamps for Single Cord EV Electric Vehicle Charging Cord Clamp Accessories
BP-1373-142

EV Charger Cable Clamp for 14,2mm or 9/16" OD Cord

View Part
Request a quoteAdd to order
BP-1373-625 Ball Shaped Retractor Cord Clamps for Single Cord EV Electric Vehicle Charging Cord Clamp Accessories
BP-1373-158

EV Charger Cable Clamp for 15,8mm or 5/8" OD

View Part
Request a quoteAdd to order
BP-1373-750 Ball Shaped Retractor Cord Clamps for Single Cord EV Electric Vehicle Charging Cord Clamp Accessories
BP-1373-190

EV Charger Cable Clamp for 3/4" OD / 19,0mm

View Part
Request a quoteAdd to order
BP-1373 Ball Shaped Retractor Clamp for EV Charger Cable Cord 25,4 mm or 1" OD Cable Cord or Curb Pump Hose
BP-1373

Hose Clamp - Ball Shaped for 1" O.D.

View Part
Request a quoteAdd to order
BP-1375 Ball Shaped Retractor Clamp for Hose, Cord, or Cable, or EV Electric Vehicle Charger Cables
BP-1375

Retractor Clamp for 26,2mm or 1-1/32" O.D.

View Part
Request a quoteAdd to order
BP-1375 Ball Shaped Retractor Clamp for Hose, Cord, or Cable, or EV Electric Vehicle Charger Cables
BP-1375-T

Retractor Clamp for 25,4mm to 26,2mm OD / 1" to 1-1/32" OD

View Part
Request a quoteAdd to order
BP-1395 EV cable retractor Electric Vehicle Charger Station Retractor Cord Clamp Accessories Curb Pump Retractor Hose Clamp
BP-1395

Retractor Clamp for 26,2mm or 1-1/32" OD

View Part
Request a quoteAdd to order
BP-1394/95 Plastic Curb Pump Hose Clamp for 1-1/16" OD x 3/4" ID Hose, Clam Shell Accessories
BP-1394/95

Retractor Clamp for 26,9mm or 1-1/16" OD

View Part
Request a quoteAdd to order
BP-1394 EV Electric Vehicle Charger Station Cord Clamp Accessories
BP-1394

Retractor Clamp for 28,5mm or 1-1/8" OD

View Part
Request a quoteAdd to order
BP-1394-98 Clam Shell Retractor Clamp for 30,1mm or 1-3/16" OD EV Charger Cable Cord or Curb Pump Hose
BP-1394/98

Retractor Clamp for 1-3/16" OD Hose / Cable

View Part
Request a quoteAdd to order
BP-1398 Clamshell Retractor Clamp for 31,7 and 1-1/4" OD EV Charger Cable Cord or Curb Pump Hose
BP-1398

Retractor Clamp for 31,7mm or 1-1/4" OD Hose

View Part
Request a quoteAdd to order
BP-1396 Retractor Clamp Clamshell for 34.9mm OD / 1-3/8" OD Hose, Cord, or Cable including EV Charger Cables
BP-1396

Retractor Clamp for 34,9mm / 1-3/8" OD Cable

View Part
Request a quoteAdd to order
BP-1372 Clamshell Curb Pump Retractor Hose Clamp or EV Charger Cable Clamp for 1-7/16" OD 36,5mm Green Insert
BP-1372

Retractor Clamp for 36,5mm / 1-7/16" OD Hose / Cable

View Part
Request a quoteAdd to order
BP-1397 EV cable retractor for Electric Vehicle Charger Station Retractor Cord Clamp Accessories Curb Pump Retractor Hose Clamp
BP-1397

Retractor Clamp for 31,7mm or 1-1/2" OD

View Part
Request a quoteAdd to order
