DC Powered Pumps – Gasboy Consumer Series Pumps – 600

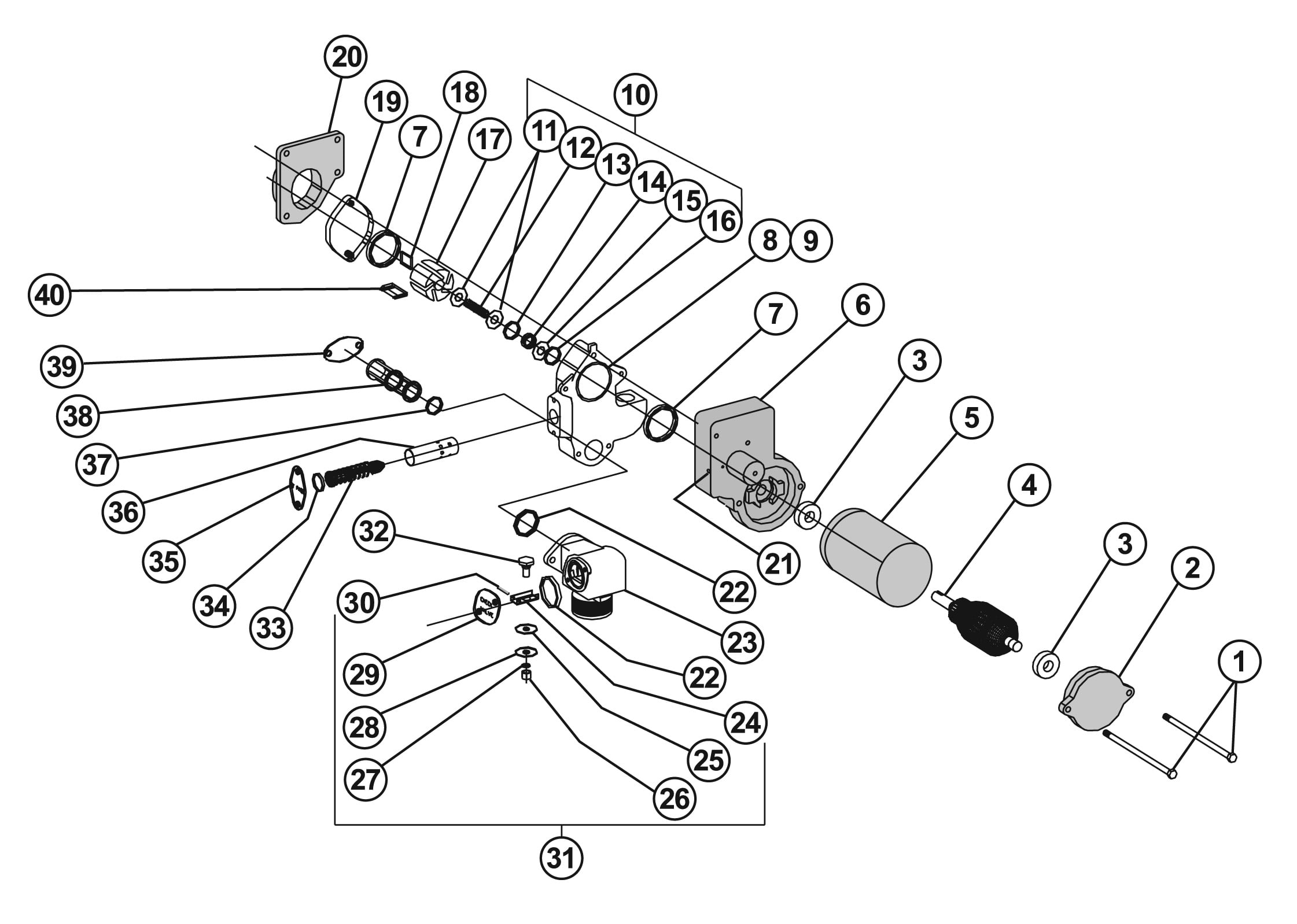

600 Series Assembly
Add toQuote
Add toOrder
Item
SVI Part #
OEM #
Description
1
Request Details
012905
Hex Bolt, 5/16-18 x 6-1/2
2
Request Details
003814
End Cap
3
Request Details
011869
Bearing
4
Request Details
010907
Armature 12 VDC
4
Request Details
010908
Armature 24 VDC
5
Request Details
037405
Field Assembly
6
Request Details
003813
Motor Housing
9
Request Details
052976
Ground Screw (not shown)
20
Request Details
003819
Switch Cap
21
Request Details
053170
Set Screw, 1/4-20 x 1/2" (Note: covered with silicone to prevent water entry)
24*
Request Details
029155
Valve Guide
25*
Request Details
068680
Washer
26*
Request Details
038980
Hex Jam Nut
27*
Request Details
068650
Washer
28*
Request Details
024356
Valve Disk
29*
Request Details
022271
Check Valve Cover Assembly
30*
Request Details
042370
Cotter Pin
32
Request Details
062620
Valve Stem
33
Request Details
062338
Bypass Stem Assembly
41
Request Details
067466
Shim Washer (not pictured)
*Parts included in Repair Kit BP-4210-03 (Ref 032934) for Series 620
