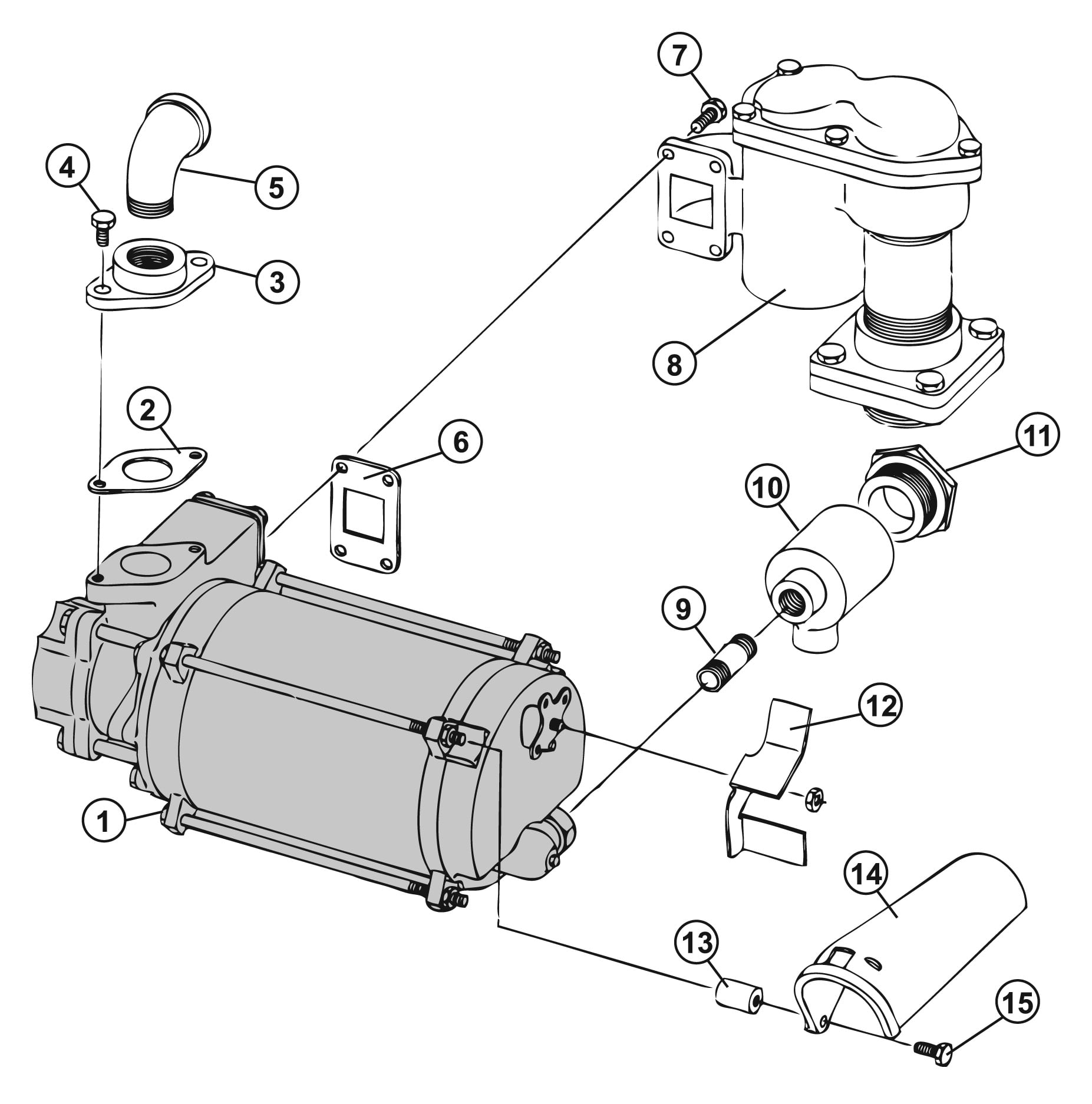

427 Assembly

AC Powered Pumps – Tokheim – 427

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description

1
BP-4218-26
F37684
Motor, Model 26, 27, 28, 60 Hz.
View
2
BP-4210-42
26810
Gasket
View
2
Request Details
30430
Hose, 1" x 12'
2
Request Details
38413
Nozzle with Hook (311-Manual)
2
Request Details
38412
Alt. Nozzle with Hook (7H-Automatic)
3
BP-4210-39
3640
Flange
View
4
BP-4210-112
51895
Cap Screw, 5/16-18 x 3/4"
View
5
Request Details
24941
Street Ell, 1" x 90
5
BP-4215-50
24933
Discharge Casting w/Vacuum Breaker Hole
View
6
BP-4210-44
26812
Gasket
View
7
Request Details
51900
Cap Screw, 5/16-18 x 7/8"
8
Request Details
63357
Strainer Block Assembly, Gasoline
8
Request Details
63358
Strainer Block Assembly, Diesel
9
Request Details
21337
Conduit, 1/2 x 2"
10
Request Details
3345
Junction Box
11
Request Details
3515
Junction Box Cover
12
BP-4215-35
34497
Switch Plate
View
13
Request Details
56967
Spacer
14
BP-4210-78
3331
Nozzle Boot
View
15
BP-4210-112
51895
Cap Screw, 5/16-18 x 3/4"
View
16
BP-4210-58
66534
Vacuum Breaker Assy., Threaded (see picture)
View
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
