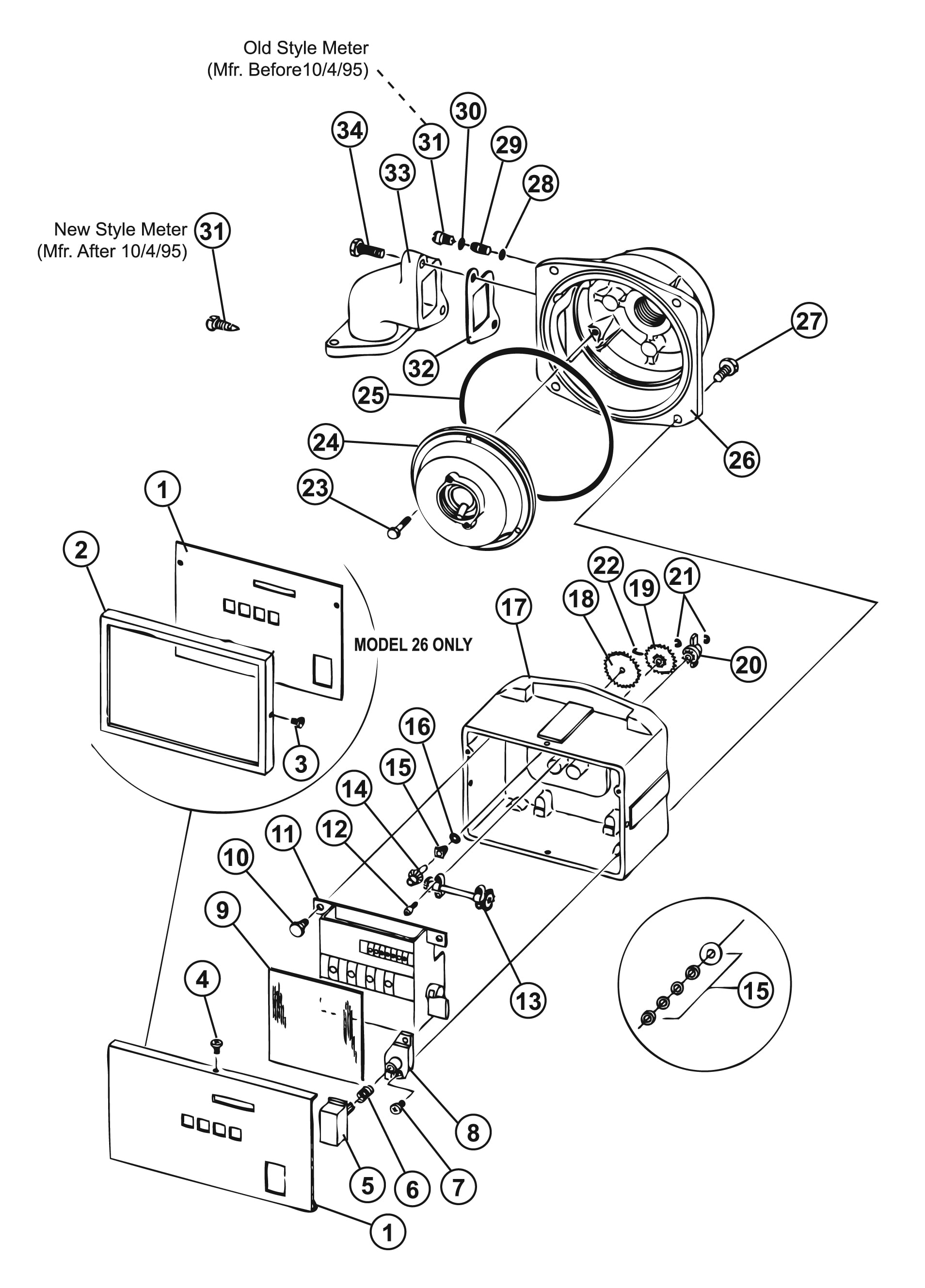

4250 Meter Register Assembly 3460

AC Powered Pumps – Tokheim – 4250

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description

1
Request Details
035307
Dial Mask, US & Imperial, 25
1
Request Details
035311
Dial Mask, Liter Measure, 25
1
BP-4212-06
035309
Dial Mask, US & Imperial, 26
View
1
Request Details
035313
Dial Mask, Liter Measure, 26
2
BP-4212-04
012236
Bezel, Model 26 only
View
3
Request Details
052693
Tapping Screw, Model 26 only
4
BP-4212-10
053626
Phillips Head Screw, #6-32 x 3/8"
View
5
BP-4212-18
017269
Reset Button (For spring, also see item 6)
View
6
BP-4212-16
057985
Spring
View
7
BP-4212-07
053737
Screw, Taptite
View
8
BP-4212-17
011816
Bearing
View
9**
BP-4210-46
028736
Dial Glass
View
10
F-HC-0250-20-0500
051790
Cap Screw, 1/4-20 x 1/2"
View
11
BP-4210-30KP
S00758
Register Assembly (w/ Glass)
View
11
BP-4210-30LS
S00766
Register Assembly, Ext. Shaft/Pul (w/ Glass)
View
11
BP-4210-30
048461
Register Assembly (no glass)
View
12
BP-4212-10
053626
Phillips Head Screw, #6-32 x 3/8"
View
13
BP-4212-09
054513
Drive Shaft Assembly
View
14**
BP-4210-54
054512
Drive Shaft Assembly
View
15**
BP-4210-40
014095
Bearing & Seal Stuffing Box (old style)*
View
15*
BP-4210-50
036995
Bearing & Seal Stuffing Box (new style)
View
16**
BP-4210-48
048865
O-Ring
View
17
Request Details
031019
Register Housing Assembly, Model 25
17
Request Details
031018
Register Housing Assembly, Model 26
17
Request Details
037219
Register Housing Assy., Model 25 w/ Pulser
18
BP-4219-10
028167
Drive Gear, 48T (US GALLONS / IMPERIAL)
View
18
BP-4219-14
028201
Drive Gear, 29T, Diesel (LITERS)
View
18
BP-4219-15
028209
Drive Gear, 28T, Gas (LITERS)
View
19
BP-4219-11
028174
Cluster Gear, 39T & 13T, Gas (US GALLONS / IMPERIAL)
View
19
BP-4212-36
028168
Cluster Gear, 39T & 12T, Diesel (US GALLONS)
View
19
BP-4219-16
028169
Cluster Gear, 39T & 29T (LITERS)
View
20
BP-4219-13
012498
Control Block, 12T (US GALLONS / LITERS)
View
20
BP-4219-20
012500
Control Block, 10T (IMPERIAL)
View
21
BP-4212-32
049390
E-Ring
View
22
BP-4210-47
031345
Spring Key
View
23
BP-4212-105
025851
Screw, Phenolic Chamber
View
24
BP-4219-03
019018
Measuring Chamber, C Size, Bronze
View
14
BP-4219-02
019027
Measuring Chamber, C Size, Phenolic
View
25**
BP-4210-52
049063
O-Ring 6" ID
View
26
BP-4219-01
003253
Meter Housing
View
27
BP-4210-112
051895
Cap Screw, 5/16-18 x 3/4"
View
28**
BP-4210-48
048865
O-Ring (old style meter mfr. before 10/4/95)
View
29
Request Details
053080
Adj. Screw (old style meter mfr. before 10/4/95)
30**
BP-4210-49
048895
O-Ring
View
31
Request Details
052195
Adj. Cap Screw (old style)
31
BP-4212-109
053081
Adj. Cap Screw (new style)
View
32**
BP-4210-45
026814
Gasket
View
33
BP-4219-21
003561
Inlet Manifold
View
34
F-HC-0312-18-0875
051900
Cap Screw, 5/16-18 x 7/8"

*Note: New Style Stuffing Box used on meters made after Mid 1993

**Part is included in Repair Kit BP-4210-02 (ref 032892)
