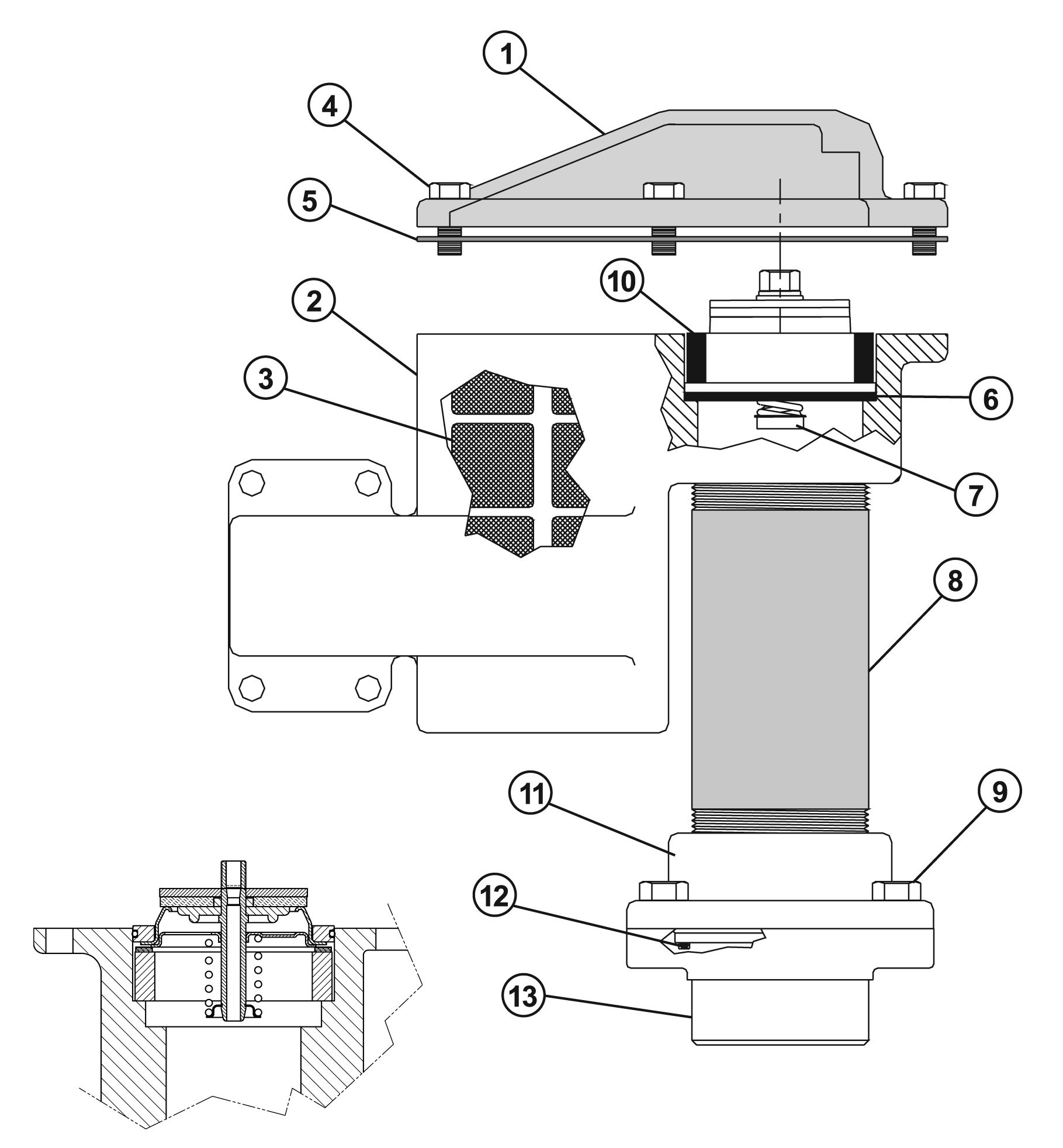

425 Strainer Block Assembly

AC Powered Pumps – Tokheim – 425

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description

1
BP-4210-61
003489
Strainer Cover, 25, 26, 27, 28 & 250
View
1
Request Details
003491
Strainer Cover, 250AR only
2
Request Details
003207
Strainer Block
3
BP-4210-13
063282
Strainer (Gasoline), 100 Mesh
View
3
BP-4210-14
063283
Strainer (Diesel), 40 Mesh
View
4
BP-4210-112
051895
Cap Screw, 5/16-18 x 3/4
View
5
BP-4210-62
027360
Gasket
View
6
BP-4214-88
049136
Square Cut Ring
View
7
Request Details
020620
Check Valve Assembly
8
Request Details
044942
Pipe TBE, 2 x 6
9
Request Details
052015
Cap Screw, 3/8-16 x 1"
10
Request Details
065525
Spacer
11
BP-4210-116
003648
Inlet Flange
View
12
BP-4210-55
049167
O-Ring, 2-1/2 x 2-11/16
View
13
BP-4210-117
003078
Base
View
--
BP-4210-60
032083
Check Valve Kit
View
--
BP-4210-69
032631
Check Valve Kit
View
