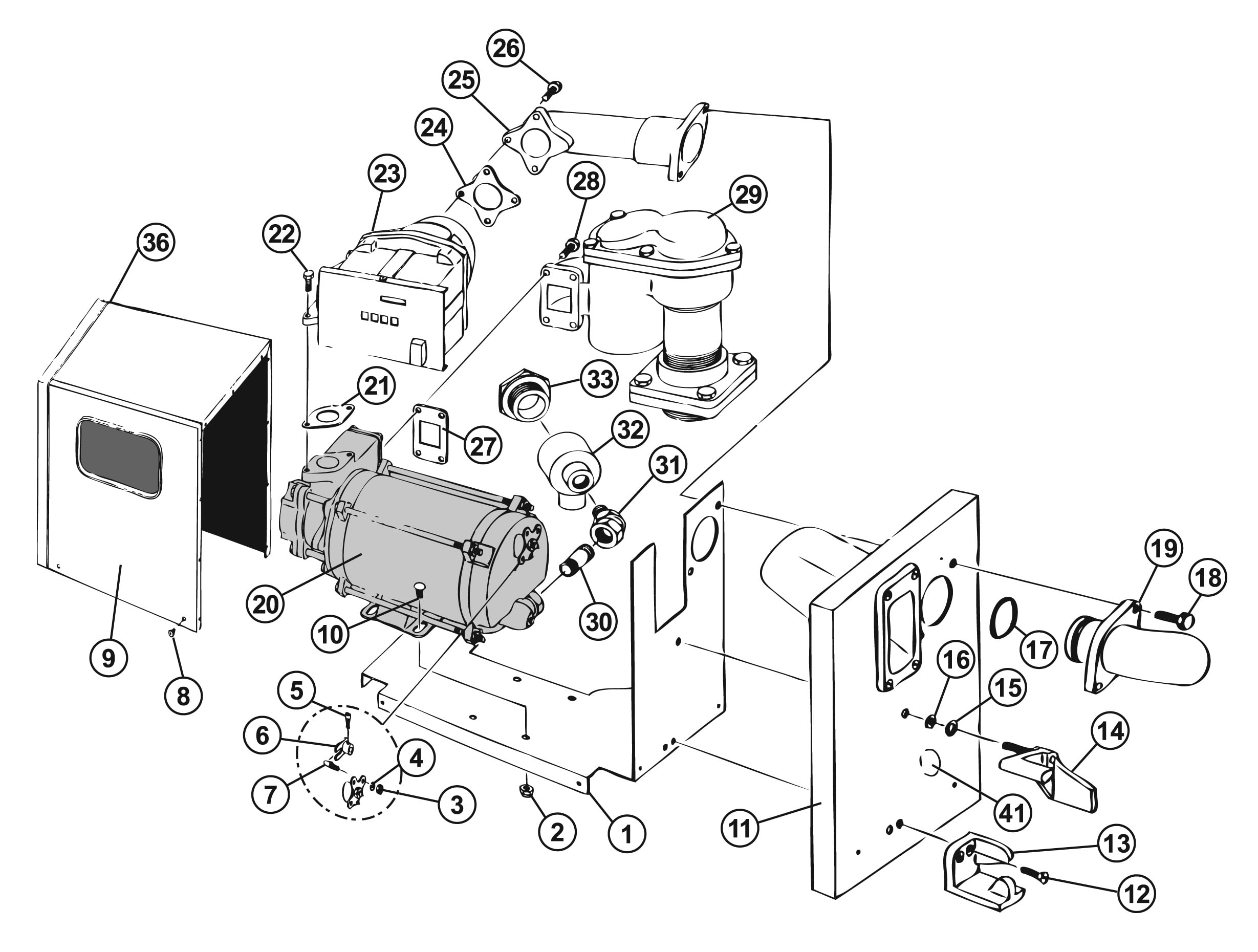

425 Assembly

AC Powered Pumps – Tokheim – 425

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description

1
Request Details
026519
Frame Assembly
2
BP-4217-11
038920
5/16-18 Hex Lock Nut
View
3
F-HN-0250-20
038860
Hex Nut, 1/4"
View
4
Request Details
068891
Lockwasher, 1/4"
5
Request Details
053516
Soc. Head Set Screw 10-32 x 1/4 Cup
6
Request Details
017566
Cam Assembly
7
BP-4215-20
042282
Pin
View
8
Request Details
053652
Phillips Head Screw, #8-32 x 1/2
9
Request Details
022102
Front Cover Assembly, CRS
9
Request Details
041276
Front Cover Assembly, SS
10
Request Details
013030
Carriage Bolt
11
Request Details
041382
Right Side Panel Assembly, CRS
11
Request Details
041831
Right Side Panel Assembly, SS
12
Request Details
052315
Mach. Screw, 1/4-20x5/8" (for 003673 Hanger)
12
BP-4211-42
051805
Screw (for 015139 Hanger, not shown)
View
13
BP-4210-87
003673
Nozzle Hanger (Auto Nozzle)
View
13
Request Details
015139
Nozzle Hanger (Manual Nozzle, not shown)
14
Request Details
051072
Switch Arm Assembly
15
Request Details
068281
Spring Washer
16
Request Details
068020
Washer, 5/16"
17**
BP-4210-51
049062
O-Ring, 1-11/16" ID
View
18
BP-4210-112
051895
Cap Screw 5/16-18 x 3/4"
View
19
BP-4210-38
003647
Discharge Flange
View
19
Request Details
003611
Discharge Flange w/ Vacuum Breaker Hole
20
BP-4218-25
F37683
Motor, Model 25 & 250, 60 Hz.
View
21**
BP-4210-42
026810
Gasket
View
22
Request Details
051900
Cap Screw, 5/16-18 x 7/8
23
Request Details
Meter, Register - Complete
23
BP-4210-30KP
S00758
Register Assembly (w/ Dial Glass)
View
23
BP-4210-30LS
S00766
Reg. Assy., Ext. Shaft/Pul (w/ Dial Glass)
View
23
BP-4210-30
048461
Register Assembly (no glass) (pictured)
View
24**
BP-4210-41
026809
Gasket
View
25
BP-4215-15
003541
Discharge Casting
View
26
Request Details
051900
Cap Screw, 5/16-18 x 7/8
27**
BP-4210-44
026812
Gasket
View
28
Request Details
051900
Cap Screw, 5/16-18 x 7/8
29
Request Details
063357
Strainer Block Assembly, Gasoline
29
Request Details
063358
Strainer Block Assembly, Diesel
30
Request Details
021532
Conduit, 1/2 x 1-3/4
31
Request Details
025015
Conduit Ell, 1/2 x 45
32
Request Details
003345
Junction Box
33
Request Details
003515
Junction Box Cover
34
Request Details
030430
Hose, 1" x 12' (not shown)
35
Request Details
038509
Nozzle, 402-Manual (not shown)
35
Request Details
038531
Alt. Nozzle, 7H-Automatic (not shown)
36
Request Details
022253
Cover Assembly (Top, Back & Left Side), CRS
36
Request Details
041291
Cover Assembly (Top, Back & Left Side), SS
37
BP-4210-58
066534
Vacuum Breaker Assembly, Threaded
View
37
BP-4211-23
066570
Vacuum Breaker Assembly
View
38
Request Details
063209
Eccentric Stop (not shown)
39
Request Details
052314
Screw (not shown)
40
Request Details
012267
Bezel
41
Request Details
047213
Plug

**Part is included in Repair Kit BP-4210-02
