26 Repair Kit

AC Powered Pumps – Gasboy Consumer Series Pumps – 26

Our respect for the iconic Gasboy pump means SVI will keep this great brand alive.

SVI is the exclusive supplier of Gasboy pump parts for repair and Tokheim Consumer Series Pumps. We stock repair parts for all Consumer Series Gasboy / Tokheim Pumps.

Add to
Quote
Add to
Order
--
SVI Part #
OEM #
Description

--

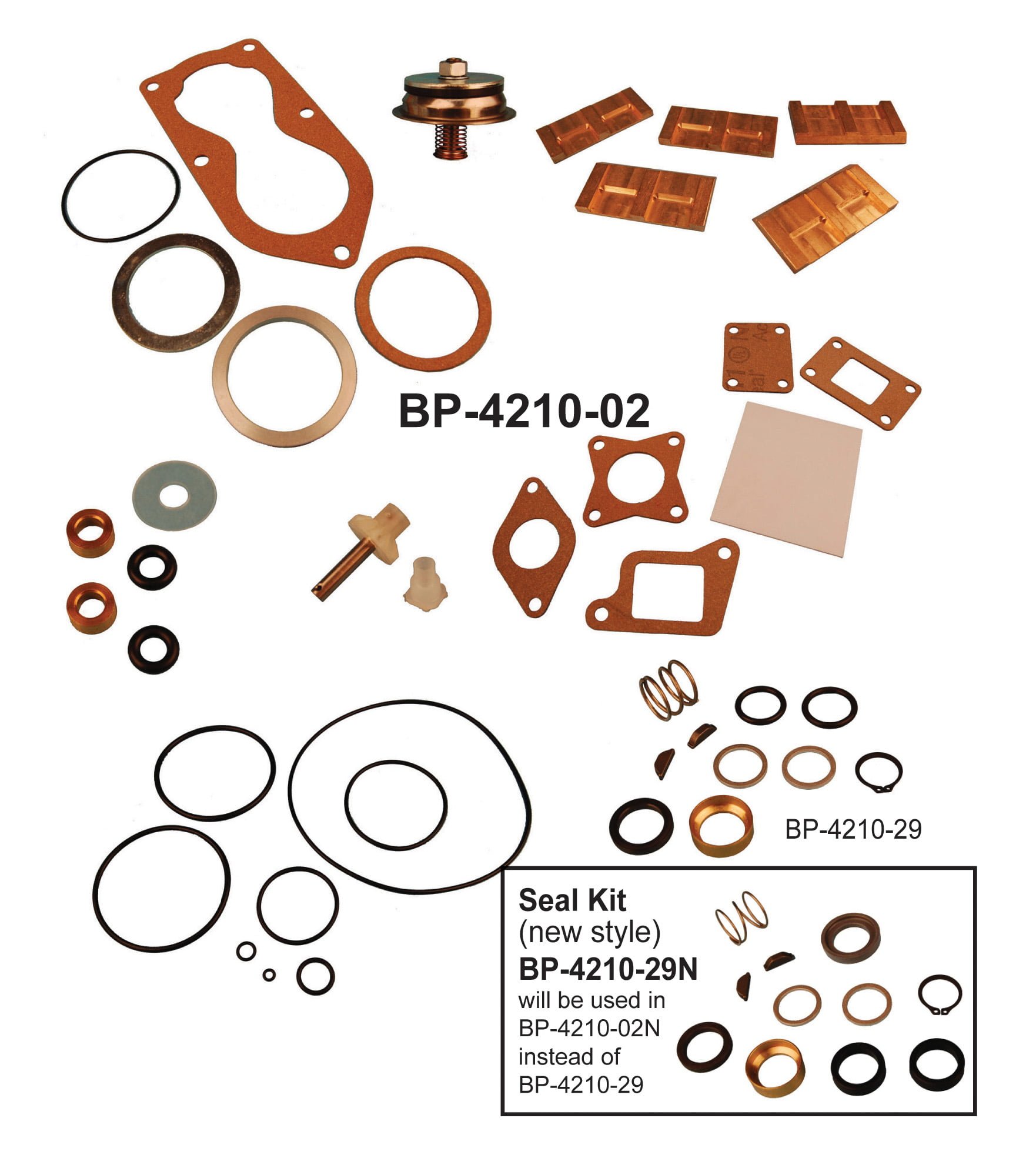

BP-4210-02
032892
Repair Kit for Series 25-26 (old style)
View
--
BP-4210-02N
032892
Repair Kit for Series 25-26 (new style)
View
--
BP-4210-40
014095
Bearing - Seal Stuffing Box
View
--
BP-4210-41
026809
Gasket, Discharge Flange
View
--
BP-4210-42
026810
Gasket, Inlet Manifold
View
--
BP-4210-43
026811
Gasket, Bypass Valve
View
--
BP-4210-44
026812
Gasket, Strainer Block
View
--
BP-4210-45
026814
Gasket
View
--
BP-4210-46
028736
Dial Glass
View
--
BP-4210-47
031345
Key, Spring
View
--
BP-4210-48
048865
O-Ring, 5/32 x 9/32, Buna-N
View
--
BP-4210-49
048895
O-Ring, 5/16 x 7/16, Buna-N
View
--
BP-4210-33
048941
O-Ring, .612ID x .103W
View
--
BP-4210-50
036995
Meter-Parts Stuffing Box
View
--
BP-4210-51
049062
O-Ring, 1-11/16 x 1-7/8, Buna-N
View
--
BP-4210-52
049063
O-Ring, 6 x 6-3/16, Buna
View
--
BP-4210-53
049180
O-Ring, 3 x 3-1/4 Buna-N
View
--
BP-4210-54
054512
Drive Shaft Assembly
View
--
BP-4210-07
067061
Vane for series 25-26
View
--
BP-4210-07-5
Vanes (5-pack)
View
--
BP-4210-55
049167
O-Ring, 2-1/2 x 2-11/16, Buna-N
View
--
BP-4210-60
032083
Check Valve Retrofit Kit, Model 25-28, 250
View
--
BP-4210-29
054030
20 Series Seal Kit (old style)
View
--
BP-4210-29N
054030
20 Series Seal Kit (new style)
View
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
