1/2" Maxline Master Kit 100' w/3 Outlets

MaxLine Master Kit 1/2″ x 100 feet Tubing with 3 Outlets

Industrial Compressed Air Piping System

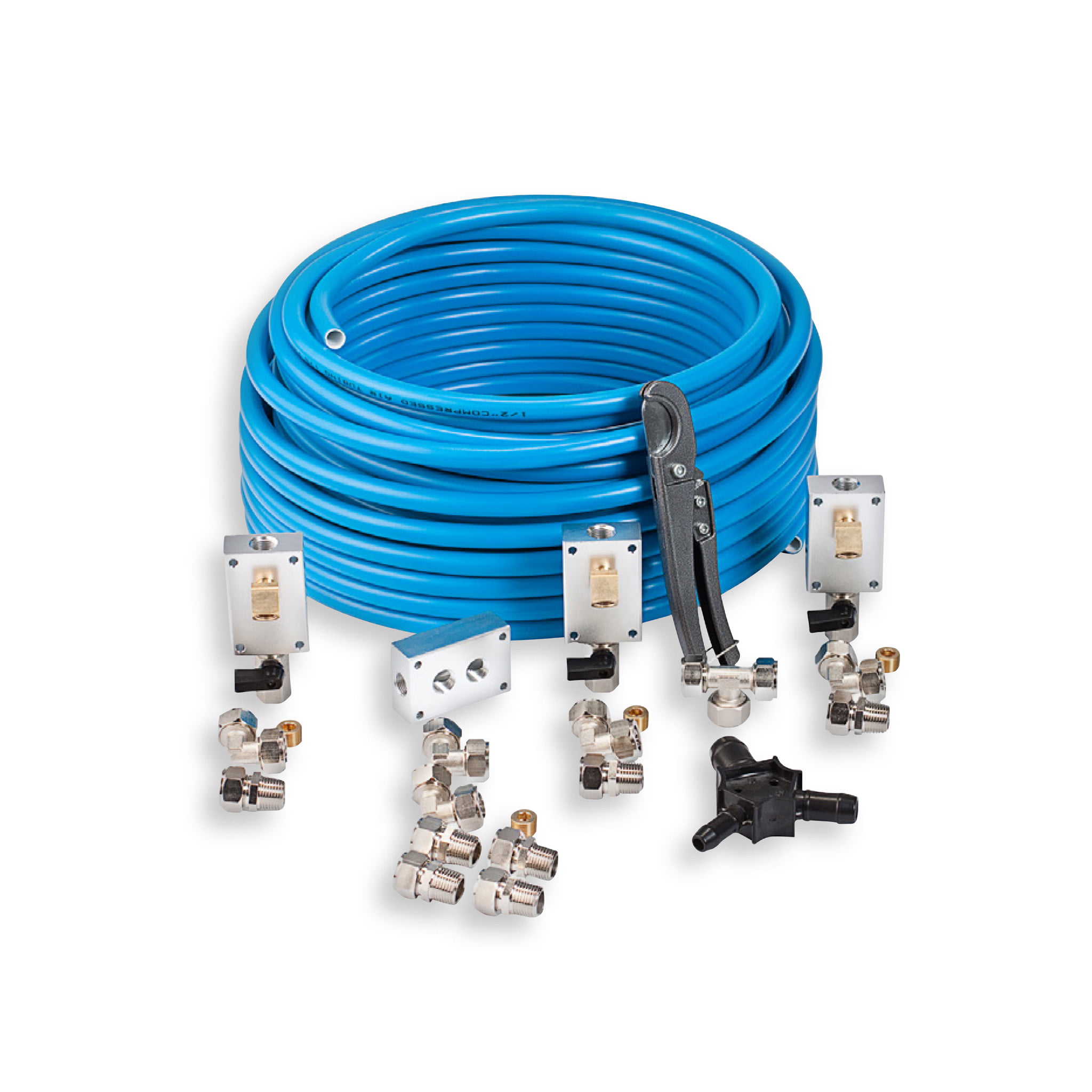

KIT CONTAINS:

• (1) QP-9106-026 100 ft. x 1/2” MaxLine Tubing
• (1) QP-9138-220 Manifold Block (3/8” Ports x 4)
• (3) QP-5590-120 Outlet Blocks
• (4) QP-5550-135 3/8” NPT Plugs
• (1) QP-9108-010 Tee Fitting
• (5) QP-9108-080 Elbow Fittings
• (3) QP-5550-120 3/8” NPT Drain Valves
• (6) QP-9108-001 1/2” Tubing x 3/8” NPT Fitting
• (1) QP-9108-002 1/2” Tubing x 1/2” NPT Fitting
• (3) QP-5550-130 1/4” 45° Brass St. Elbows
• (1) QP-9108-091 Tubing Cutter
• (1) QP-9108-095 Bevel Tool
• (5) QP-9108-054 Spare O-Rings

Set up a compressed air system with the 1/2 in. MaxLine Master Kit with 3 air outlet locations. The Max Line Semi-Flexible Compressed Air Tubing has an aluminum core sandwiched between an inner and outer layer of polyethylene. Tubing holds any hand bent shape. Reduce shop clutter with this industrial compressed air piping system. No glue, soldering or crimping needed. Simply cut the tubing to length, insert in the fitting and tighten. Easy to expand with more air outlet locations or modify later. Tubing size is 5/8” OD x 1/2” ID.

Use only with Maxline 1/2 in. system.
Use Wall Clips QP-9108-064 • Use RapidAir Coupler QP-2270-221
Use Filter Regulator QP-2293-216 1/2 Ports

SVI’s QP-Series Quick Pneumatics Products of air system installation supplies are ready to help provide quick, effective, clean, and low-cost air delivery systems. SVI offers a variety of Compressed Air Piping Systems. Options available for big and small shops. SVI has the right QP Quick Pneumatic Products for many industries including: Automotive Shops, Heavy Truck Repair, Industrial, Manufacturing, Small Businesses, Home Garages, Hobbyist, Food / Beverage, Hospitals / Medical, and More!
