1" Fastpipe Cooling Kit

FastPipe Cooling Kit for 1″ System of Modular Aluminum Compressed Air Piping

• Easy to install, versatile solution to eliminate excess moisture in an air system.

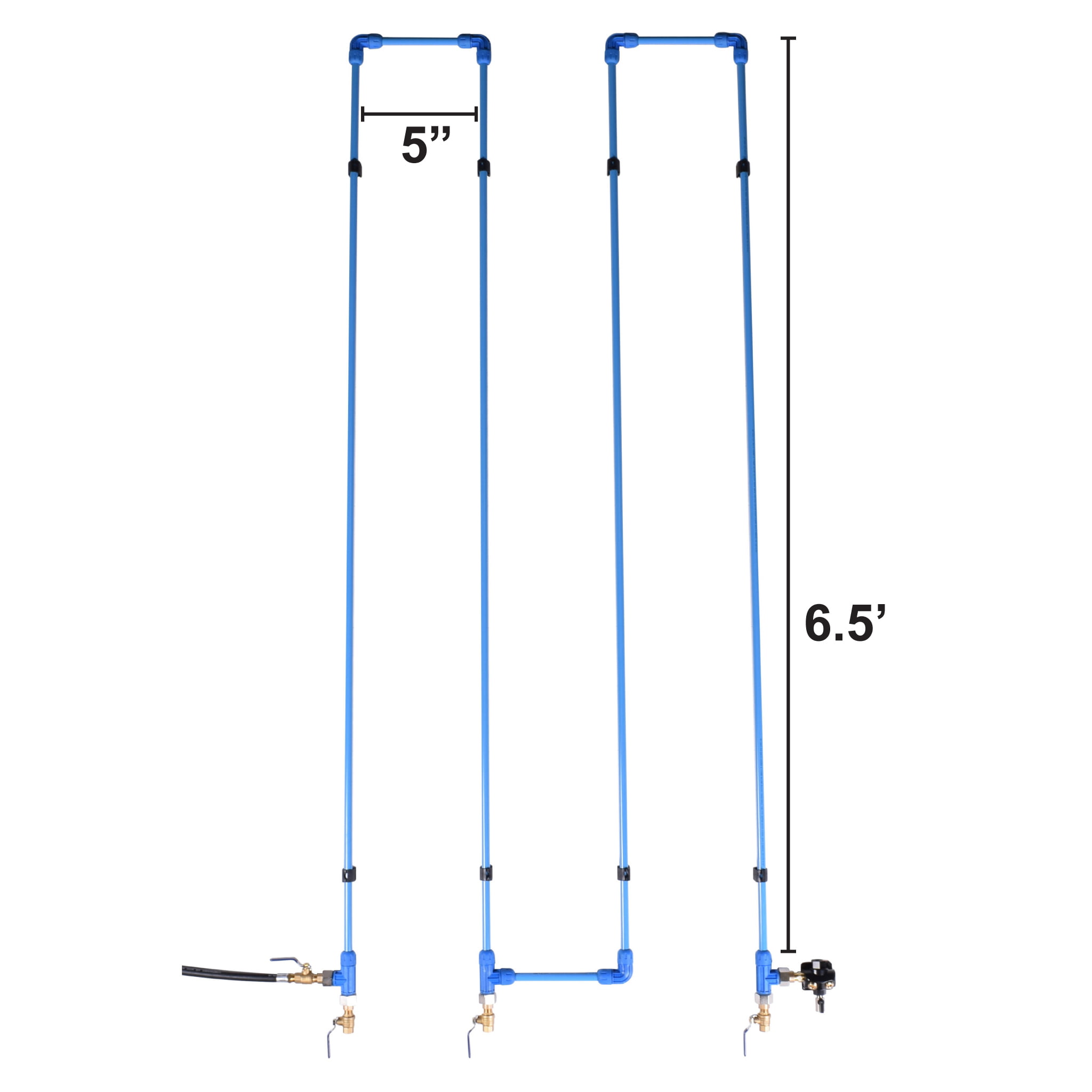

• Hot air flows into the cooling loop and travels a total distance of approximately 27 feet, cooling the air and causing water vapor to condense
• Rectangular construction allows for easy draining through the ball valves
• Inexpensive compared to the cost of a powered air dryer or aftercooler

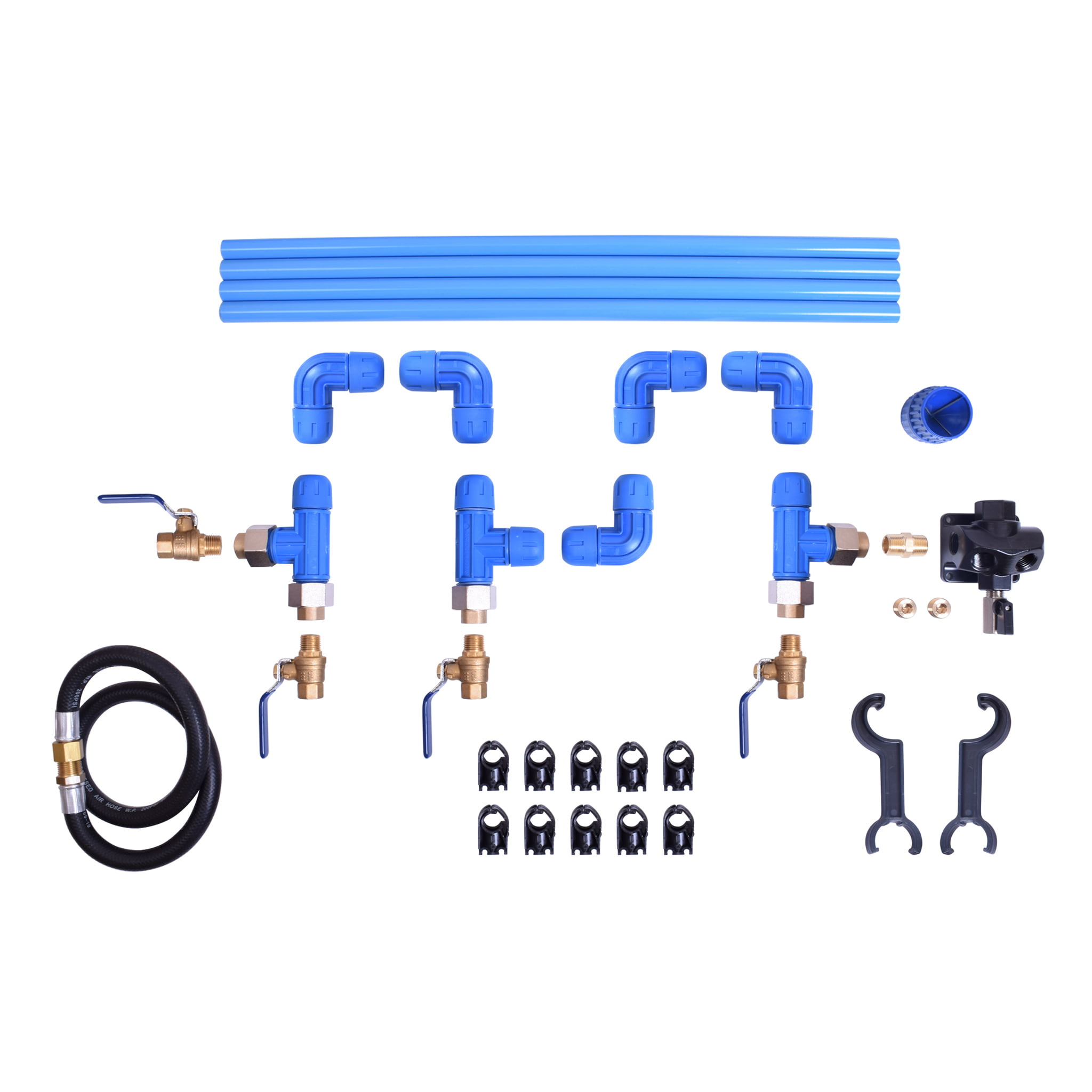

KIT INCLUDES:

• (4) QP-1542-863 1″ OD x 7′ 6″ Long Pipe
• (5) QP-1542-003 1” Fastpipe Elbows
• (3) QP-1542-009 1” Fastpipe Reducing Tee x 1/2” FNPT
• (2) QP-1543-100 1” Fastpipe Large Hex Nut
• (2) QP-1543-111 1” Fastpipe Insert Gasket
• (2) QP-1543-175 1” Fastpipe Brass Insert x 3/4” FNPT
• (1) QP-2235-075M 3/4” NPT Male x Female Brass Ball Valve
• (3) QP-2235-050M 1/2″ NPT Male x Female Brass Ball Valve
• (1) QP-5550-620 3/4″ x 1/2” NPT Brass Hex Nipple
• (1) QP-1542-025 Wall Outlet with 3/4″ FNPT Inlet
• (1) QP-1540-142 Deburr Tool (3/4” & 1”)
• (2) QP-1542-020 3/4” Spanner Wrench
• (1) QP-1542-022-10 3/4” Fastpipe Wall Clips (10 Pack)
• (1) QP-1540-215 3/4” x 3’ Compressor Jumper Hose

Ships UPS

Use only with Fast Pipe 3/4 inch System

SVI’s QP-Series Quick Pneumatics Products of air system installation supplies are ready to help provide quick, effective, clean, and low-cost air delivery systems. SVI offers a variety of Compressed Air Piping Systems. Options available for big and small shops. SVI has the right QP Quick Pneumatic Products for many industries including: Automotive Shops, Heavy Truck Repair, Industrial, Manufacturing, Small Businesses, Home Garages, Hobbyist, Food / Beverage, Hospitals / Medical, and More!
