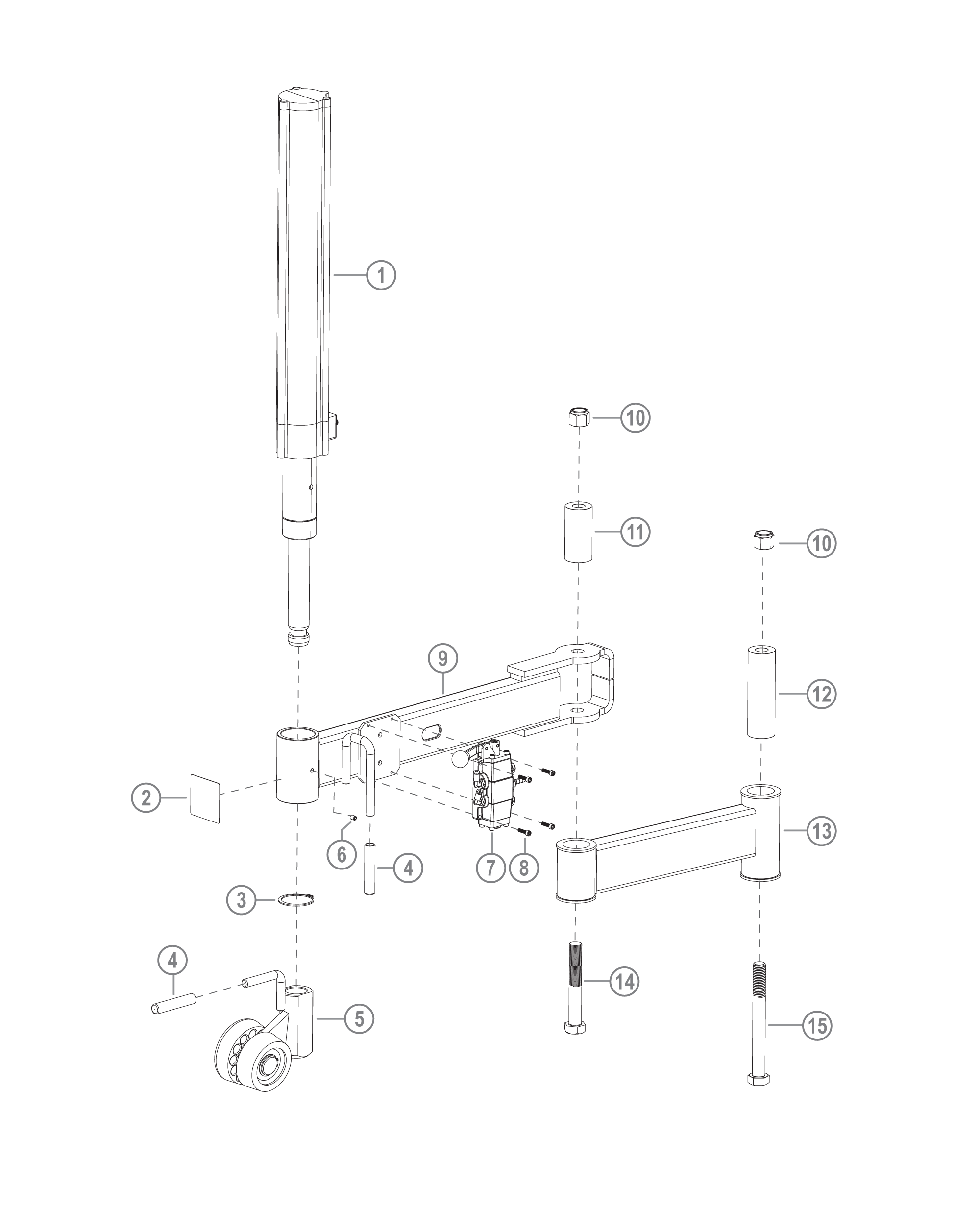

RoboRoller™ Powered Assist Assembly

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description
QTY

1
BW-2509-27
85608884
Robo Arm Piston
1
View
2
BW-2900-24
85000204
Up/Down Decal
1
3
BW-1236-37
8183637
Ext Retaining Ring, 2"
1
View
4
BW-2502-30
7000230
1/2” Rubber Hand Grip
2
5
BW-2900-25
8185598
Aux. Roller Assembly
1
6
BW-2900-26
902308
1/4-20 x 3/8 Knurled Cup PT SHSS
1
7
BW-2900-27
85611866
Valve Assembly
1
8
BW-1220-01
8182001
Socket Head Cap Screw, 10-24 x 3/4
1
View
9
BW-2900-28
85611802
Front Arm Weldment (Black)
1
10
BW-1220-16
8182016
Nylon Lock Nut, 3/4”-10
2
View
11
BW-2900-29
85611823
Pivot Pin
1
12
BW-1210-38
8181038
Helper Arm Pivot Pin
1
View
13
BW-2900-30
85611806
Rear Arm Weldment (Black)
1
14
BW-1225-79
8182579
Hex Head Cap Screw
1
View
15
BW-2500-16
85610016
Hex Head Cap Screw, 3/4-10 x 7
1
