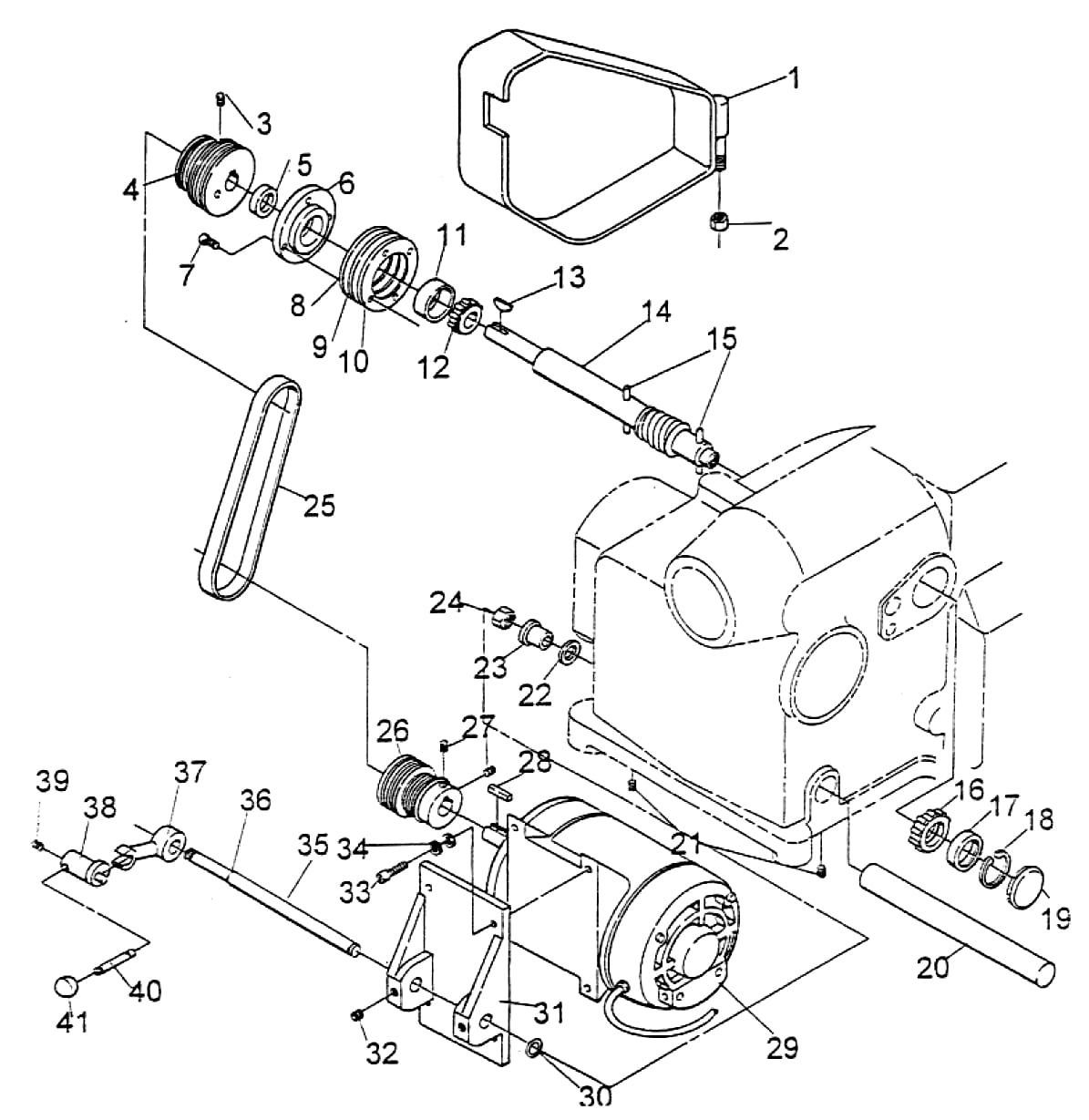

Repair Parts for RELS 2000 Main Motor

Combination Brake Lathe – RELS – 2000

Add to
Quote
Add to
Order
Item
SVI #
OEM #
QTY
Description

1
RM-40065
40065
1
Belt Guard
View
2
RM-40066
40066
1
Lock Nut
View
3
RM-40074N
40074N
2
Set Screw
View
4
RM-40021
40021
1
Pulley
View
5
RM-40039
40039
1
Oil Seal
View
6
RM-40036
40036
1
Bearing Seal Cap
View
7
RM-40038
40038
4
Screw
View
8
RM-40037
40037
1
Shim
View
9
RM-40037A
40037A
1
Shim
View
10
RM-40037B
40037B
1
Shim
View
11
RM-40035A
40035A
1
Race
View
12
RM-40035
40035
1
Bearing
View
13
RM-40069
40069
1
Woodruff Key
View
14
RM-40040
40040
1
Drive Shaft
View
15
RM-40040A
40040A
2
Roll Pin
View
16
RM-40035
40035
1
Bearing
View
17
RM-40035A
40035A
1
Race
View
18
RM-40045
40045
1
Retaining Ring
View
19
RM-40042
40042
1
Freeze Plug
View
20
RM-40063
40063
1
Guide Bar
View
21
RM-40064
40064
2
Set Screw
View
22
RM-40050
40050
1
O-Ring
View
23
RM-40049
40049
1
Bushing
View
24
RM-40051
40051
1
Hex Nut
View
25
RM-40073
40073
1
Belt
View
26
RM-40022
40022
1
Pulley
View
27
RM-40074N
40074N
2
Set Screw
View
28
RM-40052-1
40052-1
1
Key
View
29
RM-40052
40052
1
Main Motor
View
30
RM-40048
40048
1
O-Ring
View
31
RM-40053
40053
1
Motor Mount Bracket
View
32
RM-40057
40057
2
Set Screw
View
33
RM-40203
40203
4
Bolt
View
34
RM-40056
40056
4
Lock Washer
View
35
RM-40047
40047
1
Motor Mount Shaft
View
36
RM-40189
40189
1
O-Ring
View
37
RM-40058
40058
1
Belt Tension Lever
View
38
RM-40059
40059
1
Belt Release Pin
View
39
RM-40060
40060
1
Set Screw
View
40
RM-40061
40061
1
Belt Release Handle
View
41
RM-40062
40062
1
Red Knob
View
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
