Repair Parts for Atlas Lift 9KBP

Above Ground 2-Post Lifts – Atlas – 9KBP

Repair parts for Atlas Lifts Model 9KBP are available from SVI.

SVI is the go-to supplier for repair parts for Atlas Lifts. Whether you need equalizer and lifting cables or chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units and parts, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Atlas lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

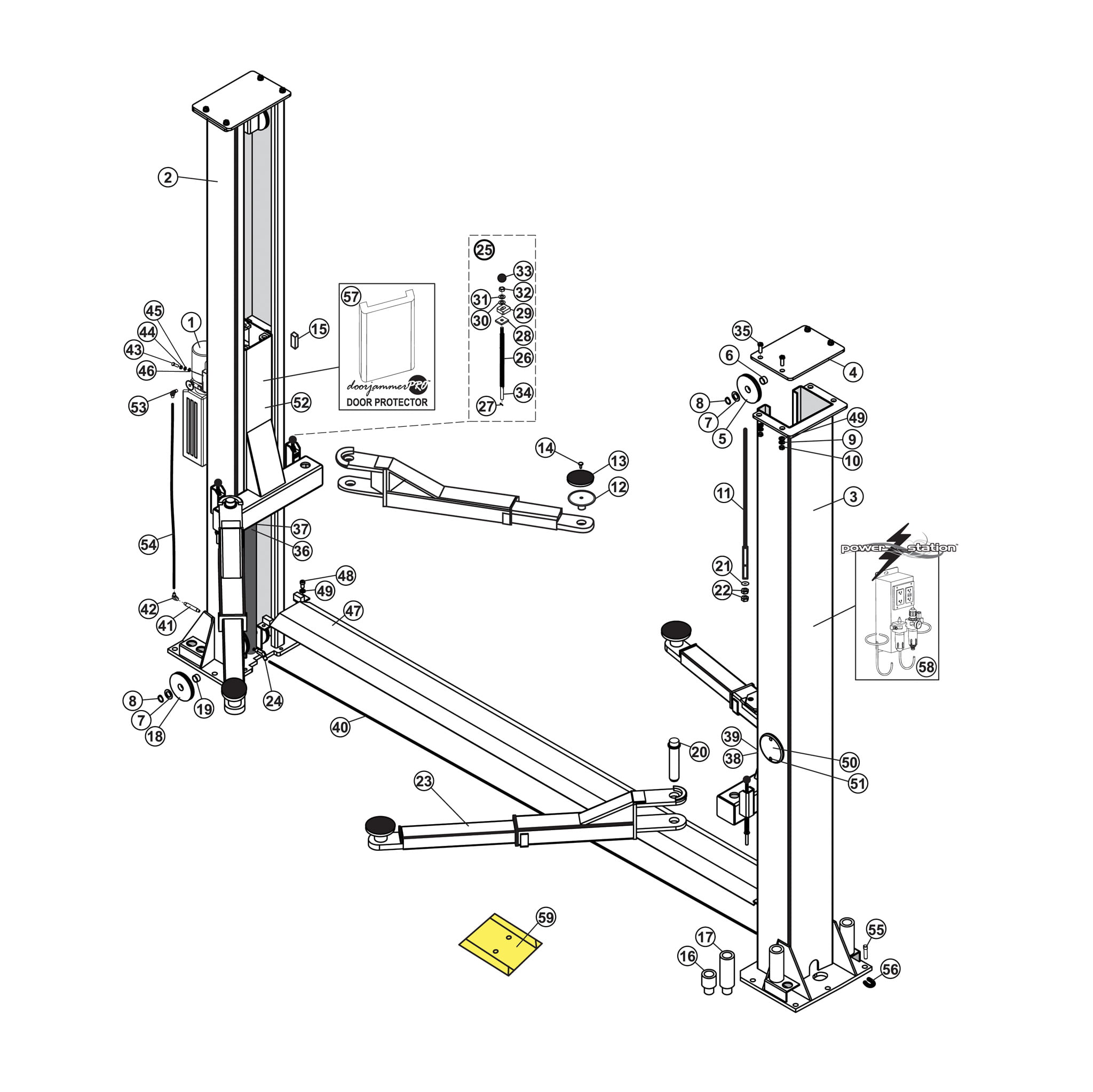

Also see this additional breakdown for Atlas Lift 9KBP:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
QL40-000-06
1
Hydraulic Power Unit

2
QL40-210-R0
1
Column - Active / Power Unit Side

3
QL40-210-L0
1
Column - Driven Side

4
QL40-710-00
2
Column Top

5
QL40-700-01
2
Cable Sheave - Thick

6
QL40-700-02
2
Bushing for Thick Cable Sheave

7
QL40-200-04
8
Washer for Cable Sheave

8
GB894.1-86
6
Retaining Ring

9
GB93-87 D12
8
Spring Washer 12

10
GB6170-86 M12
8
Hex Nut M12

11
QL40-000-01
2
Equalizer Cable

12
QL40-000-02
4
Lift Pad Adapter Base

13
QL40-000-03
4
Rubber Arm Pad (1)

14
GB70-85
4
Hex Socket Head Screw

15
QL40-500-01
16
Slider Block

16
QL40-000-04
4
Nesting Height Extension - Short

17
QL40-000-05
4
Nesting Height Extension - Tall

18
QL40-200-03
4
Cable Sheave - Thin

19
QL40-200-05
4
Bushing for Thin Cable Sheave

20
QL40-800-00
4
Arm Pin

21
GB97.1-85 D20
4
Flat Washer 20

22
GB6170-86 M20
8
Hex Nut M20

23
QL40-300-00
4
Straight Arm

24
QL40-100-06
2
45° Fitting

25
QL40-530-00
4
Arm Restraint Pin Assembly

26
QL40-530-02
4
Arm Restraint Spring

27
GB879-86
4
Roll Pin

28
QL40-530-03
4
Gear Gasket

29
QL40-530-04
4
Arm Restraint Engage Gear / Rack (small)

30
GB97.1-85 D10
8
Flat Washer 10

31
GB93-87 D10
4
Spring Washer 10

32
GB6170-86 M10
4
Hex Nut M10

33
QL40-000-15
4
Arm Restraint Ball Knob

34
QL40-530-01
4
Pull Rod

35
GB5782-86
8
Hex Bolt

36
QL40-100-R0
1
Hydraulic Cylinder - Active / Power Side

37
QL40-100-R0x
1
Seal Kit for Hyd. Cylinder (Power)

38
QL40-100-L0
1
Hydraulic Cylinder - Driven

39
QL40-100-L0x
1
Seal Kit for Hyd. Cylinder (Driven)

40
QL40-000-11
1
Tubing (cylinders - cylinder)(cylinder hose)2830mm

41
QL40-000-10
1
Connector

42
QL40-000-09
1
Elbow Fitting

43
GB5782-86 M8x25
4
Hex Bolt M8x25

44
GB93-87 D8
4
Spring Washer 8

45
GB97.1-85 D8
8
Flat Washer 8

46
GB6170-86 M8
4
Hex Nut M8

47
QL40-600-00
1
Floorplate

48
GB5782-86
4
Hex Bolt

49
GB97.1-85 D12
12
Flat Washer 12

50
QL40-200-01
2
Window panel

51
GB818-85 M6X8
4
Pan Head Screw M6x8

52
QL4W-510-00-CB-X
2
Carriage

53
QL40-000-07
1
Elbow Fitting

54
QL40-000-08
1
Hyd. Hose (Cyl to PU) 62-1/4"

55
BH-7075-03
QL40-000-14
10
Wedge Anchor Bolt

56
1
Shim Assortment 150 Pieces; 3 Sizes

57
1
DoorJammerPRO™ Car Door Protector 12"Tall (pair)

58
1
Power Station Air/Electric Utility Box

59
1
Single Wheel Spotter Dish 10-3/4" x 15" Wide

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
