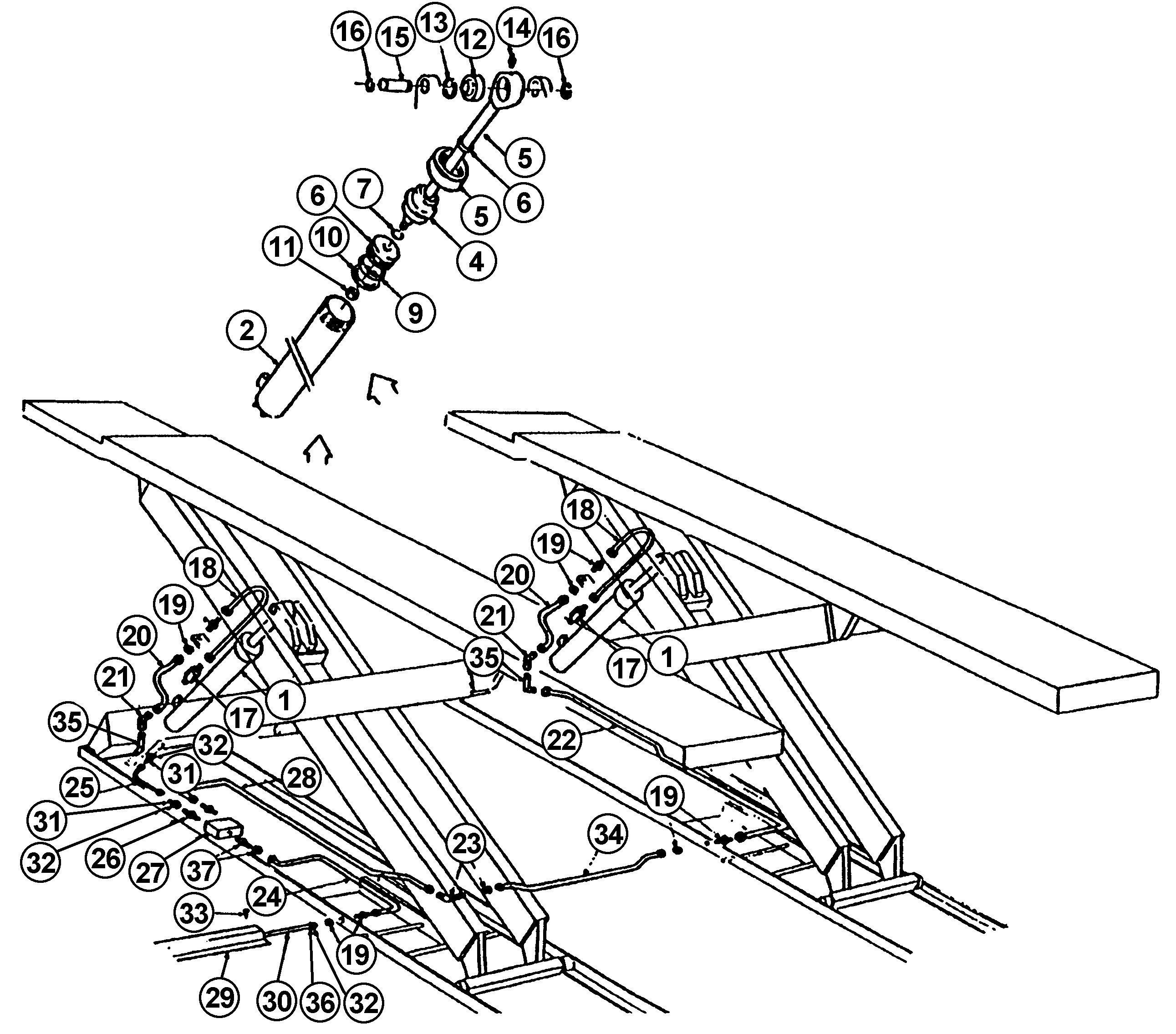

Parts for Wheeltronic Space Saver 12000 Hydraulics

Above Ground / Surface Mount Scissor Lifts – Wheeltronic – Space Saver 12000

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7796-08
3-0000
2
Hydraulic Cylinder
View
2
BH-7796-24
3-0077
1
Tube Weldment
View
3
BH-7790-90
1-0011
1
Nut Gland
View
4
BH-7790-89
1-0008
1
Gland
View
5
BH-7793-44
2-0001
1
Rod Weldment
View
6*
BH-7800-52
6-0001
1
Wiper Ring
View
7*
BH-7800-53
6-0002
1
O Ring
View
8
BH-7790-88
1-0007
1
Piston
View
9*
BH-7800-54
6-0003
1
Seal Ring
View
10*
BH-7800-55
6-0004
1
Wear Ring
View
11
F-NL-0875-14
6-0005
1
Nut, Nylon 7/8"-14
View
12
BH-7800-56
6-0007
1
Bearing
View
13
BH-7800-67
6-0070
1
Retaining Ring
View
14
BH-7800-51
6-0000
1
Grease Nipple
View
15
BH-7790-93
1-0029
2
Pin
View
16
BH-7798-49
6-0340
4
Retaining Ring
View
17
BH-7790-20
6-0025
2
Velocity Fuse
View
18
BH-7791-17
1-0093
2
Tube Assembly, Cylinder
View
19
BH-7800-61
6-0013
4
Blkhd. Conn. 3/8" JIC C/W Jam Nut
View
20
BH-7792-03
1-0649
2
Hose Assembly, 1200
View
21
BH-7801-11
6-0175
2
Adapter, 45° Elbow
View
22
BH-7793-64
2-0068
1
Blkhd., 90° Elbow C/W Jam Nut
View
24
BH-7793-61
2-0064
1
Tube Assembly
View
25
BH-7793-78
2-0182
1
Tube Assembly
View
26
BH-7801-04
6-0156
2
Adapter, 3.8 BSP to 3/8" JIC
View
27
BH-7790-16
6-0173
1
Flow Divider (with Fittings)
View
28
BH-7793-63
2-0066
1
Tube Assembly
View
29
BH-7793-53
2-0015
4
Line Cover
View
30
BH-7801-08
6-0171
1
Supply Tube, 3/8" .049" Wall x 20'
View
31
BH-7801-41
6-0378
2
Reducer Nipple, 3/8" to 1/4"
View
32
Request Details
6-0016
4
Nut, 3/8" Tube
33
BH-7801-00
6-0141
16
Concrete Nail, 1/4" x 1"
View
34
BH-7794-09
2-0519
1
Tube Assembly
View
35
BH-7801-10
6-0174
2
Adapter, 90° Extended
View
36
BH-7800-64
6-0017
2
Sleeve
View
37
BH-7801-12
6-0176
1
Blkhd. Adapter 3/8" BSP to 3/8" JIC
View
*
BH-7790-47
0-0007
Hydraulic Cylinder Seal Kit
View
--
BH-7790-63
0-0123
Hydraulic Power Pack 220V/1PH 2 Stage
View
--
BH-7790-51
0-0015
Hydraulic Power Pack 550V/3PH
View
--
BH-7790-52
0-0016
Hydraulic Power Pack 220V/3PH
View
