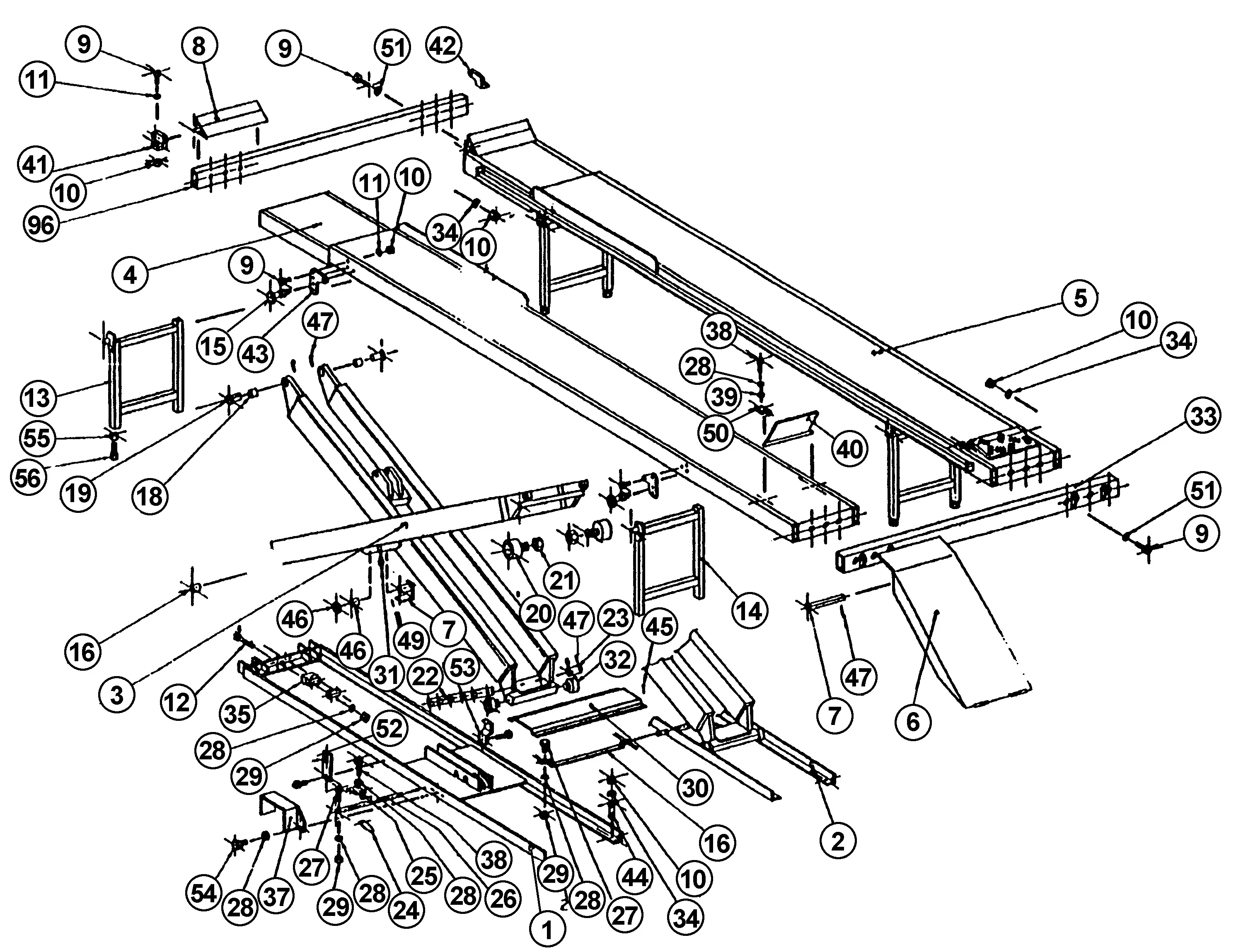

Parts for Wheeltronic Space Saver 12000

Above Ground / Surface Mount Scissor Lifts – Wheeltronic – Space Saver 12000

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
4-0160
1
Base Frame, Driver Side

2
4-0161
1
Base Frame, Passenger Side

3
4-0153
2
Scissor Weldment

4
4-0158
1
Alignment Deck, Driver Side

5
4-0159
1
Alignment Deck, Passenger Side

6
3-0285
2
Approach Ramp

7
1-0095
2
Ramp Pin

8
2-0432
2
Wheel Stop (Front)

9
F-HN-0500-13-1500
6-0291
32
Hex Nut, 1/2"-13 x 1-1/2"

10
6-0035
36
Hex Nut, 1/2"-13

11
6-0059
22
Lockwasher, 1/2"

12
6-0177
4
1/4"-20 x 2" Hex Head Capscrew

13
3-0300
2
Leveling Leg. Front DS, Rear PS

14
3-0299
2
Leveling Leg, Front PS, Rear DS

15
2-0086
4
Plunger Pin Assembly

16
2-0071
1
Safety Release Conn. Rod

17
1-0106
4
Fulcrum Pin, 1-1/4"

18
6-0085
8
Bushing, 1"

19
1-0107
8
End Hinge Pin, 1"

20
6-0076
4
Cam Follower

21
6-0040
4
Jam Nut, 5/8"-18

22
2-0405
2
Safety Bar

23
1-0547
2
Pins

24
2-0194
2
Safety Pedal

25
1-0189
2
Safety Release Tab

26
2-0428
2
Safety Release Rod

27
6-0027
6
Hex Bolt, 1/4"-20 x 1-1/4"

28
6-0056
18
Lockwasher, 1/4"

29
6-0032
10
Hex Nut, 1/4"-20

30
3-0164
1
Center Cover

31
6-0000
4
Grease Nipple

32
6-0077
4
Cam Follower

33
3-0297
1
Rear Crossmember

34
Request Details
6-0439
16
Plain Washer, 1/2"

35
6-0172
2
Rubber Support Assembly

36
3-0298
1
Front Crossmember

37
1-0698
2
Toe Guard

38
6-0178
8
Hex Bolt, 1/4"-20 x 3/4"

39
6-0060
4
Flat Washer, 1/4"

40
2-0343
2
Rear Wheel Stop

41
1-0691
1
Front W/S Bracket, D.S.

42
1-0690
1
Front W/S Bracket, P.S.

43
2-0118
4
Outside Leg Bracket

44
6-0140
16
Wedge Anchor, 1/2" x 4-1/2"

45
6-0141
4
Concrete Nail, 1/4" x 1"

46
6-0084
8
Bushing, 1-1/4"

47
6-0115
14
Cotter Pin

48
1-0140
4
Washer

49
6-0146
4
Spring Pin, 3/16" x 2"

50
1-0432
4
Rear Wheel Stop Clip

51
Request Details
6-0439
6
Flat Washer

52
1-0728
4
Shipping Bracket Flat

54
6-0554
4
Hex Bolt, 1/4"-20 x 2-1/2"

55
Request Details
6-0041
8
Jam Nut

56
Request Details
6-0050
8
Tap Bolt, 3/4" x 4"
