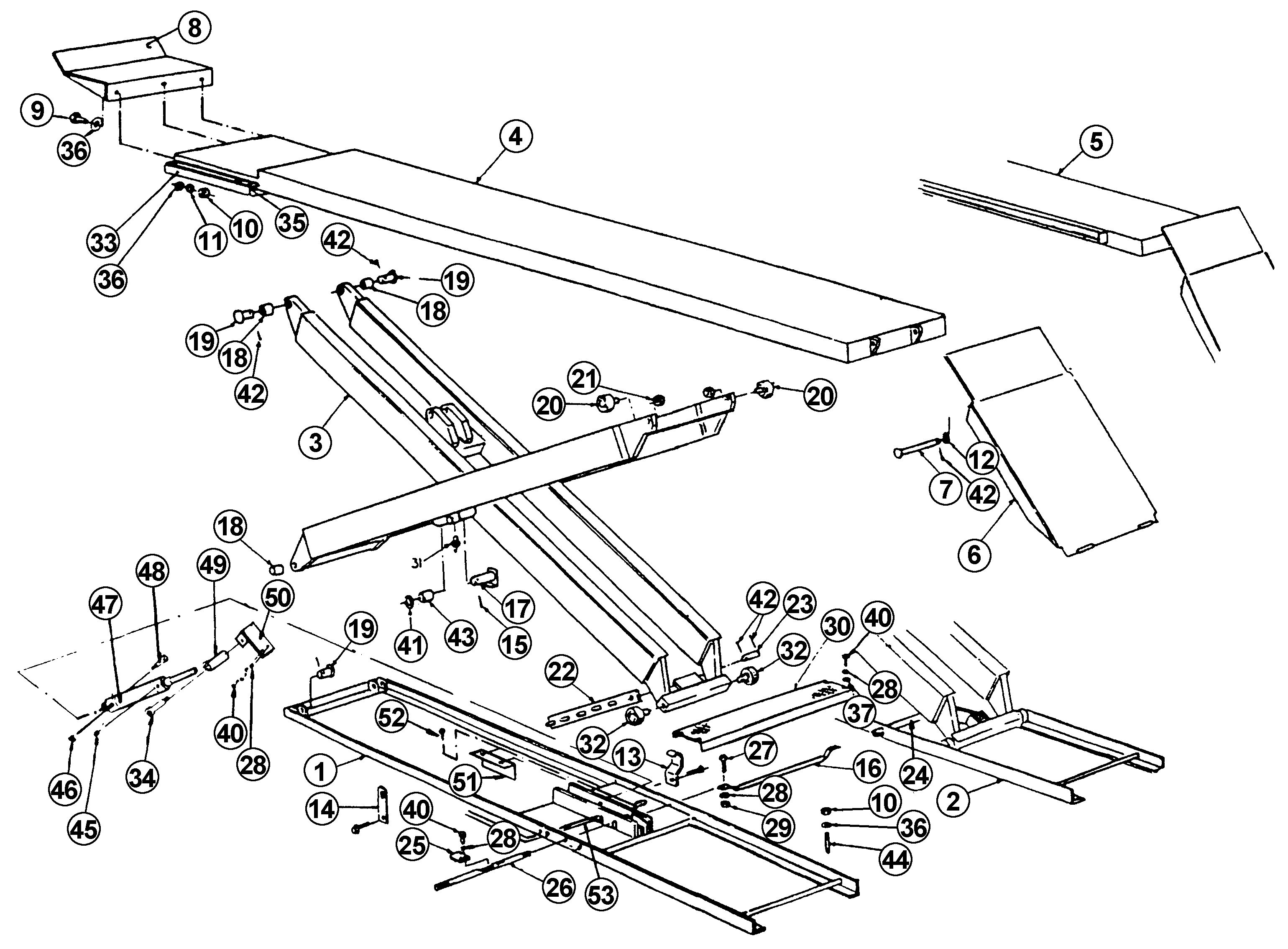

Parts for Wheeltronic Bay Saver 48109

Above Ground / Surface Mount Scissor Lifts – Wheeltronic – Bay Saver 48109

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7799-08
4-0112
1
Base Frame, L.S.
View
2
BH-7799-09
4-0113
1
Base Frame, R.S.
View
3
BH-7798-87
4-0002
2
Scissor Weldment
View
4
BH-7799-78
4-0379
1
Alignment Deck, L.S. (144" W/B)
View
4
BH-7799-87
4-0415
1
Alignment Deck, L.S. (172" W/B)
View
5
BH-7799-79
4-0380
1
Alignment Deck, R.S. (144" W/B)
View
5
BH-7799-88
4-0416
1
Alignment Deck, R.S. (172" W/B)
View
6
BH-7796-61
3-0285
2
Approach Ramp
View
7
BH-7791-19
1-0095
2
Ramp Pin
View
8
BH-7794-76
2-0851
2
Wheel Stop (Front)
View
9
F-HC-0500-13-1500
6-0291
6
Hex Bolt, 1/2"-13 x 1-1/2"
View
10
F-HN-0500-13
6-0035
18
Hex Nut, 1/2"-13
View
11
F-LW-0500
6-0059
6
Lock Washer, 1/2"
View
12
Request Details
6-0808
2
51/64" x 1" x 1/8" Thick Flat Washer
13
BH-7793-70
2-0112
2
Shipping Bracket
View
14
BH-7793-88
2-0266
2
Flat Shipping Bracket
View
15
BH-7801-02
6-0146
4
Spring Pin 3/16" x 2"
View
16
BH-7793-66
2-0071
1
Safety Rel. Conn. Rod
View
17
BH-7805-52
1-0106
4
Fulcrum Pin, 1-1/4"
View
18
BH-7800-70
6-0085
8
Bushing, 1"
View
19
BH-7791-29
1-0107
8
End Hinge Pin, 1"
View
20
BH-7801-88
6-0637
4
Cam Follower
View
21
F-JN-0625-18
6-0040
4
Jam Nut, 5/8"-18
View
22
BH-7794-01
2-0405
2
Safety Bar
View
23
BH-7791-81
1-0547
2
Safety Pins
View
24
BH-7793-65
2-0069
1
Safety Release Rod
View
25
BH-7791-46
1-0189
2
Safety Release Tab
View
26
BH-7795-01
2-0985
1
Safety Rel. Rod, (Air Safety)
View
27
F-HC-0250-20-1250
6-0027
2
Hex Bolt, 1/4"-20 x 1-1/4"
View
28
F-LW-0250
6-0056
12
Lock Washer, 1/4"
View
29
F-HN-0250-20
6-0032
2
Hex Nut, 1/4"-20
View
30
BH-7796-84
3-0365
1
Center Cover
View
31
BH-7800-51
6-0000
4
Grease Nipple
View
32
BH-7790-26
6-0077
4
Cam Follower
View
33
BH-7793-97
2-0362
2
Pull Out Step Assembly
View
34
BH-7791-09
6-0206
1
Shoulder Bolt, 3/8" x 1"
View
35
BH-7792-14
1-0749
2
Safety Waslk Tape
View
36
Request Details
6-0063
24
Plain Washer, 1/2"
37
F-FW-0250-USS
6-0060
4
Flat Washer, 1/4"
View
40
F-HC-0250-20-0750
6-0178
10
Hex Bolt, 1/4"-20 x 3/4"
View
41
BH-7791-42
1-0140
4
Washer
View
42
BH-7798-76
6-0115
14
Cotter Pin, 1/8" x 2"
View
43
BH-7800-69
6-0084
4
Bushing, 1-1/4"
View
44
BH-7800-99
6-0140
12
Wedge Anchor, 1/2" x 4-1/2"
View
45
BH-7792-33
1-0804
1
Orifice (0.025")
View
46
BH-7802-31
6-0709
1
90° Elbow, 1/8" NPT to 1/4" Poly Tube
View
47
BH-7803-84
6-1232
1
Air Cylinder
View
48
BH-7798-16
6-0246
1
Shoulder Bolt, 5/16" x 1"
View
49
BH-7792-93
1-1245
1
Rod End
View
50
BH-7792-94
1-1246
1
Actuator Arm
View
51
BH-7795-16
2-1055
1
Safety Cover
View
52
Request Details
6-0505
2
Self Tap. Screw, #10-24 x 1/2"
53
BH-7803-99
6-1270
1
Poly Tube, 1/4" (30')
View
54
BH-7805-127
6-1405
1
Hydraulic Leveling Decal
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
