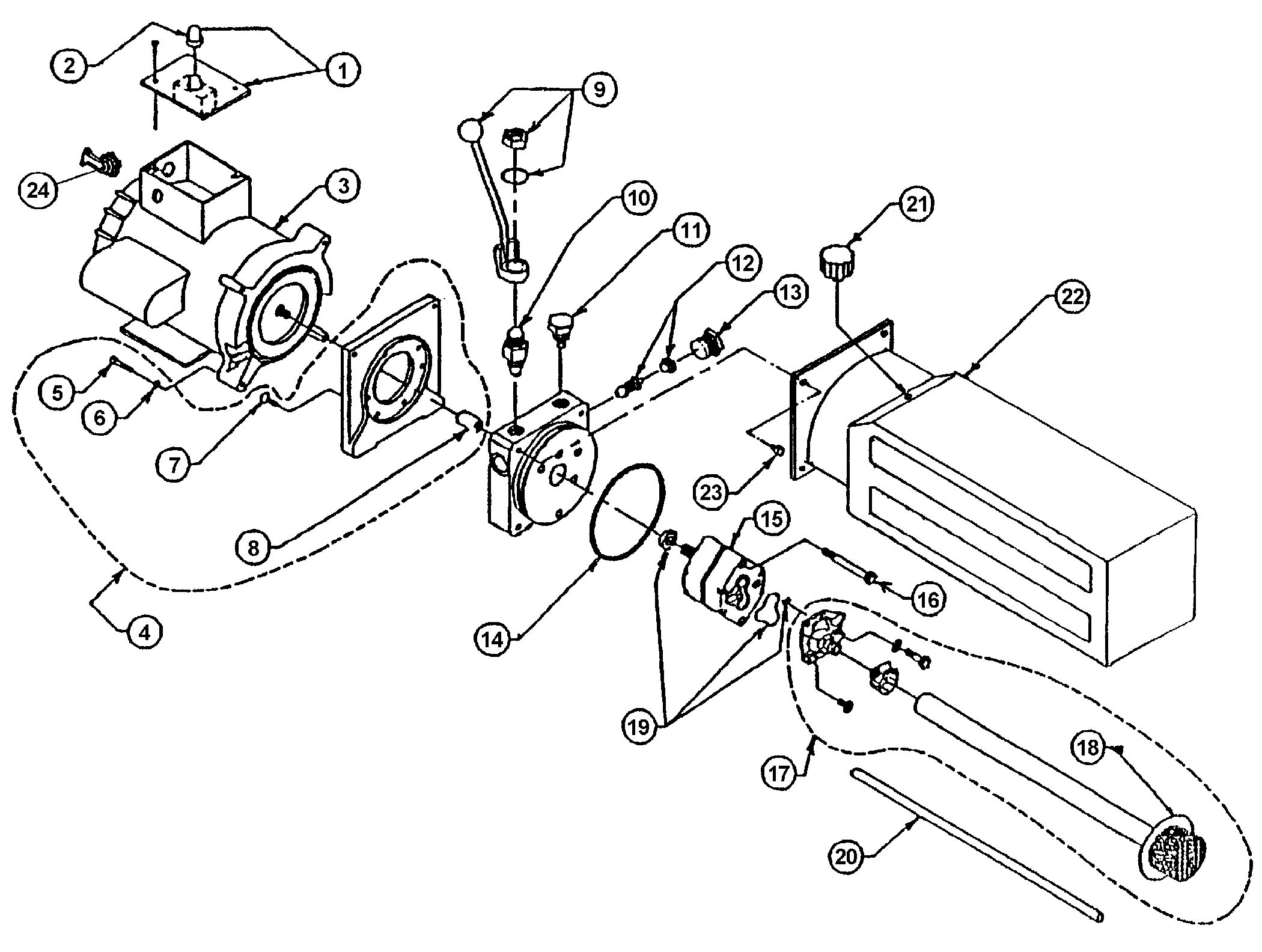

Parts for Wheeltronic 8144V Power Pack

Above Ground / Surface Mount 2-Post Lifts – Wheeltronic – 8144V

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
6-0881
1
Microswitch

2
6-1804
1
Microswitch Boot

3
6-0773
1
Motor 230 Vac., 1 PH., 60 Hz.

4
0-0197
1
Motor Adapter Kit

5
Request Details
6-1085
4
Skt. Hd. Capscrew. 1/4" x 5/8"

6
6-0056
4
Lock Washer, 1/4"

7
6-1086
4
Allen Hd. Ft. Scw. 1/4" x 3/4"

8
6-0774
1
Coupling

9
6-0776
1
Release Bracket & Handle Assembly

10
6-0880
1
Valve Cartridge Release

11
6-1087
1
Valve Cartridge Check

12
6-1317
1
Fixed Relief Valve, RV 17

13
6-1089
1
Relief Valve Cap

14
6-0875
1
Reservoir "O" Ring

15
6-0782
1
Pump Assembly

16
6-1090
2
Pump Mounting Bolt

17
0-0198
1
Inlet Plumbing Kit

18
6-0786
1
Inlet Hose/Filter Assembly

19
0-0199
1
Pump "O" Ring Kit

20
6-0783
1
Return Tube

21
6-1376
1
Breather-Filler Cap (Plastic)

22
6-1399
1
Reservoir (Plastic)

23
6-1091
4
Reservoir Screw

24
6-1133
1
Cable Connector, 90°, 3/8"
