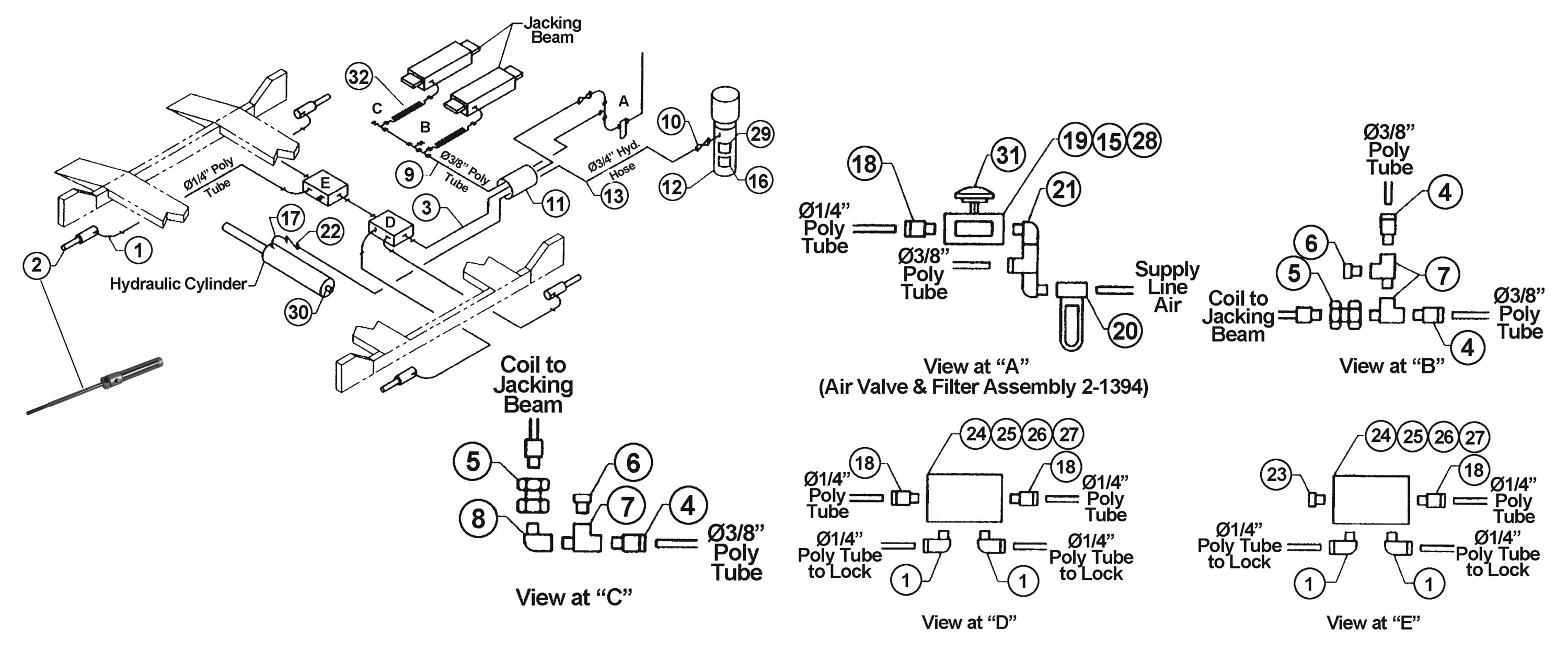

Parts for Wheeltronic 18405AF Kodiak Hydraulic and Air Kit

Above Ground / Surface Mount 4-Post Lifts – Wheeltronic – 18405AF

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7802-31
6-0709
8
90° Elbow, 1/8" NPT x 1/4" Poly Tube
View
2
BH-7798-03
6-0651
4
Air Cylinder
View
3
BH-7804-15
6-1396
10'
1/4" Poly Tube
View
4
BH-7802-32
6-0710
3
Adpt., 3/8" Poly Tube x 1/4" NPT
View
5
BH-7802-33
6-0713
2
Terminal Bolt, 3/4"
View
6
BH-7801-31
6-0282
2
Plug, 1/4" NPT
View
7
BH-7800-62
6-0014
3
1/4" NPT Street Tee
View
8
BH-7800-63
6-0015
1
1/4" NPT Street Elbow
View
9
BH-7804-18
6-1400
10'
3/8" Poly Tube
View
10
BH-7804-53
6-1691
1
Flow Control
View
11
BH-7802-34
6-0714
4'
Hose Guard
View
12
BH-7804-55
6-1695
1
Power Pack 230V/1PH
View
13
BH-7804-54
6-1692
1
Hyd. Hose Assy., 3/8" JIC F, 16'
View
14
BH-7802-41
6-0731
3
Cable Tie
View
15
Request Details
6-1095
2
Hex Nut, #8-32
16
BH-7805-100
6-0594
1
Notice Decal
17
BH-7802-67
6-0796
1
90° Elbow, 1/4" NPT M x 3/8" NPT F
View
18
BH-7802-30
6-0708
3
Adpt, 1/4" Poly Tube x 1/8" NPT
View
19
BH-7805-119
6-1685
1
Air Valve
20
BH-7801-13
6-0180
1
Air Filter
View
21
BH-7790-86
0-0405
1
Air Valve Fitting Kit
View
22
BH-7804-50
6-1684
1
Velocity Fuse, 8 GPM
View
23
BH-7801-14
6-0182
1
Plug, 1/8" NPT
View
24
BH-7792-65
1-1057
2
Manifold
View
25
F-HC-0250-20-2000
6-0177
4
Hex Hd. Bolt, 1/4"-20 x 2"
View
26
F-HN-0250-20
6-0032
4
Hex Nut, 1/4"-20
View
27
F-LW-0250
6-0056
4
Lock Washer, 1/4"
View
28
Request Details
6-1094
2
Phil. Hd. Screw, #8-32 x 1"
29
BH-7805-118
6-0593
1
Lift Operation Decal
30
BH-7801-30
6-0280
1
Adpt., 1/8" NPT M x 1/4" JIC M
View
31
BH-7805-120
0-0406
1
Air Valve Pushbutton Kit
32
BH-7798-06
6-0337
1
Recoil Hose
View
*
BH-7795-77
2-1394
1
Air Valve & Filter Assembly
View
