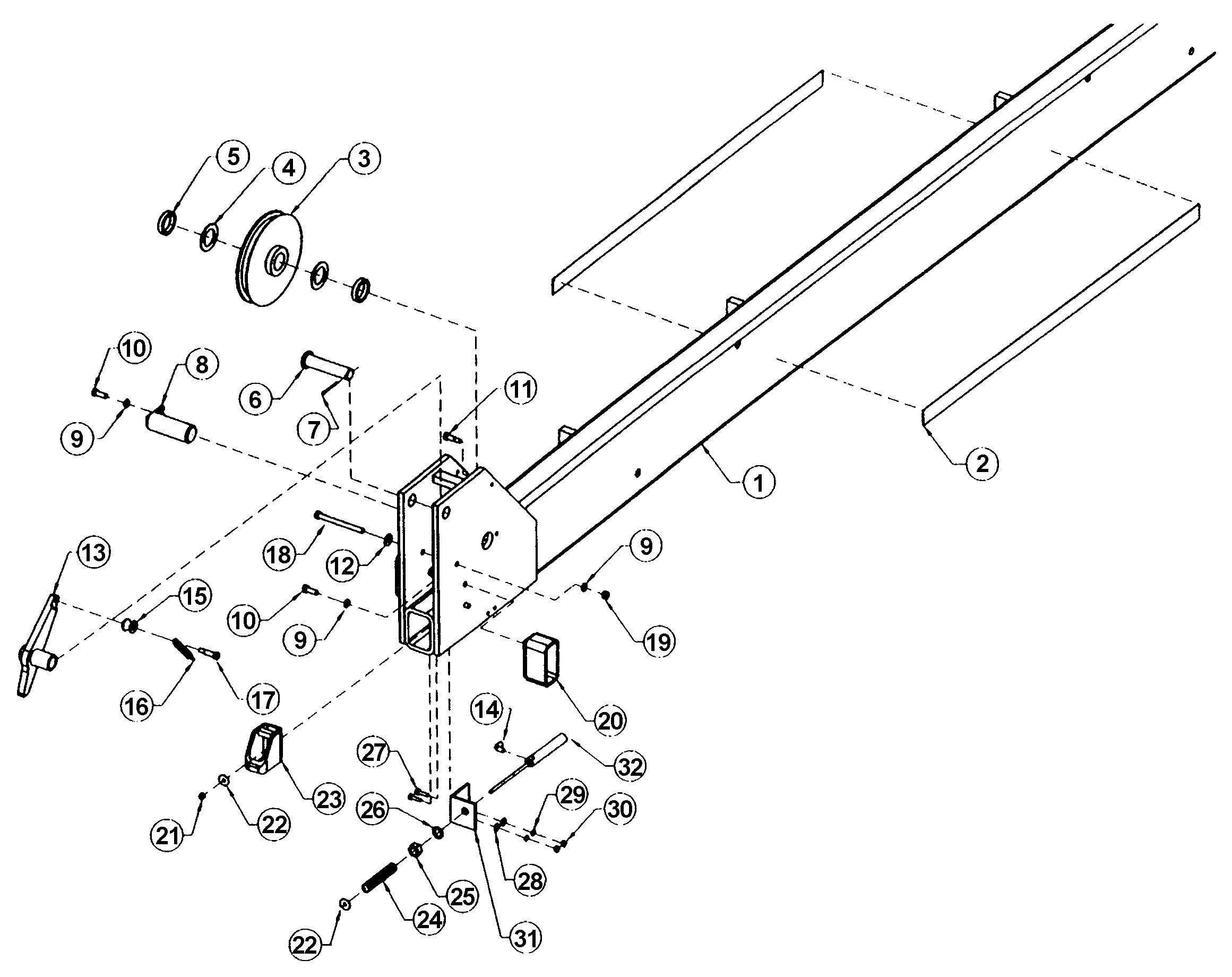

Parts for Wheeltronic 18405AF Kodiak Crossmember Assembly

Above Ground / Surface Mount 4-Post Lifts – Wheeltronic – 18405AF

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7800-15
4-0627
1
Front Crossmember
View
2
BH-7805-46
6-1125
2
Caution Tape, 40"
View
3
BH-7795-72
2-1377
2
Sheave Assembly
View
4
BH-7792-15
1-0757
4
Nylon Thrust Washer
View
5
BH-7792-24
1-0786
4
Sheave Spacer, 3/8"
View
6
BH-7793-30
1-1744
2
Lock Safety Pin
View
7
BH-7798-76
6-0115
2
Cotter Pin, 1/8" x 2"
View
8
BH-7795-66
2-1356
2
Crossmember Sheave Pin
View
9
F-LW-0375
6-0058
12
Lock Washer, 3/8"
View
10
F-HC-0375-16-1000
6-0668
10
Hex Bolt, 3/8"-16 x 1"
View
11
Request Details
6-0729
2
Shoulder Bolt, 3/8" x 3/4"
12
F-FW-0375-USS
6-0625
2
Flat Washer, 3/8"
View
13
BH-7795-78
2-1424
2
Lock Safety
View
14
BH-7802-31
6-0709
2
90° Elbow, 1/8" NPT x 1/4" Polytube
View
15
BH-7790-32
1-0766
2
Cable Roller
View
16
BH-7792-19
1-0768
2
Tension Spring
View
17
BH-7791-08
6-0606
2
Shoulder Bolt, 3/8" x 1"
View
18
F-HC-0375-16-4500
6-1693
2
Hex Bolt, 3/8"-16 x 4-1/2"
19
F-HN-0375-16
6-0034
2
Hex Nut, 3/8"-16
View
20
BH-7795-71
2-1376
4
Slider Block
View
21
F-LN-0250-28
6-1563
2
Hex Nylon Locknut, 1/4"-28
22
Request Details
6-0626
4
Fender Washer, 1/4"
23
BH-7795-73
2-1378
2
Safety Shoe Weldment
View
24
BH-7792-18
1-0767
2
Compression Spring
View
25
F-HN-0625-18
6-0662
2
Hex Nut, 5/8"-18
View
26
Request Details
6-0663
2
Int. Tooth Lock Washer, 5/8"
27
F-HC-0250-20-1000
6-0008
4
Hex Bolt, 1/4"-20 x 1"
View
28
F-FW-0250-USS
6-0060
4
Flat Washer, 1/4"
View
29
F-LW-0250
6-0056
4
Lock Washer, 1/4"
View
30
F-HN-0250-20
6-0032
4
Hex Nut, 1/4"-20
View
31
BH-7793-28
1-1712
2
Air Cylinder Bracket
View
32
BH-7798-03
6-0651
2
Air Cylinder
View
