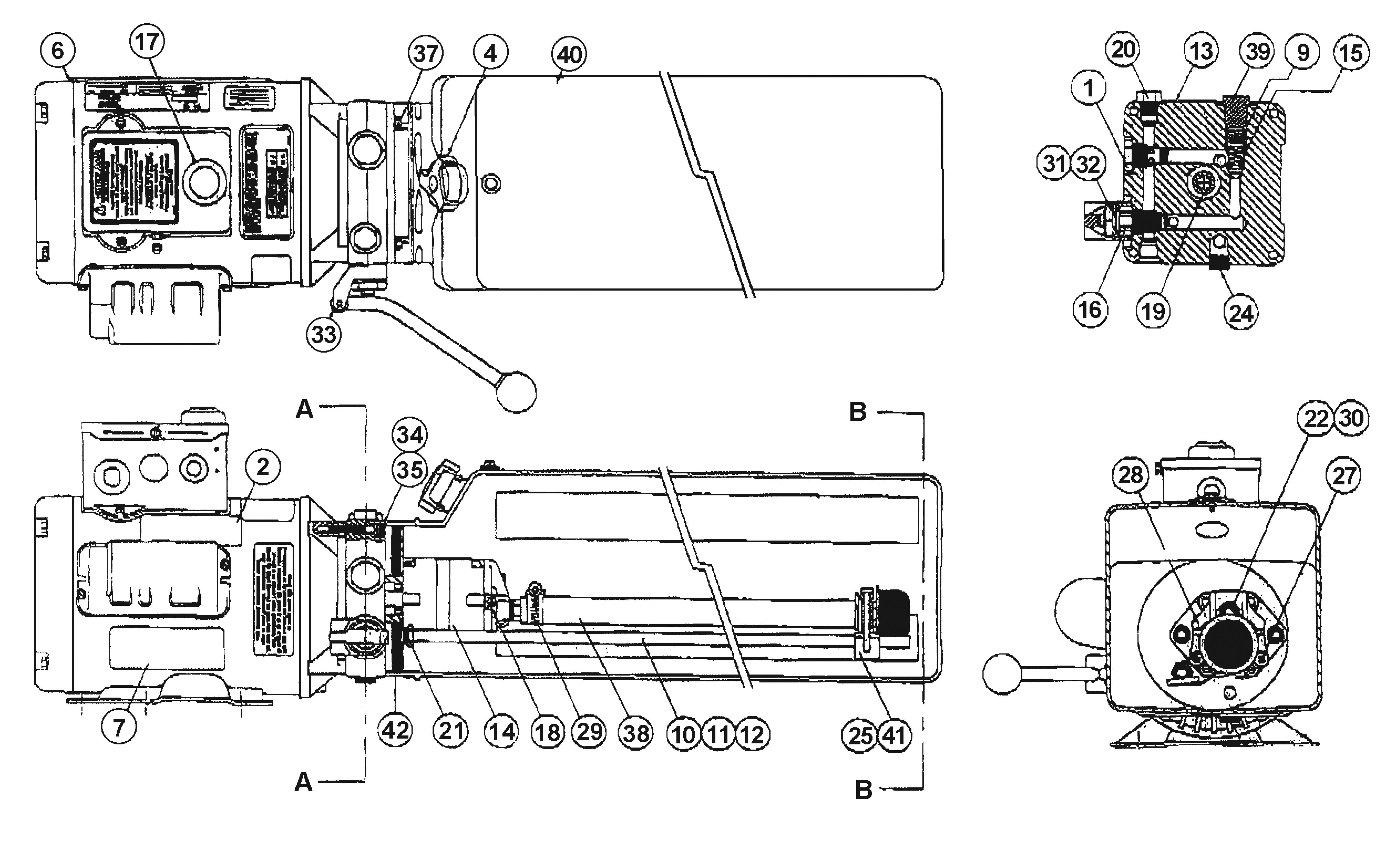

Parts for Wheeltronic 1776S Patriot Power Pack

Above Ground / Surface Mount 2-Post Lifts – Wheeltronic – 1776S

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7803-69
6-1087
1
Valve Cartridge Check
View
2
BH-7805-113
6-2316
1
Label Install. Autohoist
4
BH-7007-92
6-1376
1
Breather Cap & Bladder
View
6
BH-7805-82
6-2139
1
Motor, AC 208-230V, 2 HP/1PH/60 Hz., Blk.
View
7
BH-7805-114
6-2149
1
Label Warning Autohoist
9
BH-7805-83
6-2151
1
Spring, 0.480" x 0.063" x 0.42" Comp.
View
10
BH-7805-84
6-2152
1
Return Hose, 3/8" x 21.5"
View
11
Request Details
6-2153
1
Compression Tube Nut
12
BH-7805-85
6-2154
1
Compression Tube Sleeve
View
13
BH-7805-86
6-2155
1
Endhead Univ. Autohoist
View
14
BH-7805-87
6-1958
1
Pumppassy 2.5 CC/Rev. Short Spline
View
15
BH-7804-05
6-1319
1
Relief Assy. Fixed 190 Bar
View
16
BH-7802-92
6-0880
1
Valve Cart. Rel. Manual
View
17
BH-7805-88
6-2156
1
Wiring Assy. AC 1 PH. Fenner
View
18
BH-7803-72
6-1090
2
Bolt, 5/16"-24 x 3.00" Torx G.8
View
19
BH-7802-54
6-0774
1
Coupling SAE 9T-20/40 1.260"
View
20
BH-7805-89
6-2157
1
Plumbing Plug, 9/16"
View
21
BH-7805-90
6-2158
1
Seal Shaft, 0.500" x 1.00" x 0.25"
View
22
Request Details
6-2159
1
Washer, 0.338" x 0.625" x 0.060" Steel
24
BH-7805-91
6-2161
1
Plumbing Plug, 3/8" NPT
View
25
BH-7805-92
6-2162
1
Plumbing Magnet
View
27
Request Details
6-2164
2
Screw Taplite, M6 x 1.0" 12 MM Torx
28
BH-7805-93
6-2165
1
Cover Assy. Suction
View
29
BH-7805-94
6-2166
1
Plumbing Clamp Hose Adj. Inlet
View
30
Request Details
6-1392
1
Bolt, 5/16"-18 x 1.00" SHCS
31
Request Details
6-2167
1
Nut, 3/4"-16 x 1" HEX x 0.250" Steel
32
Request Details
6-2168
1
Washer, 3/4" Int. Toothlock
33
BH-7802-56
6-0776
1
Bracket handle Assembly. Rel., Blk.
View
34
Request Details
6-2169
4
Bolt, M6 x 1.035 MM Soc. Hd.
35
Request Details
6-2170
4
Washer, 1/4" Lock Hi-Collar
37
BH-7803
6-1091
4
Bolt, #12-24 x 0.50" Hex Wshrhd.
38
BH-7802-64
6-0786
1
Plumbing Assy. Inlet 17.24 (3)
View
39
BH-7803-71
6-1089
1
Release Valve Cap Assembly
View
40
BH-7804-17
6-1399
1
Tank Plastic, 6.7 OS 22.50" Blk.
View
41
BH-7805-01
6-1846
1
White Cable Tie 8"
View
42
BH-7802-87
6-0875
1
O Ring 2-348 BUNA
View
