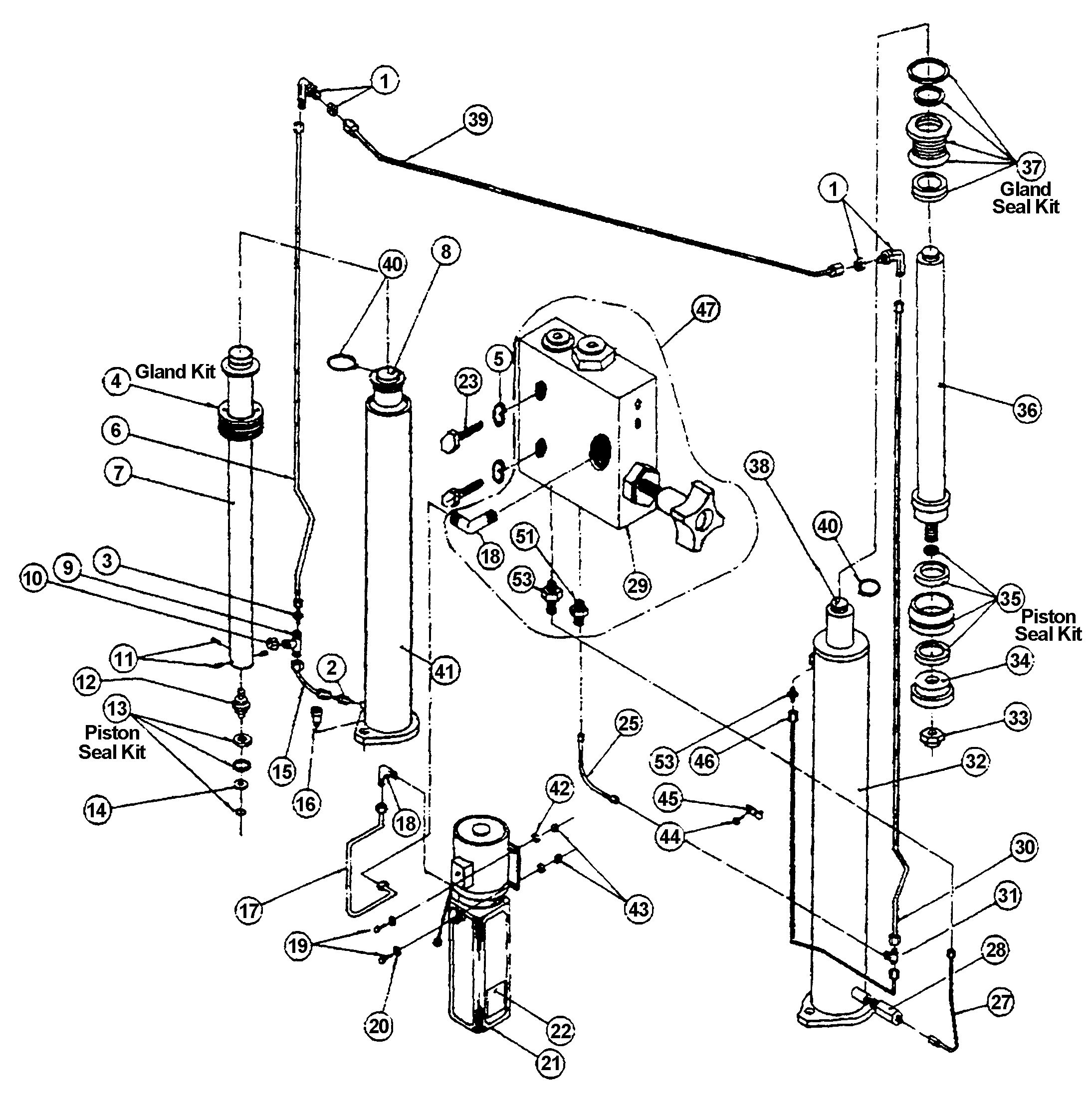

Parts for Wheeltronic 11168VS Hydraulics

Above Ground / Surface Mount 2-Post Lifts – Wheeltronic – 11168VS

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7798-41
6-0012
2
90° Blk Hd., 3/8" JIC-3/8" JIC
View
2
BH-7798-42
6-0345
1
Adpt., 3/8" NPT-3/8" JIC x 2-1/4"
View
3
BH-7798-43
6-0286
1
Union, 3/8" JIC Male
View
4
BH-7790-81
0-0207
1
Gland Seal Kit, R.H.
View
5
F-LW-0250
6-0056
2
Lock Washer, 1/4"
View
6
BH-7795-20
2-1065
1
Hydraulic Tube Assembly
View
7
BH-7794-90
2-0930
1
Piston Tube, R.H.
View
8
BH-7797-08
3-0480
1
Hydraulic Cylinder Assembly, R.H.
View
9
BH-7798-75
6-0284
1
Tee, 3/8" Swivel Nut JIC Male
View
10
BH-7798-59
6-0021
1
Cap. 3/8" JIC
View
11
Request Details
6-0580
3
Allen Hd. Setscrew, 1/4"-20 x 3/8"
12
BH-7794-34
2-0619
1
Piston
View
13
BH-7798-02
0-0159
1
Piston Seal Kit, R.H.
View
14
BH-7792-07
1-0725
1
Keeper Washer
View
15
BH-7791-24
1-0102
1
Hydraulic Tube Assembly
View
16
Request Details
6-0425
2
Shoulder Bolt, 1/2" x 5/8"
17
BH-7795-31
2-1140
1
Hydraulic Tube Assembly
View
18
BH-7798-45
6-0804
2
90° 9/16" SAE M-3/8" JIC M
View
19
F-HC-0312-18-1000
6-0293
4
Hex Bolt, 5/16"-18 x 1"
View
20
F-FW-0312-USS
6-0061
8
Flat Washer, 5/16"
View
21
BH-7798-69
6-1176
1
Power Pack
View
22
BH-7805-101
6-1266
1
Lift Operations Decal
23
F-HC-0250-20-1750
6-0028
2
Hex Hd. Bolt 1/4" 20 x 1-3/4"
View
25
BH-7792-97
1-1341
1
Hydraulic Hose Assembly
View
27
BH-7790-42
2-0886
1
Hydraulic Tube Assembly
View
28
BH-7790-43
6-0422
1
Velocity Fuse, 4 GPM
View
29
BH-7798-47
6-1362
1
Hydraulic Valve Block
View
30
BH-7795-19
2-1064
1
Hydraulic Tube Assembly
View
31
BH-7798-48
6-1372
1
Branch "T" JIC All Ends
View
32
BH-7796-95
3-0428
1
Cylinder Barrel, L.H.
View
33
Request Details
6-0631
1
Uni-Torque Lock Nut 7/8"-9
34
BH-7794-10
2-0521
1
Piston Spigot
View
35
BH-7790-09
0-0160
1
Piston Seal Kit, L.H.
View
36
BH-7794-64
2-0793
1
Piston Rod, L.H.
View
37
BH-7790-80
0-0206
1
Gland Seal Kit, L.H.
View
38
BH-7790-36
4-0289
1
Hydraulic Cylinder Assembly, L.H.
View
39
BH-7795-53
2-1286
1
Hydraulic Tube Assembly
View
40
BH-7798-49
6-0340
2
Circlip
View
41
BH-7794-66
2-0802
1
Cylinder Barrel, R.H.
View
42
F-LW-0312
6-0674
4
Lock Washer, 5/16"
View
43
F-HN-0312-18
6-0294
4
Hex Nut, 5/16"-18
View
44
F-MS-0250-20-0375
6-1353
7
Rnd. Hd. Bolt, 1/4"-20 x 3/8"
View
45
BH-7798-50
6-0170
7
Tube Clamp
View
46
BH-7794-86
2-0887
1
Hydraulic Tube Assembly
View
47
BH-7790-99
6-1389
1
Hydraulic Valve Blk Assy. (C/W Fittings)
View
51
BH-7798-51
6-0281
1
Adpt. 1/4" NPT, M-1/4" JIC M
View
53
BH-7798-52
6-0276
2
Adpt., 1/4" NPT, M-3/8" JIC M
View
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
