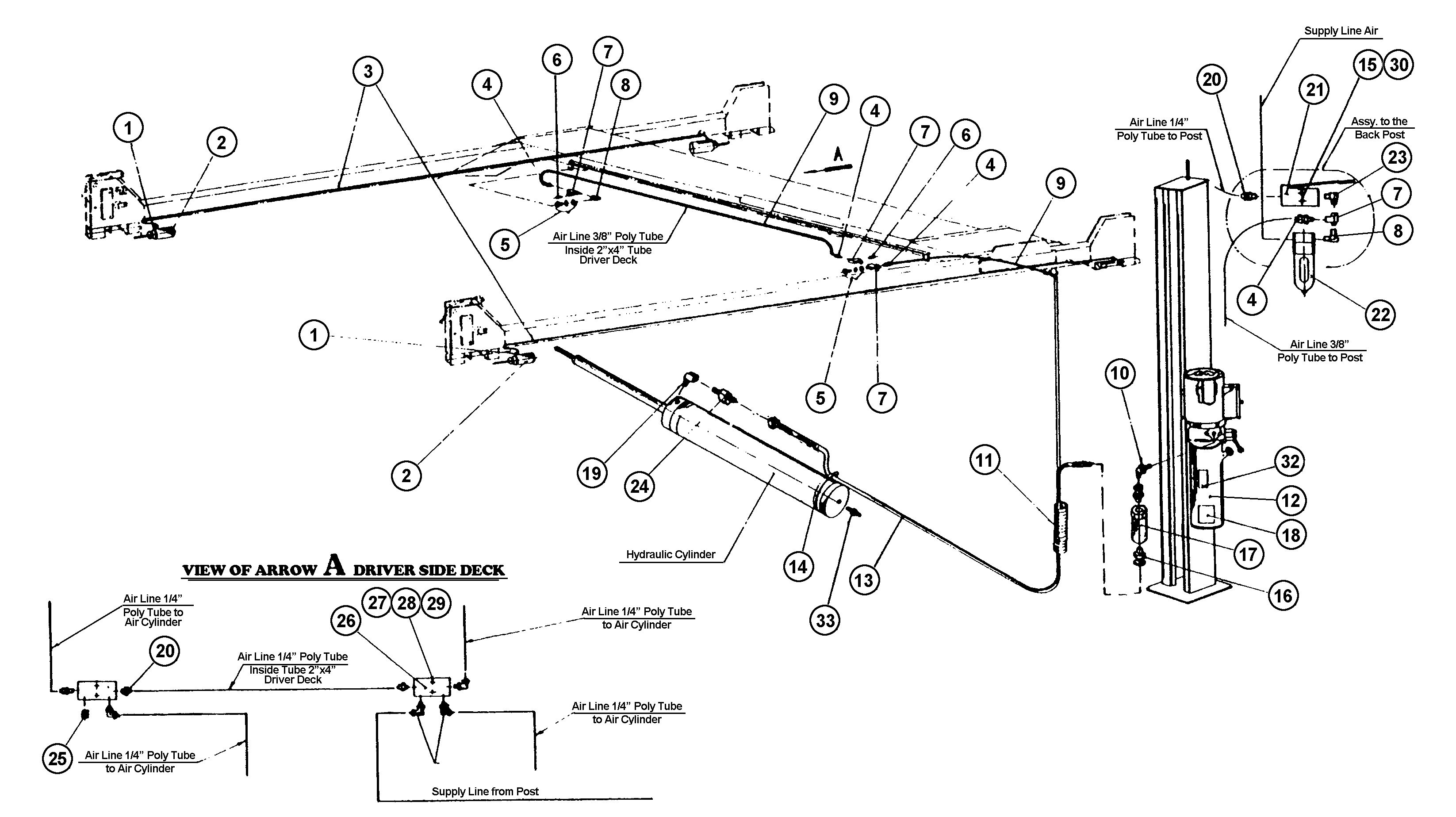

Parts for Wheeltronic 10404 Quad Rack Hydraulics

Above Ground / Surface Mount 4-Post Lifts – Wheeltronic – 10404

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7802-31
6-0709
8
90° Elbow, 1/8" NPT x 1/4" Poly Tube
View
2
BH-7798-03
6-0651
4
Air Cylinder
View
3
BH-7802-28
6-0706
50'
1/4" Poly Tube
View
4
BH-7802-32
6-0710
4
Adapter, 3/8" Poly Tube x 1/4" NPT
View
5
BH-7802-33
6-0713
2
Terminal Bolt, 3/4"
View
6
BH-7801-31
6-0282
2
Plug, 1/4" NPT
View
7
BH-7800-62
6-0014
4
1/4" NPT Street Tee
View
8
BH-7800-63
6-0015
2
1/4" NPT Street Elbow
View
9
BH-7802-29
6-0707
25'
3/8" Dia. Poly Tube
View
10
BH-7798-45
6-0804
1
90° Adapter, 3/8" JIC M x 9/16"-18M
View
11
BH-7802-34
6-0714
4'
Hose Guard
View
12
BH-7801-91
6-0650
1
Power pack, 230V/1PH
View
13
BH-7802-35
6-0715
1
Hydraulic Hose Assembly, 3/8"
View
14
BH-7802-41
6-0731
3
Cable Tie
View
15
Request Details
6-1095
2
Hex Nut, #8-32
16
BH-7802-68
6-0797
2
Adapter, 3/8" NPT M x 3/8" JIC F Swivel
View
17
BH-7800-74
6-0090
1
Flow Control
View
18
BH-7805-100
6-0594
1
Notice Decal
19
BH-7802-67
6-0796
1
90° Elbow, 1/4" NPT M x 3/8" NPT F
View
20
BH-7802-30
6-0708
4
Adapter, 1/4" Poly Tube x 1/8" NPT
View
21
BH-7802-36
6-0717
1
Air Valve
View
22
BH-7801-13
6-0180
1
Air Filter
View
23
BH-7802-37
6-0718
1
90° Reducer, 1/4" NPT M x 1/8" NPT F
View
24
BH-7790-20
6-0025
1
Velocity Fuse
View
25
BH-7801-14
6-0182
1
Plug, 1/8" NPT
View
26
BH-7792-65
1-1057
2
Manifold
View
27
F-HC-0250-20-1500
6-0205
4
Hex. Hd. Capscrew, 1/4"-20 x 1-1/2"
View
28
F-HN-0250-20
6-0032
4
Hex Nut, 1/4"-20
View
29
F-LW-0250
6-0056
4
Lock Washer, 1/4"
View
30
Request Details
6-1094
2
Phil. Hd. Screw, #8-32 x 1"
32
BH-7805-118
6-0593
1
Lift Operation Decal
33
BH-7801-30
6-0280
1
Adapter, 1/8" NPT M x 1/4" JIC M
View
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
