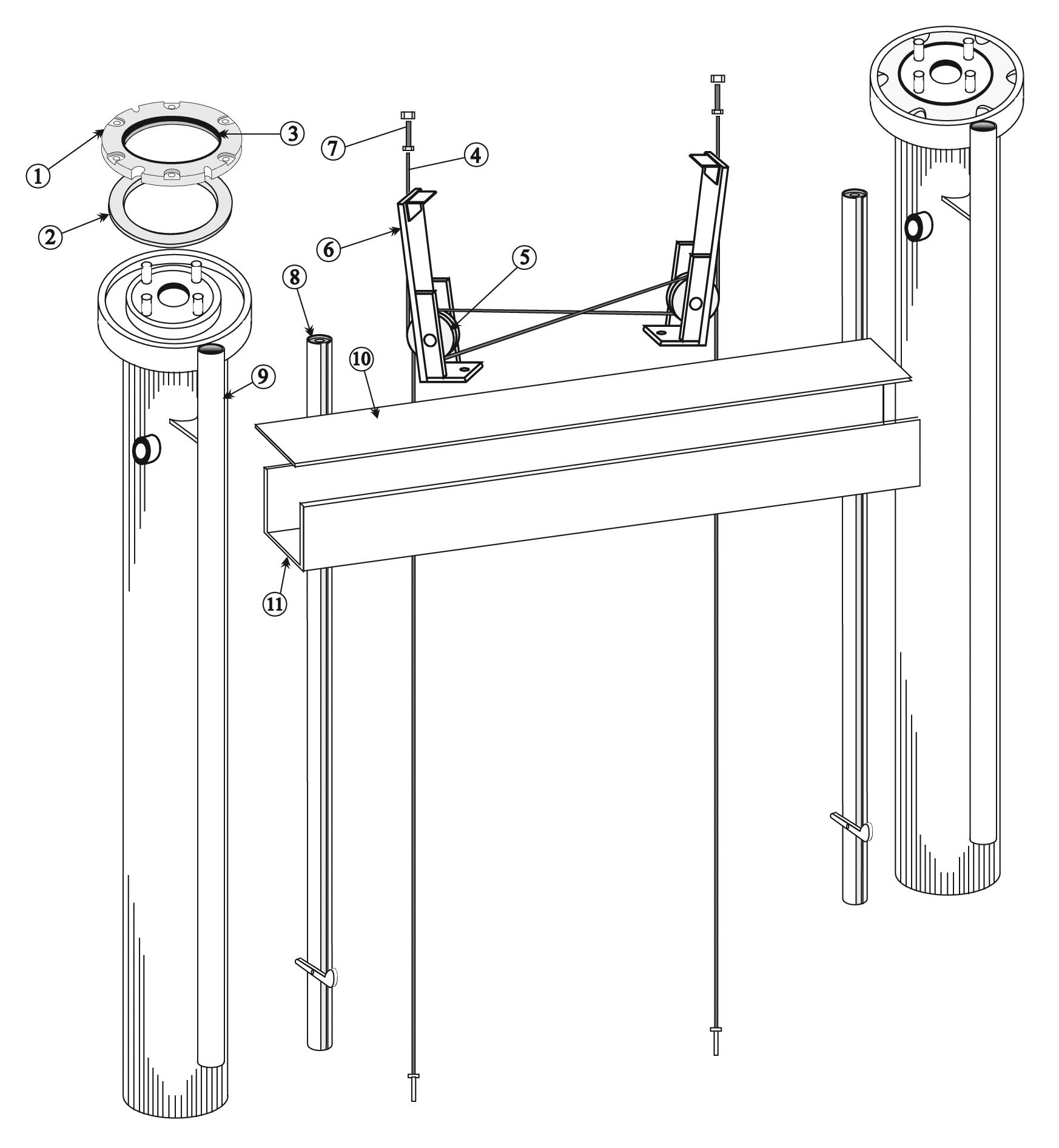

Parts for Western Hoist WP-2 After June 1985

In Ground Side by Side Lifts – Western – WP-2

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
U-220
2
Aluminum Packing Gland

2
BH-1778-2Blue
U-215
2
Blue Style Packing Kit

2
BH-1778-2Black
U-216
2
Black Style Packing Kit

3
U-232
2
Rubber Wiper

4
F-602
2
134" Eq. Cable for WP-2

4
F-607
2
109" Eq. Cable for P-2

5
F-617
2
Pulley, Axle Ass'y.

6
F-645
2
Pulley Bracket

7
F-820
2
7/16" Cable Cap Screw

7
F-285
2
7/16" Cable Nut

8
U-606
2
Equalizer Strut

9
BH-9702-06
U-601
2
Equalizer Strut Housing

10
F-510
1
Pulley Box Cover for WP-2

10
BH-9702-08
F-515
1
Pulley Box Cover for P-2

11
F-530
1
Pulley Box for WP-2, AR-2

11
F-535
1
Pulley Box for P-2

WP-2 and AR-2 have 57-1/2" Piston Centers. P-2 has 33" Piston Centers.

Note: SVI In-Ground Equalizer Cables for Western Lifts are Constructed Using Stainless Steel Wire Rope and Carbon Steel End Fittings.

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
